Specifications and Site Requirements
Electrical Specifications
160 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

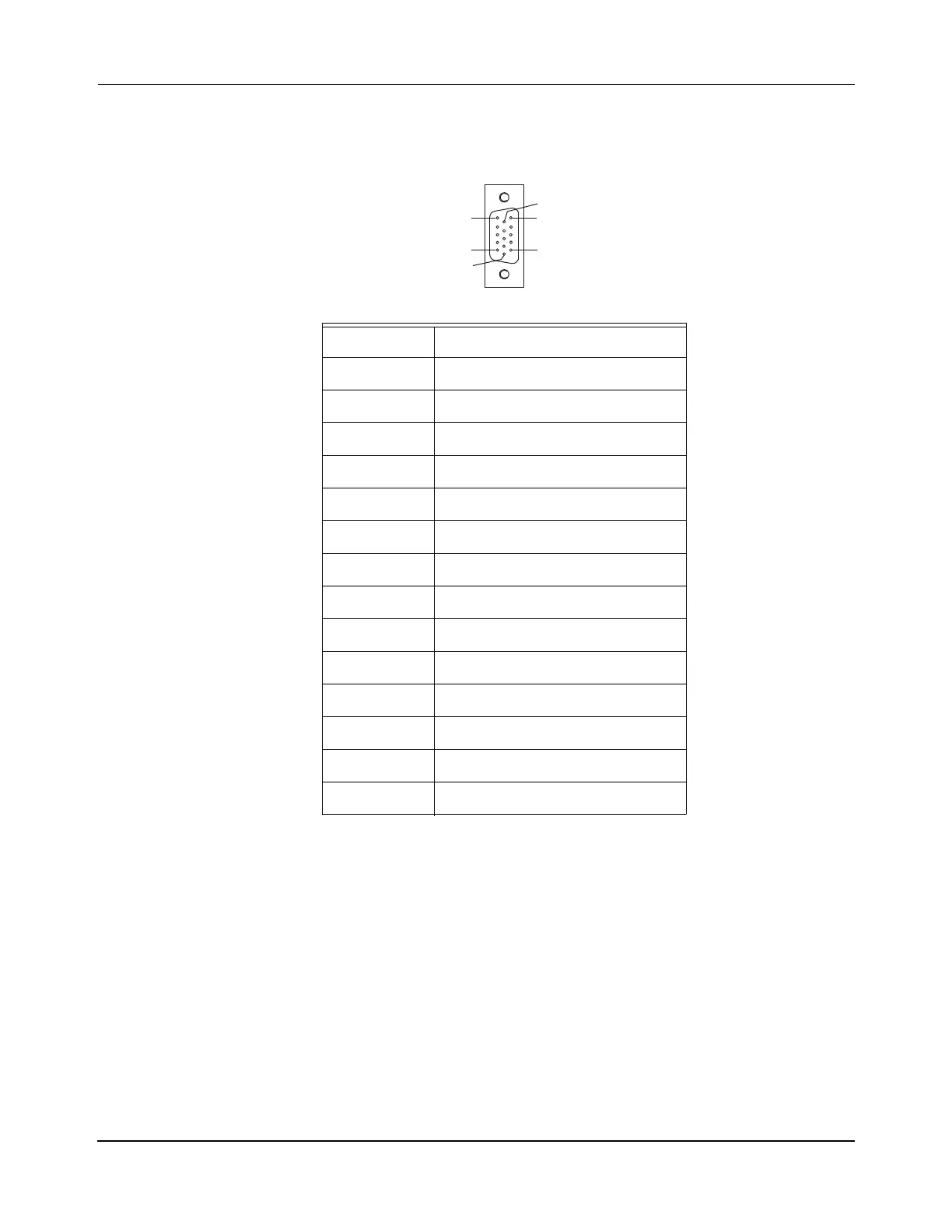

Table 4-41: QSHT 5700 Inverter Digital Input Connector Pinout
*
* Use 2198-K57CK-D15M universal feedback kit to
support connecting discrete wires to this connector,
see Digital I/O on page 201.
1 Digital In Common
2 Digital In Common
3 No Connect
4 Digital In 1
5 Digital In 2
6 Digital In 3
7 Digital In 4
8 Digital In Common
9 Digital In Common
10 No Connect
11 No Connect
12 Digital In 4
13 Digital In 3
14 Digital In 2
15 Digital In 1
Pin 11
Pin 6
Pin 15
Pin 1
Pin 10
Pin 5
