Specifications and Site Requirements
Electrical Specifications
152 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
QSMC HVDC Power Cable
A 2 m long HVDC Power cable is available for the QSMC motor controllers, which provides
stator power to the motor controller. Contact MagneMotion for replacement cables. The
HVDC Power cable connects directly to the HVDC power bus. Each wire in the cable is
color-coded for identification.

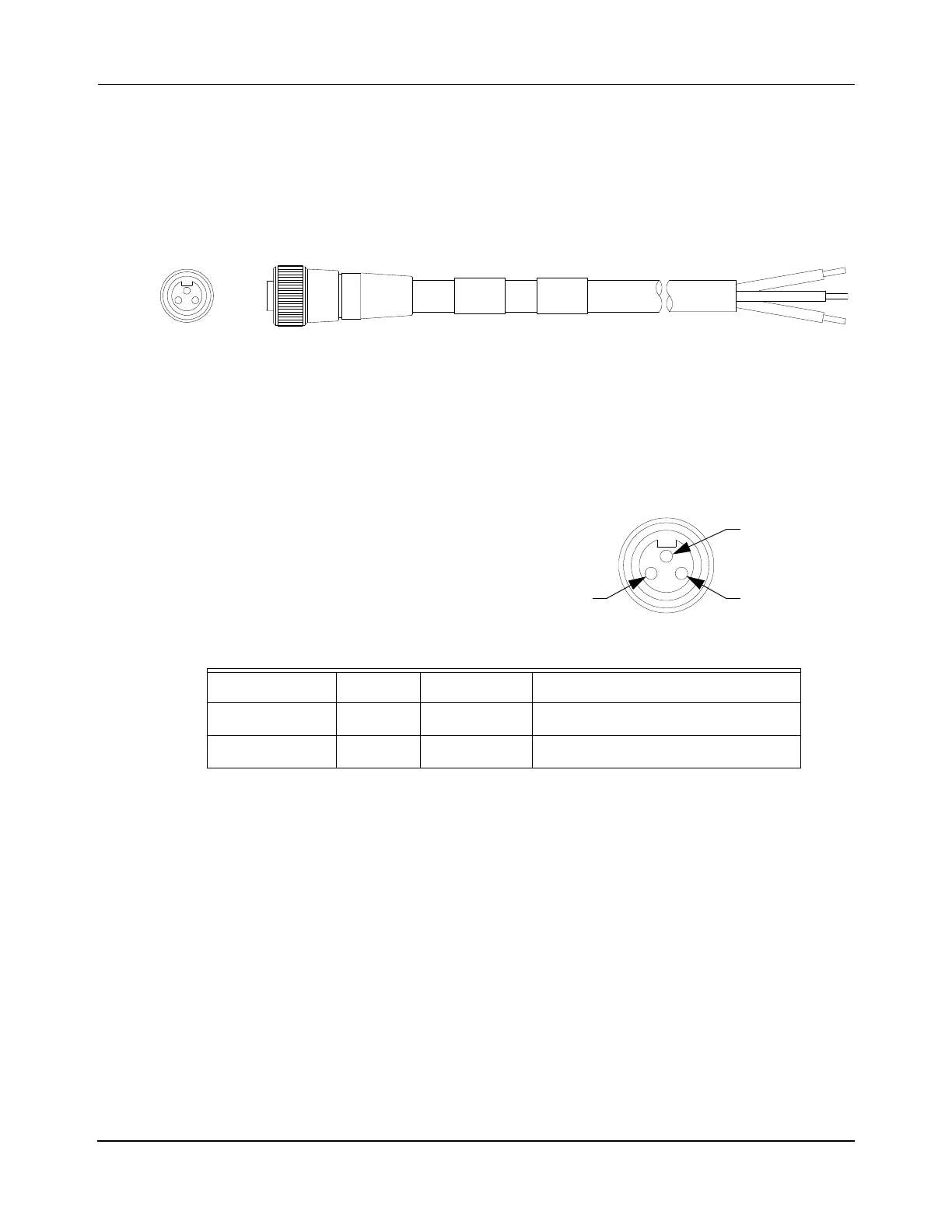

Figure 4-18: QSMC HVDC Power Cable
Table 4-30: QSMC HVDC Power Cable Pinouts
Wire
Gauge
Individual
Terminals Powerfast, 3-Pin, Female
GND/SHIELD 14 AWG Grn 1
PWR RTN 14 AWG Blk 2
PWR HI 14 AWG Wht 3
Motor Controller Power Distribution
100-2384-00
