Design Guidelines
Transport System Design
QuickStick HT User Manual 69
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

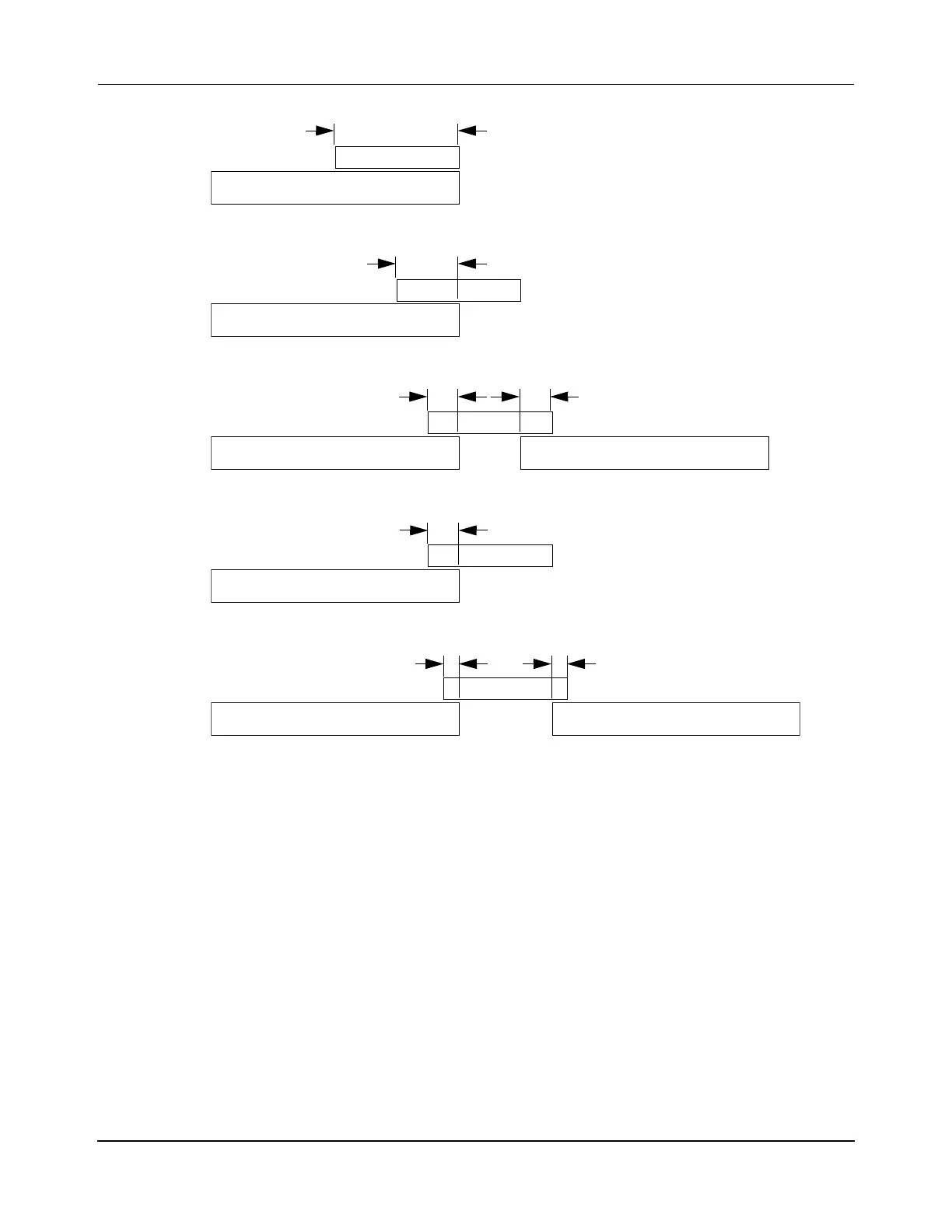

Figure 3-7: Available Thrust Examples
Required Thrust
Several variables determine the thrust that is required to move a vehicle:
• Required acceleration.
• Mass to be moved.
• Friction or drag between the vehicle and the guideway.
100% Thrust
50% Thrust
50% Thrust
25% Thrust
100% Coverage
50% Coverage
25% Coverage 25% Coverage
25% Thrust
12.5% Coverage 12.5% Coverage
25% Coverage
