Rockwell Automation MMI-HT-C2198-D032 User Manual

Specifications and Site Requirements
Electrical Specifications
140 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

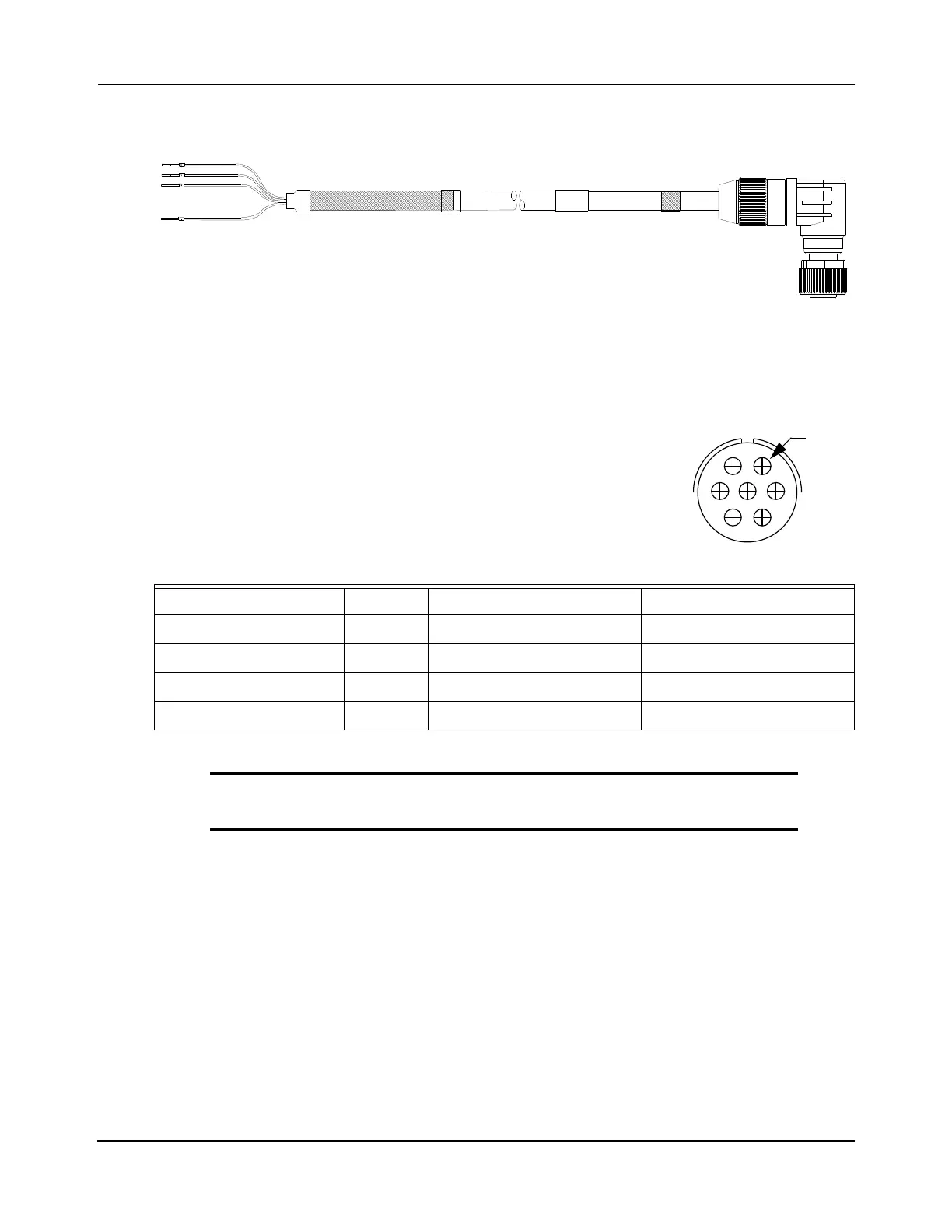

Figure 4-14: 1/2 m QSHT 5700 Inverter to Stator Drive Cable
Table 4-10: 1/2 m QSHT 5700 Inverter to Stator Drive Cable Pinouts
Wire
Gauge Inverter Motor
Stator Block 1, Phase A 16 AWG U A
Stator Block 1, Phase B 16 AWG V B
Stator Block 1, Phase C 16 AWG W C
Gnd 16 AWG PE G
Shield BRAID Exposed Braid Shell
NOTICE Modifications to the MMI motor to inverter cables, or using
custom cables, violates the UL conditions of acceptability.
Motor
Inverter
MMI-HT-CBP05-xx
G
A
B
CD
E
F
A
