Rockwell Commander 112 - TROUBLE-SHOOTING

ROCKWELL
COMMANDER
112/B/TC/TCA
MAINTENANCE MANUAL
SECTION V
FUEL SYSTEM
FUEL OUTLET TUBE
o
o
o

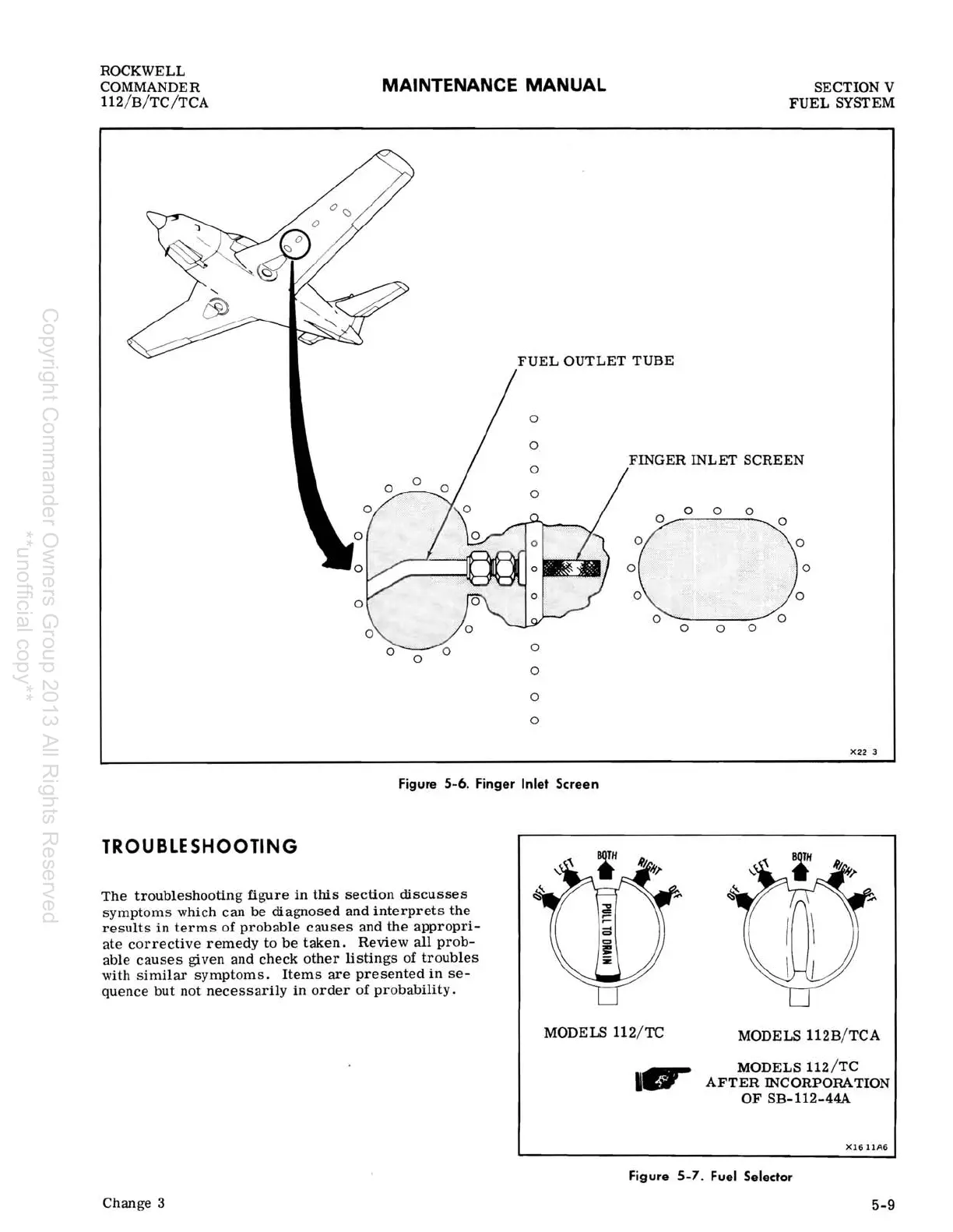

Figure 5-6. Finger Inlet Screen
TROUBLESHOOTING
The troubleshooting figure in this section discusses
symptoms which can be diagnosed and interprets the
results in terms of probable causes and the appropri-
ate corrective remedy to be taken. Review all prob-
able causes given and check other listings of troubles
with similar symptoms. Items are presented in se-
quence but not necessarily in order of probability.
FINGER INLET SCREEN
o 0 0
X22 3
MODELS 112/TC
MODELS 112B/TCA
MODELS 112/TC
AFTER INCORPORATION
OF SB-112-44A
X1611A6
Figure 5-7. Fuel Selector
Change 3
5-9
