SECTION n
SERVICING
MAINTENANCE MANUAL
ROCKWELL
COMMANDER
112/B/TC/TCA
AND
INSPECTION
4
0-
12
6
1.
VERTICAL STABILIZER STUD
ASSY
2. DORSAL FAIRING
3.
HORIZONTAL STABILIZER
TIP
FAIRING
4.
ELEVATOR
5. VERTICAL STABILIZER
ASSY
6. VERTICAL STABILIZER
CAP
7. RUDDER
8.
ELEVATOR TRIM TAB
9.
HORIZONTAL
STABIIJZER
10. RUBBER GAP SEAL
11. STINGER
ASSY
12. RUDDER
TIP
ASSEMBLY
X227

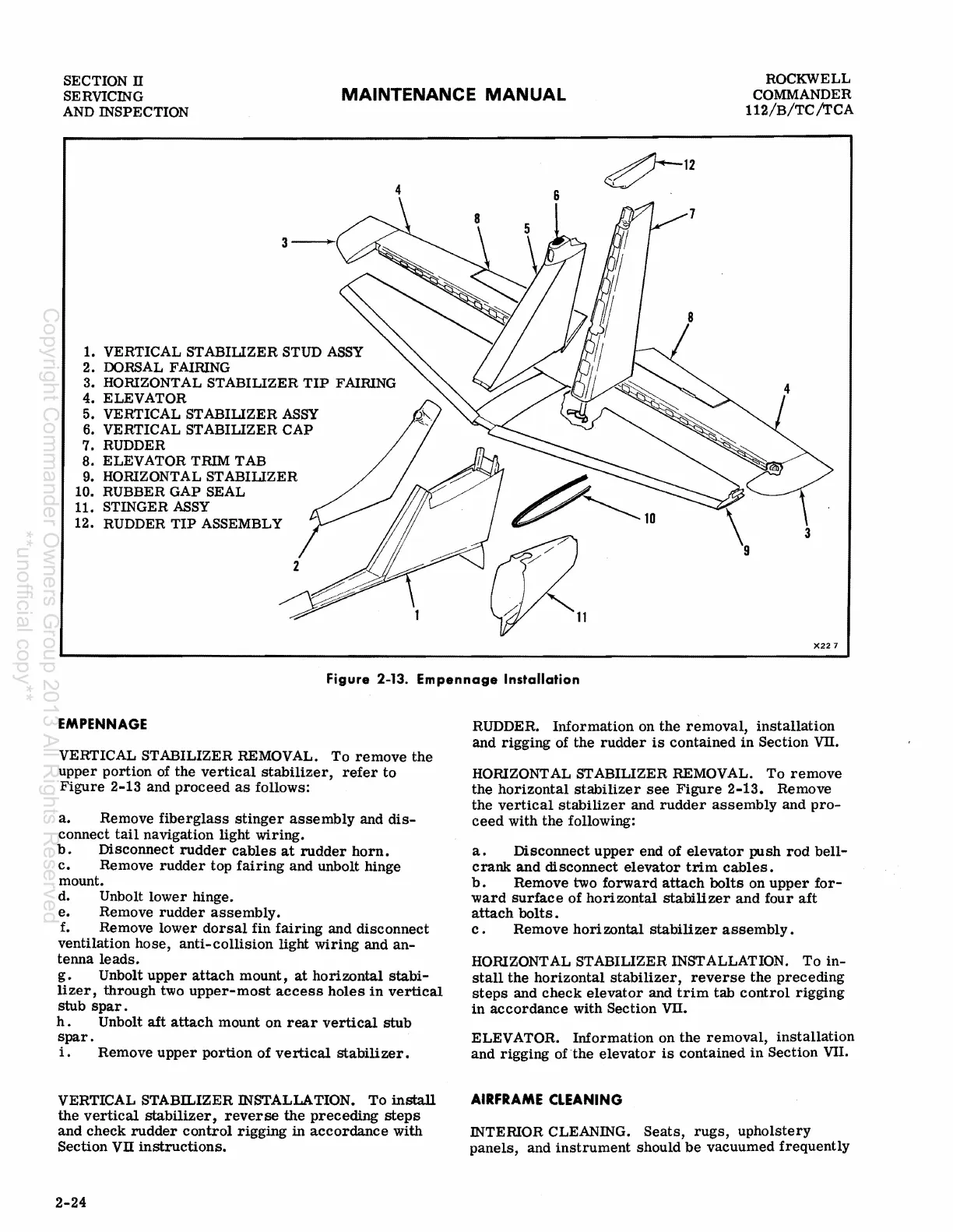

Figure 2-13. Empennage Installation
EMPENNAGE
VERTICAL STABILIZER REMOVAL.
To
remove
the
upper
portion
of
the
vertical
stabilizer,
refer
to
Figure
2-13
and
proceed
as
follows:
a.
Remove
fiberglass
stinger
assembly
and
dis-
connect
tail
navigation
light
wiring.
b.
Disconnect
rudder
cables
at
rudder
horn.
c.
Remove
rudder
top
fairing
and
unbolt hinge
mount.
d.
Unbolt
lower
hinge.
e.
Remove
rudder
assembly.
f. Remove
lower
dorsal
fin
fairing
and
disconnect
ventilation
hose,
anti-collision
light
wiring
and
an-
tenna
leads.
g.
Unbolt
upper
attach
mount,
at
horizontal
stabi-
lizer,
through
two
upper-most
access
holes
in
vertical
stub
spar.
h.
Unbolt
aft
attach
mount
on
rear
vertical
stub
spar.
i.
Remove
upper
portion
of
vertical
stabilizer.
VERTICAL STABILIZER INSTALLATION.
To
install
the
vertical
stabilizer,
reverse
the
preceding
steps
and
check
rudder
control
rigging
in
accordance
with
Section
vn
instructions.
2-24
RUDDER.
Information
on
the
removal,
installation
and
rigging
of
the
rudder
is
contained
in
Section
vn.
HORIZONT AL STABILIZER REMOVAL.
To
remove
the
horizontal
stabilizer
see
Figure
2-13.
Remove
the
vertical
stabilizer
and
rudder
assembly
and
pro-
ceed
with
the
following:
a.
Disconnect
upper
end
of
elevator
push
rod
bell-
crank
and
disconnect
elevator
trim
cables.
b.
Remove
two
forward
attach
bolts
on
upper
for-
ward
surface
of
horizontal
stabilizer
and
four
aft
attach
bolts.
c.
Remove
horizontal
stabilizer
assembly.
HORIZONTAL
STABIIJZER
INSTALLATION.
To
in-
stall
the
horizontal
stabilizer,
reverse
the
preceding
steps
and
check
elevator
and
trim
tab
control
rigging
in
accordance
with
Section
vn.
ELEVATOR.
Information
on
the
removal,
installation
and
rigging
of
the
elevator
is
contained
in
Section
VII.
AIRFRAME CLEANING
INTERIOR CLEANING.
Seats,
rugs,
upholstery
panels,
and
instrument
should
be
vacuumed
frequently
