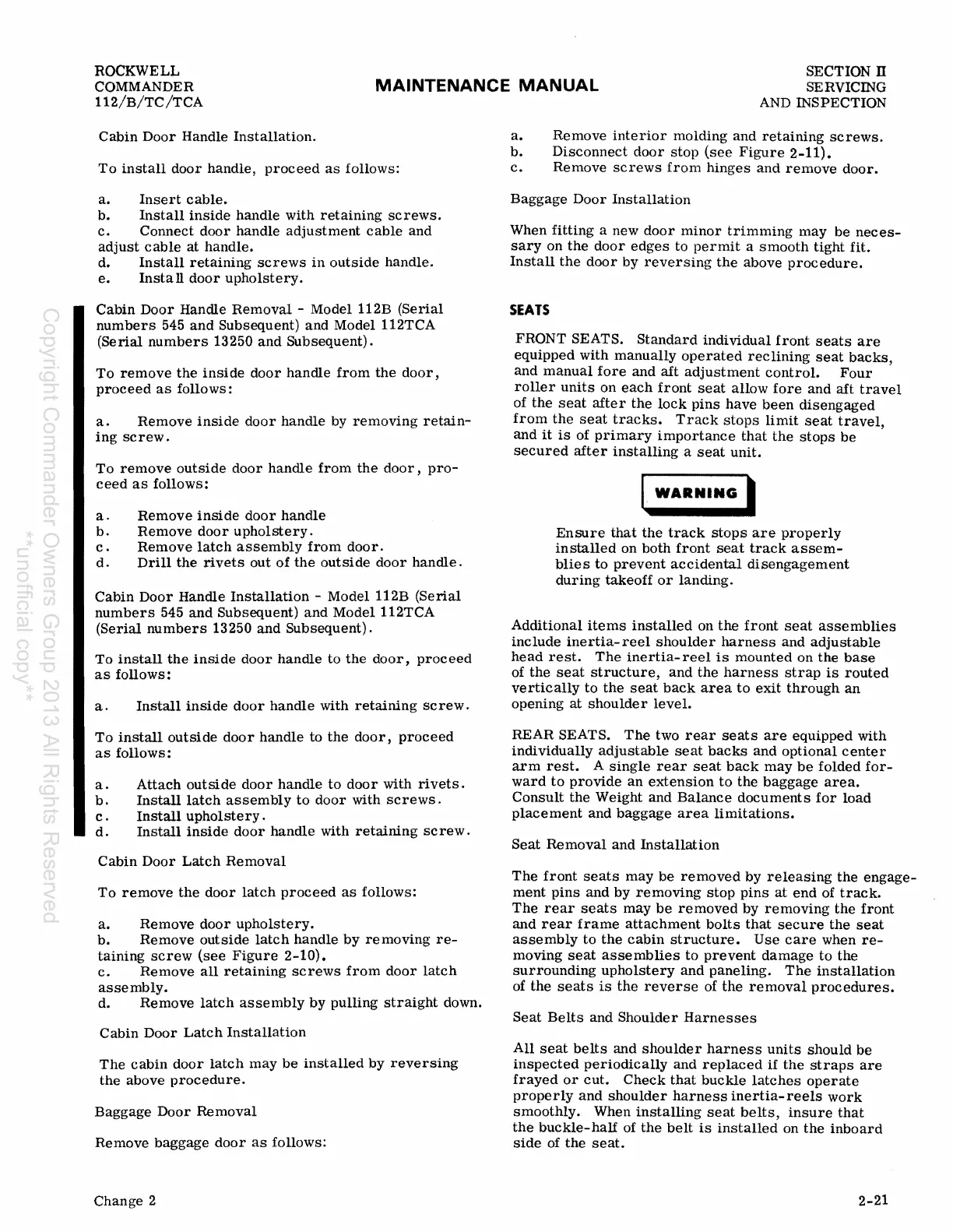

ROCKWELL
COMMANDER
112/B/TC/TCA
MAINTENANCE MANUAL
SECTION n
SERVICING
AND INSPECTION
Cabin Door Handle Installation.
To install door handle, proceed as follows:
a.
Insert cable.
b. Install inside handle with retaining screws.
c. Connect door handle adjustment cable and
adjust cable at handle.
d.
Install retaining screws in outside handle.
e. Insta 11 door upholstery.
Cabin Door Handle Removal - Model 112B (Serial
numbers 545 and Subsequent) and Model 112TCA
(Serial numbers 13250 and Subsequent).
To remove the inside door handle from the door,
proceed as follows:
a. Remove inside door handle by removing retain-
ing screw.
To remove outside door handle from the door, pro-
ceed as follows:
a. Remove inside door handle
b. Remove door upholstery.
c . Remove latch assembly from door.
d. Drill the rivets out of the outside door handle.
Cabin Door Handle Installation - Model 112B (Serial
numbers 545 and Subsequent) and Model 112TCA
(Serial numbers 13250 and Subsequent).
To install the inside door handle to the door, proceed
as follows:
a. Install inside door handle with retaining screw.
To install outside door handle to the door, proceed
as follows:
a. Attach outside door handle to door with rivets.
b. Install latch assembly to door with screws.
c. Install upholstery.
d. Install inside door handle with retaining screw.
Cabin Door Latch Removal
To remove the door latch proceed as follows:
a. Remove door upholstery.
b. Remove outside latch handle by removing re-
taining screw (see Figure 2-10).
c. Remove all retaining screws from door latch
assembly.
d. Remove latch assembly by pulling straight down.
Cabin
Door Latch Installation
The cabin door latch may be installed by reversing
the above procedure.
Baggage Door Removal
Remove baggage door as follows:
Change 2
a.
b.
c.
Remove interior molding and retaining screws.
Disconnect door stop (see Figure 2-11).
Remove screws from hinges and remove door.
Baggage Door Installation
When fitting a new door minor trimming may be neces-
sary on the door edges to permit a smooth tight fit.
Install the door by reversing the above procedure.
SEATS
FRONT SEATS. Standard individual front seats are
equipped with manually operated reclining seat backs,
and manual fore and aft adjustment control. Four
roller units on each front seat allow fore and aft travel
of the seat after the lock pins have been disengaged
from the seat tracks. Track stops limit seat travel,
and it is of primary importance that the stops be
secured after installing a seat unit.
I WARNING I
Ensure that the track stops are properly
installed on both front seat track assem-
blies to prevent accidental disengagement
during takeoff or landing.
Additional items installed on the front seat assemblies
include inertia-reel shoulder harness and adjustable
head rest. The inertia- reel is mounted on the base
of the seat structure, and the harness strap is routed
vertically to the seat back area to exit through an
opening at shoulder level.
REAR SEATS. The two rear seats are equipped with
individually adjustable seat backs and optional center
arm rest. A single rear seat back may be folded for-
ward to provide an extension to the baggage area.
Consult the Weight and Balance documents for load
placement and baggage area limitations.
Seat Removal and Installation
The front seats may be removed by releasing the engage-
ment pins and by removing stop pins at end of track.
The rear seats may be removed by removing the front
and rear frame attachment bolts that secure the seat
assembly to the cabin structure. Use care when re-
moving seat assemblies to prevent damage to the
surrounding upholstery and paneling. The installation
of the seats is the reverse of the removal procedures.
Seat Belts and Shoulder Harnesses
All seat belts and shoulder harness units should be
inspected periodically and replaced if the straps are
frayed or cut. Check that buckle latches operate
properly and shoulder harness inertia-reels work
smoothly. When installing seat belts, insure that
the buckle-half of the belt is installed on the inboard
side of the seat.
2-21
