Rockwell Commander 112 - TROUBLE SHOOTING

I
ROCKWELL
COMMANDER
112/B/TC/TCA
MAINTENANCE MANUAL
SECTION vn
FLIGHT CONTROLS
MODELS
112B/TC/TCA
AILERON-RUDDER
INTERCONNECT
CABLE ASSEMBL!Y.!iS~~?/
RUDDER
CONTROL
CABLES
WING TRUSS
ASSEMBLY
X'27 Jfi

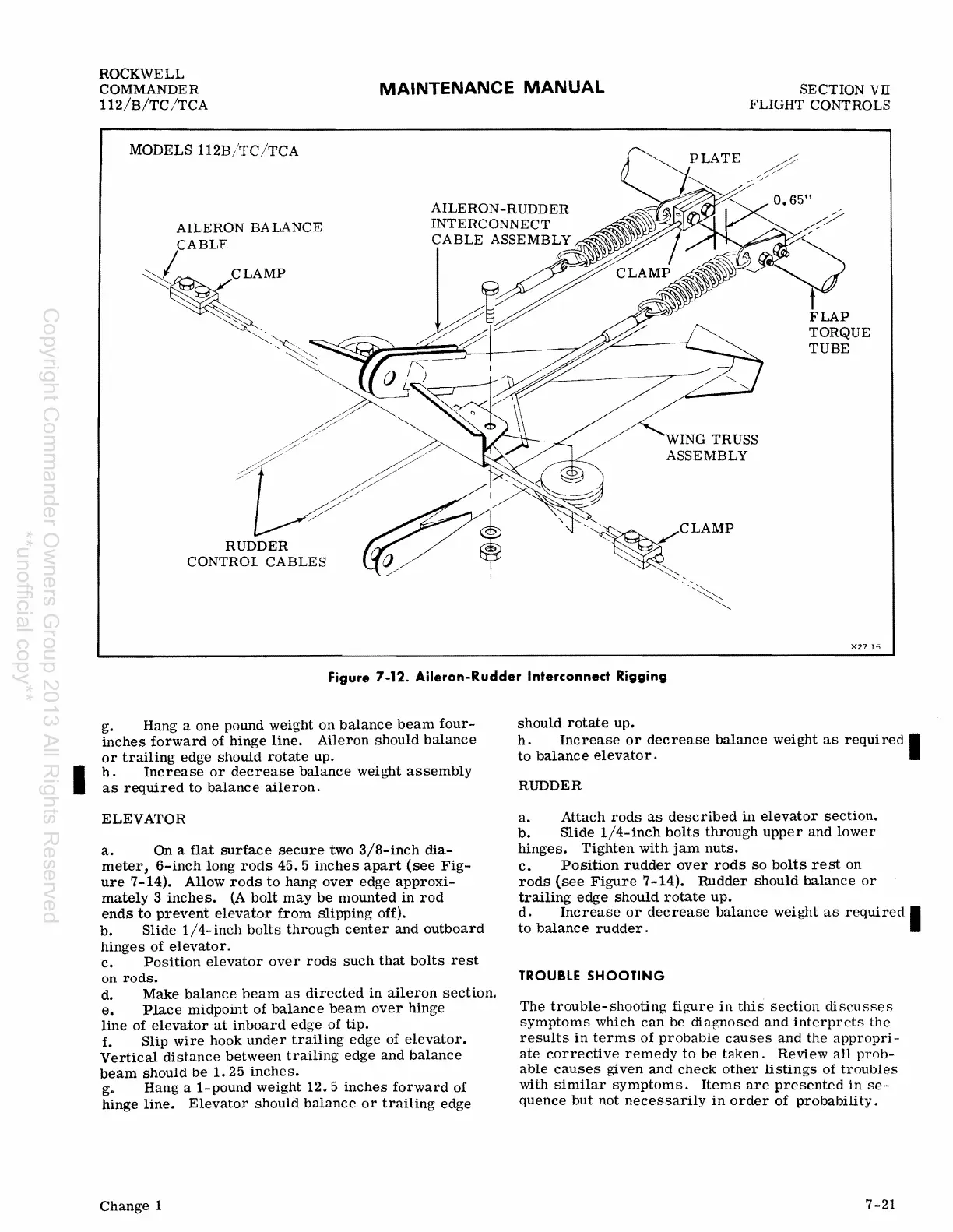

Figure 7-12. Aileron-Rudder Interconnect Rigging
g. Hang a one pound weight on balance beam four-
inches forward of hinge line. Aileron should balance
or trailing edge should rotate up.
h. Increase or decrease balance weight assembly
as required to balance aileron.
ELEVATOR
a. On a flat surface secure two 3/8-inch dia-
meter, 6-inch long rods 45.5 inches apart (see Fig-
ure 7-14). Allow rods to hang over edge approxi-
mately 3 inches. (A bolt may be mounted in rod
ends to prevent elevator from Slipping off).
b.
Slide 1/4- inch bolts through center and outboard
hinges of elevator.
c. Position elevator over rods such that bolts rest
on rods.
d. Make balance beam as directed in aileron section.
e. Place midpoint of balance beam over hinge
line of elevator at inboard edge of tip.
f. Slip wire hook under trailing edge of elevator.
Vertical distance between trailing edge and balance
beam should be 1. 25 inches.
go Hang a I-pound weight 12.5 inches forward of
hinge
line. Elevator should balance or trailing edge
Change 1
should rotate up.
h. Increase or decrease balance weight as required I
to balance elevator.
RUDDER
a. Attach rods as described in elevator section.
b. Slide 1/4-inch bolts through upper and lower
hinges. Tighten with jam nuts.
c. POSition rudder over rods so bolts rest on
rods (see Figure 7-14). Rudder should balance or
trailing edge should rotate up.
d. Increase or decrease balance weight as required I
to balance rudder.
TROUBLE SHOOTING
The trouble-shooting figure in this section discusses
symptoms which can be diagnosed and interprets the
results in terms of probable causes and the appropri-
ate corrective remedy to be taken. Review all prob-
able causes given and check other listings of troubles
with similar symptoms. Items are presented in se-
quence but not necessarily in order of probability.
