ROCKWELL
COMMANDER
112/B/TC/TCA
MAINTENANCE MANUAL
SECTION IV
POWER PLANT
AND PROPELLER
3
2
IDLE MIXTURE ADJUST
IDLE SPEED ADJUST
1. IDLE VALVE LEVER
(CONNECTED TO THROTTLE)
2. METERING JET
3. FUEL INLET
4. FUEL INLET SCREEN
5. MANUAL MIXTURE/IDLE CUT-OFF
AIR INLET
10
FUEL - AIR BLEED
NOZZLE
9. FLOW DIVIDER VALVE
10. NOZZLE (ONE PER CYLINDER)
11. THROTTLE VALVE
12. IMPACT TUBE
13. BALL SERVO VALVE
14. FUEL DIAPHRAGM
6. FUEL FLOW GAGE (RT. HALF OF DUAL GAGE)
15. AIR DIAPHRAGM
7.
FLOW DIVIDER
16.
CONSTANT EFFORT SPRING
8. FLOW DIVIDER DIAPHRAGM 17. CONSTANT HEAD SPRING (IDLE)
MODELS 112/B
X245

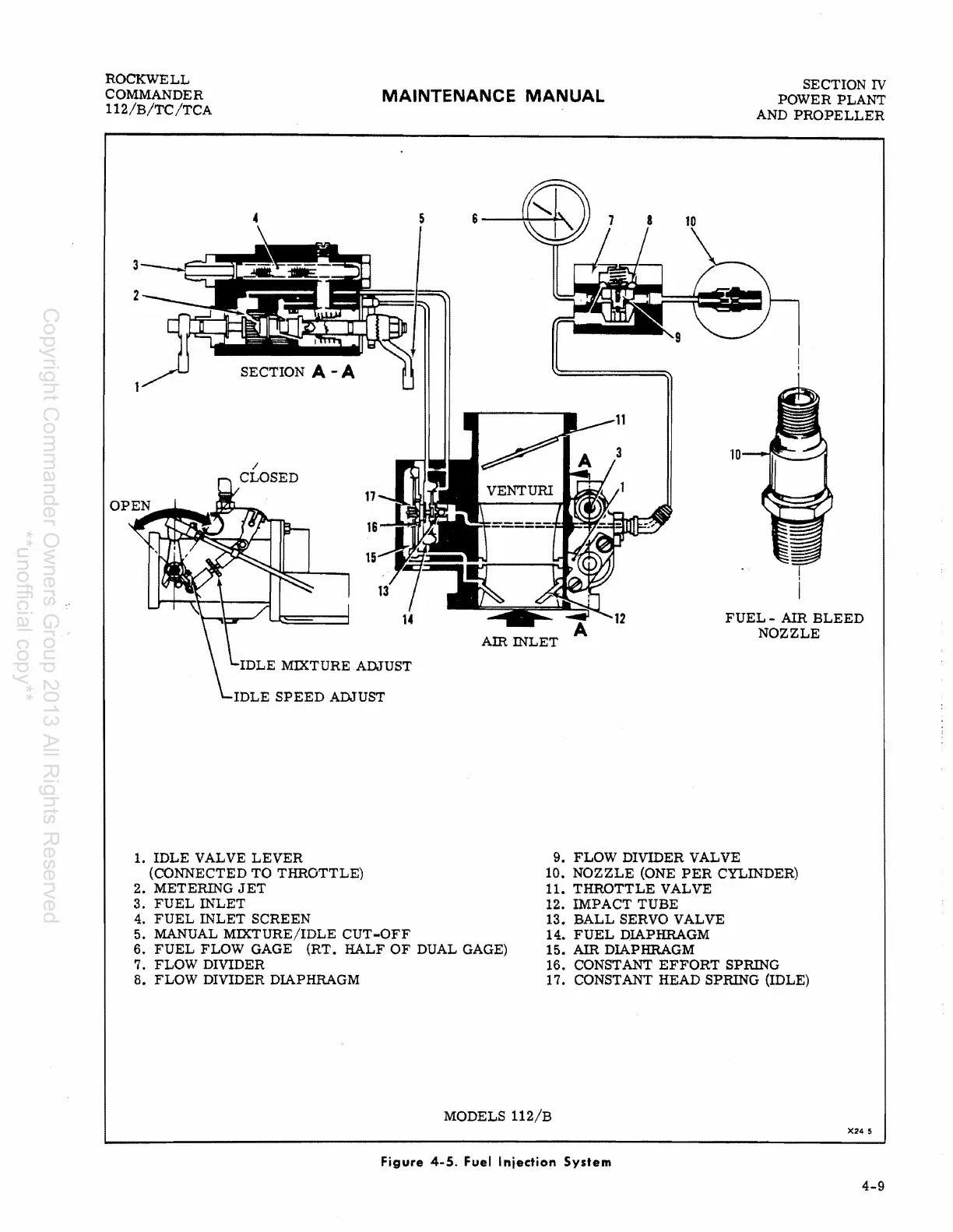

Figure 4-5. Fuel Iniection System
4-9
