Rockwell Commander 112 - Cabin and Baggage Doors

SECTION IT
SERVICING
MAINTENANCE MANUAL
ROCKWELL
COMMANDER
112/B/TC/TCA
AND INSPECTION
1. DOOR LOCK
2. DOOR ASSEMBLY
3. DOOR SEAL
4. STRIKER PLATE AND
ATTACHING HARDWARE
5.
DOOR STOP AND
ATTACHING HARDWARE
6. HINGE ATTACHMENT
HARDWARE
X22 17

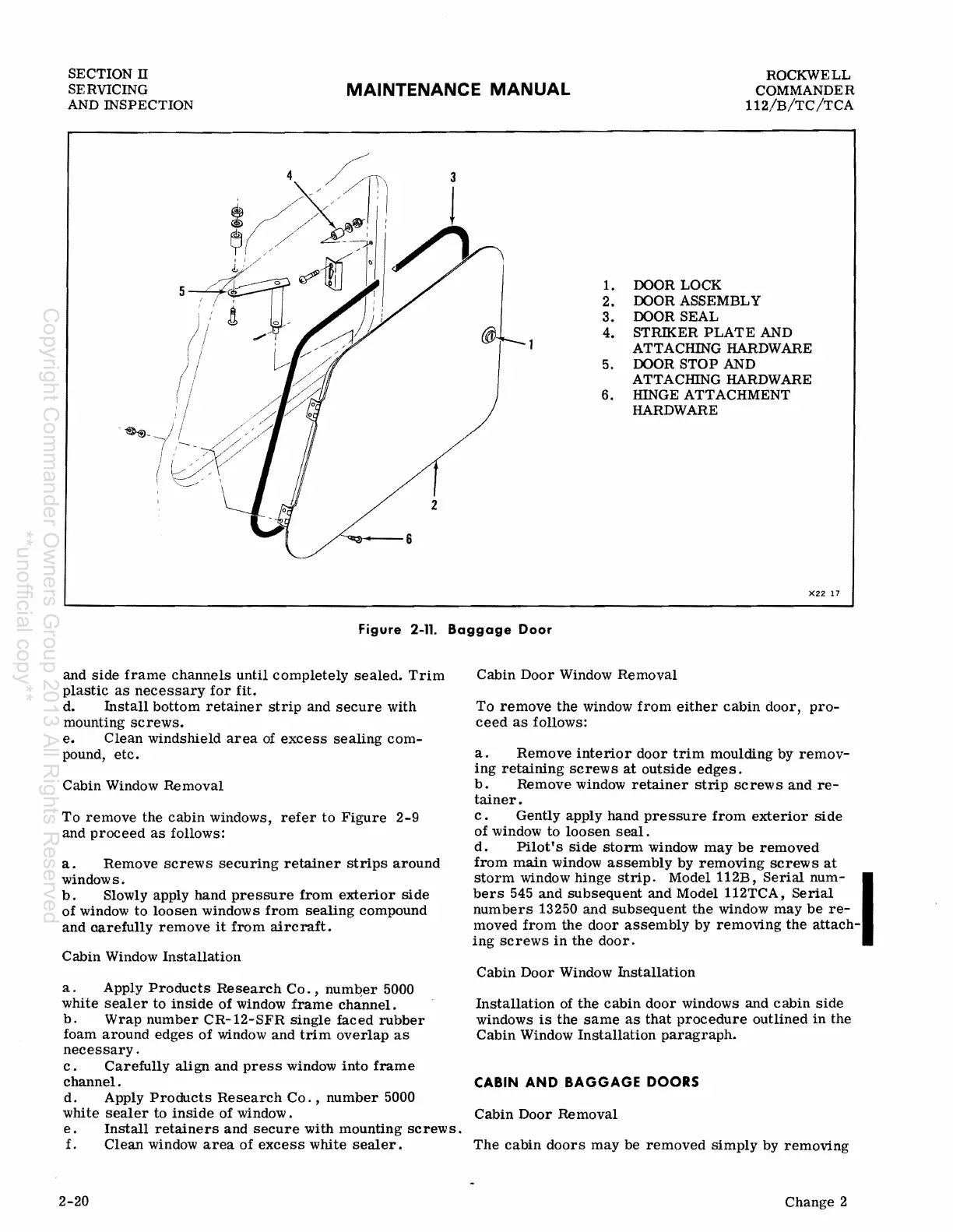

Figure 2-11. Baggage Door
and side frame channels until completely sealed. Trim
plastic as necessary for fit.
d. Install bottom retainer strip and secure with
mounting
screws.
e. Clean windshield area of excess sealing com-
pound, etc.
Cabin Window Removal
To remove the cabin windows, refer to Figure 2-9
and proceed as follows:
a. Remove screws securing retainer strips around
windows.
b. Slowly apply hand pressure from exterior side
of window to loosen windows from sealing compound
and carefully remove it from aircraft.
Cabin Window Installation
a. Apply Products Research Co., num~er 5000
white sealer to inside of window frame channel.
b. Wrap number CR-12-SFR single faced rubber
foam around edges of window and trim overlap as
necessary.
c. Carefully align and press window into frame
channel.
d. Apply Products Research Co., number 5000
white sealer to inside of window.
e. Install retainers and secure with mounting screws.
f. Clean window area of excess white sealer.
2-20
Cabin Door Window Removal
To remove the window from either cabin door, pro-
ceed as follows:
a. Remove interior door trim moulding by remov-
ing retaining screws at outside edges.
b. Remove window retainer strip screws and re-
tainer.
c. Gently apply hand pressure from exterior side
of window to loosen seal.
d. Pilot's side storm window may be removed
from main window assembly by removing screw s at
storm window hinge strip. Model 112B, Serial num- I
bers 545 and subsequent and Model 112TCA, Serial
numbers 13250 and subsequent the window may be re-
moved from the door assembly by removing the attach-
ing screws in the door.
Cabin Door Window Installation
Installation of the cabin door windows and cabin side
windows is the same as that procedure outlined in the
Cabin Window Installation paragraph.
CABIN AND BAGGAGE DOORS
Cabin Door Removal
The cabin doors may be removed simply by removing
Change 2
