ROCKWELL
COMMANDER
112/B/TC/TCA
MAINTENANCE MANUAL
SECTION IT
SERVICING
AND INSPECTION
A
LATCH BOLT <:> EXTERIOR LATCH HANDLE
----11· /'
,~
X~ ·4\
SPACER ~~
~/GROMMET
~ /MOUNTING PLATE
r ......
STRIKER PLATE
X2243
~ "'1 SPACER
-kLATCH ACTUATOR
~/SPRING
\.4-...,.;~r---LA TCH TONGUE
'1'\
L ... ) INTERIOR COVER PLATE
.~"'/
SPACER \'\. l
X229
SHIM
RECEIVER
ASSEMBLY
HANDLE STRIKER
X2243

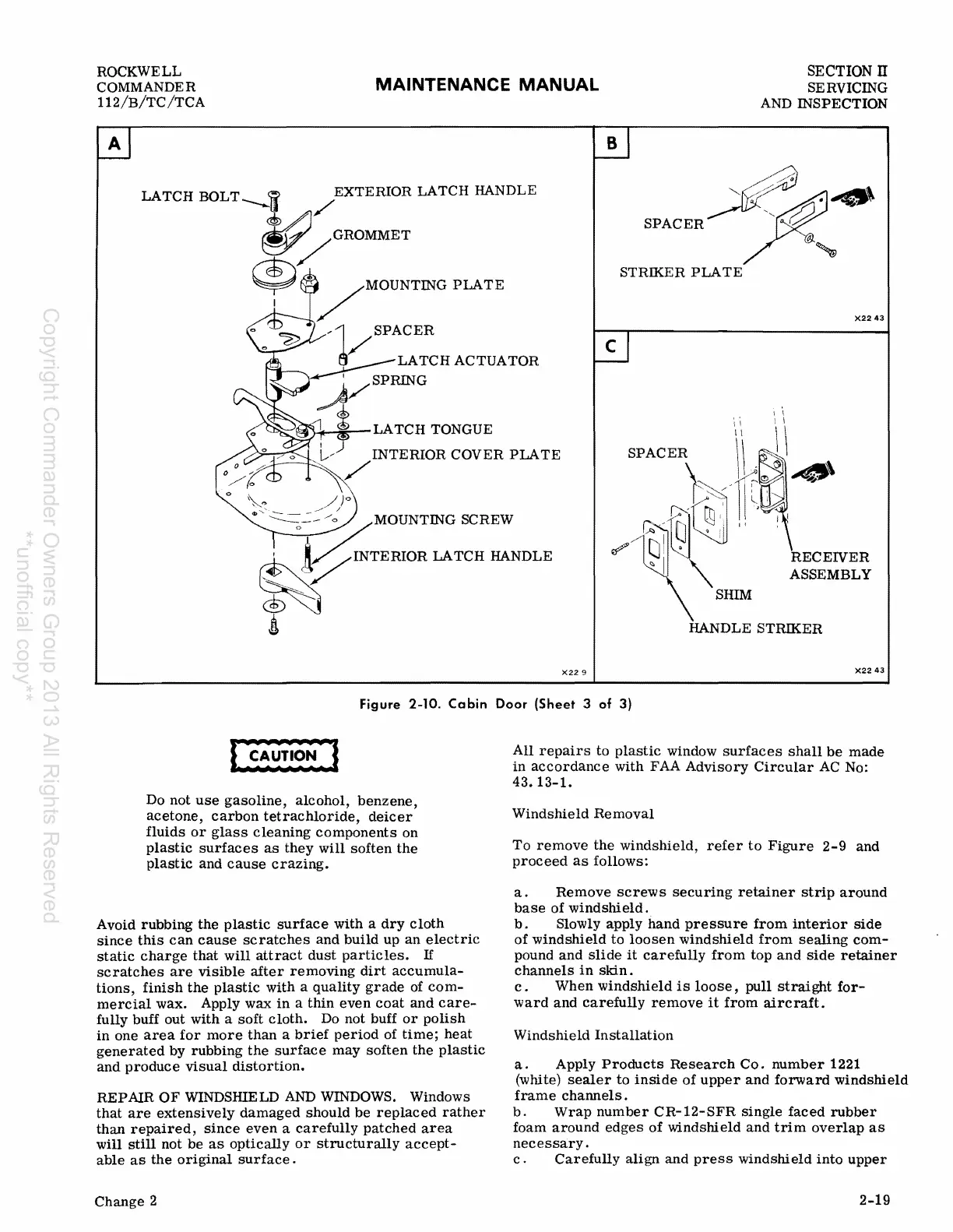

Figure 2-10. Cabin Door (Sheet 3 of 3)
Do not use gasoline, alcohol, benzene,
acetone, carbon tetrachloride, deicer
fluids or glass cleaning components on
plastic surfaces as they will soften the
plastic and cause crazing.
Avoid rubbing the plastic surface with a dry cloth
since this can cause scratches and build up an electric
static charge that will attract dust particles. If
scratches are visible after removing dirt accumula-
tions, finish the plastic with a quality grade of com-
mercial wax. Apply wax in a thin even coat and care-
fully buff out with a soft cloth. Do not buff or polish
in one area for more than a brief period of time; heat
generated by rubbing the surface may soften the plastic
and produce visual distortion.
REPAIR OF WINDSHIELD AND WINDOWS. Windows
that are extensively damaged should be replaced rather
than repaired, since even a carefully patched area
will still not be as optically or structurally accept-
able as the original surface.
Change 2
All repairs to plastic window surfaces shall be made
in accordance with FAA Advisory Circular AC No:
43.13-1.
Windshield Removal
To remove the windshield, refer to Figure 2-9 and
proceed as follows:
a. Remove screws securing retainer strip around
base of windshield.
b. Slowly apply hand pressure from interior side
of windshield to loosen windshield from sealing com-
pound and slide it carefully from top and side retainer
channels in sldn.
c. When windshield is loose, pull straight for-
ward and carefully remove it from aircraft.
Windshield Installation
a. Apply Products Research Co. number 1221
(white)
sealer to inside of upper and forward windshield
frame channels.
b. Wrap number CR-12-SFR Single faced rubber
foam around edges of windshield and trim overlap as
necessary.
c. Carefully align and press windshield into upper
2-19
