SECTION VI
LANDING GEAR,
WHEELS AND BRAKES
10
LEFT INSTALLATION SHOWN
RIGHT INSTALLATION OPPOSITE
NOSE WHEEL
6
MAINTENANCE MANUAL
6
9
8
9
8

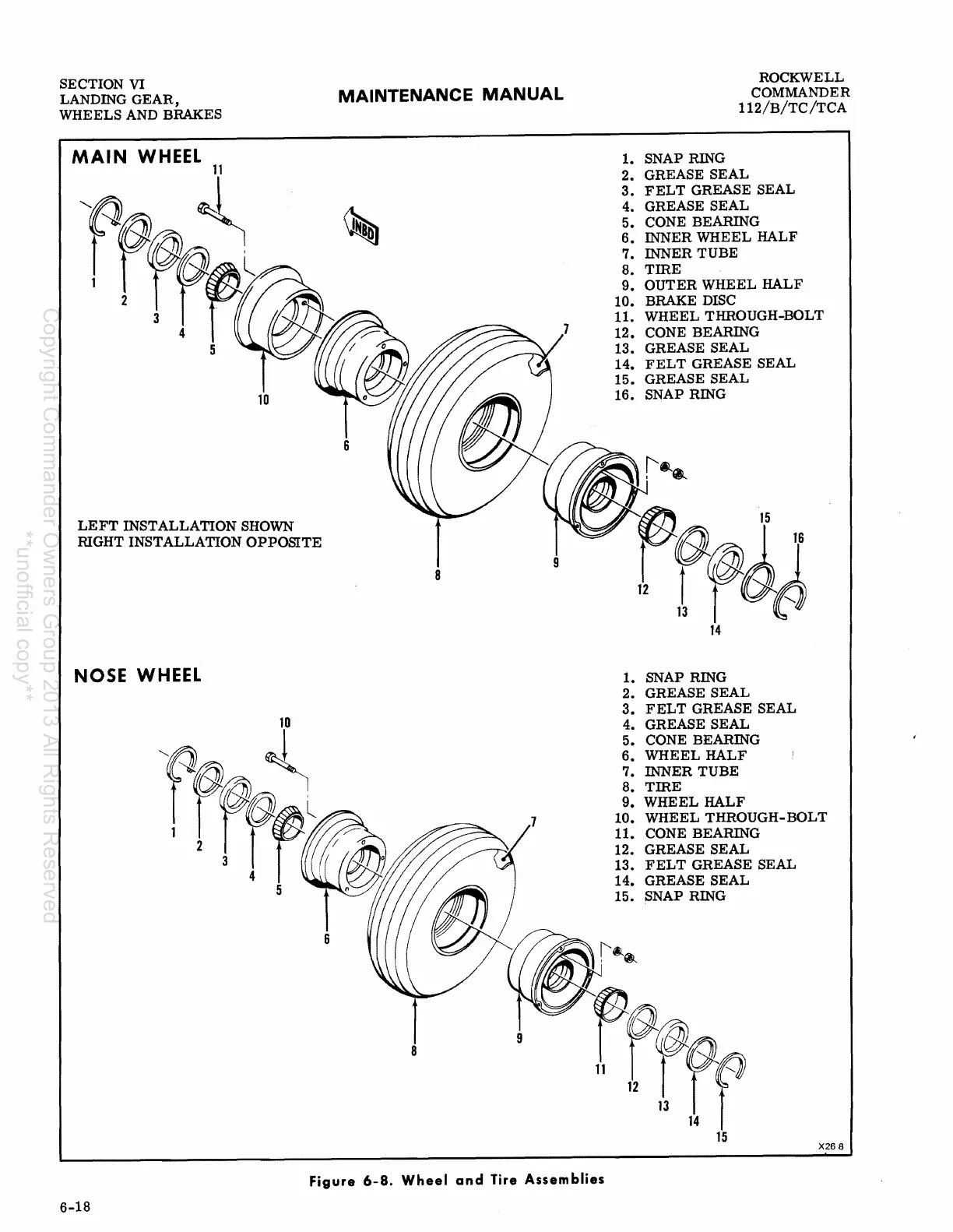

Figure 6-8. Wheel and Tire Assemblies
6-18
ROCKWELL
COMMANDER
112/B/TC /TCA
1. SNAP RING
2.
GREASE SEAL
3. FELT GREASE SEAL
4. GREASE SEAL
5. CONE BEARING
6. INNER WHEEL HALF
7. INNER TUBE
8. TffiE
9. OUTER WHEEL HALF
10. BRAKE DISC
11. WHEEL THROUGH-BOLT
12. CONE BEARING
13.
GREASE SEAL
14. FELT GREASE SEAL
15. GREASE SEAL
16. SNAP RING
1. SNAP RING
2.
GREASE SEAL
3. FELT GREASE SEAL
4. GREASE SEAL
5. CONE BEARING
6. WHEEL HALF
7. INNER TUBE
8. TffiE
9. WHEEL HALF
10. WHEEL THROUGH-BOLT
11. CONE BEARING
12.
GREASE SEAL
13. FELT GREASE SEAL
14. GREASE SEAL
15. SNAP RING
15
X268
