ROCKWELL
COMMANDER
112/B/TC/TCA
MAINTENANCE MANUAL
SECTION VI
LANDING
GEAR,
WHEELS AND BRAKES
COPILOT'S BRAKE
CYLINDER-(DUAL INSTALLATION MODEL 112
PILOT'S BRAKE
MASTER CYLINDER
PILOT & COPILOT BRAKE
CYLINDER MODEL 112B/TC/TCA
1. CLEVIS
2. LOCKNUT
3. FILLER PLUG
MODEL 112 ONLY
4. SNAP RING RETAINER
5. SQUARE CUT SEAL
6. O-RINGS
7. THRUST COLLAR

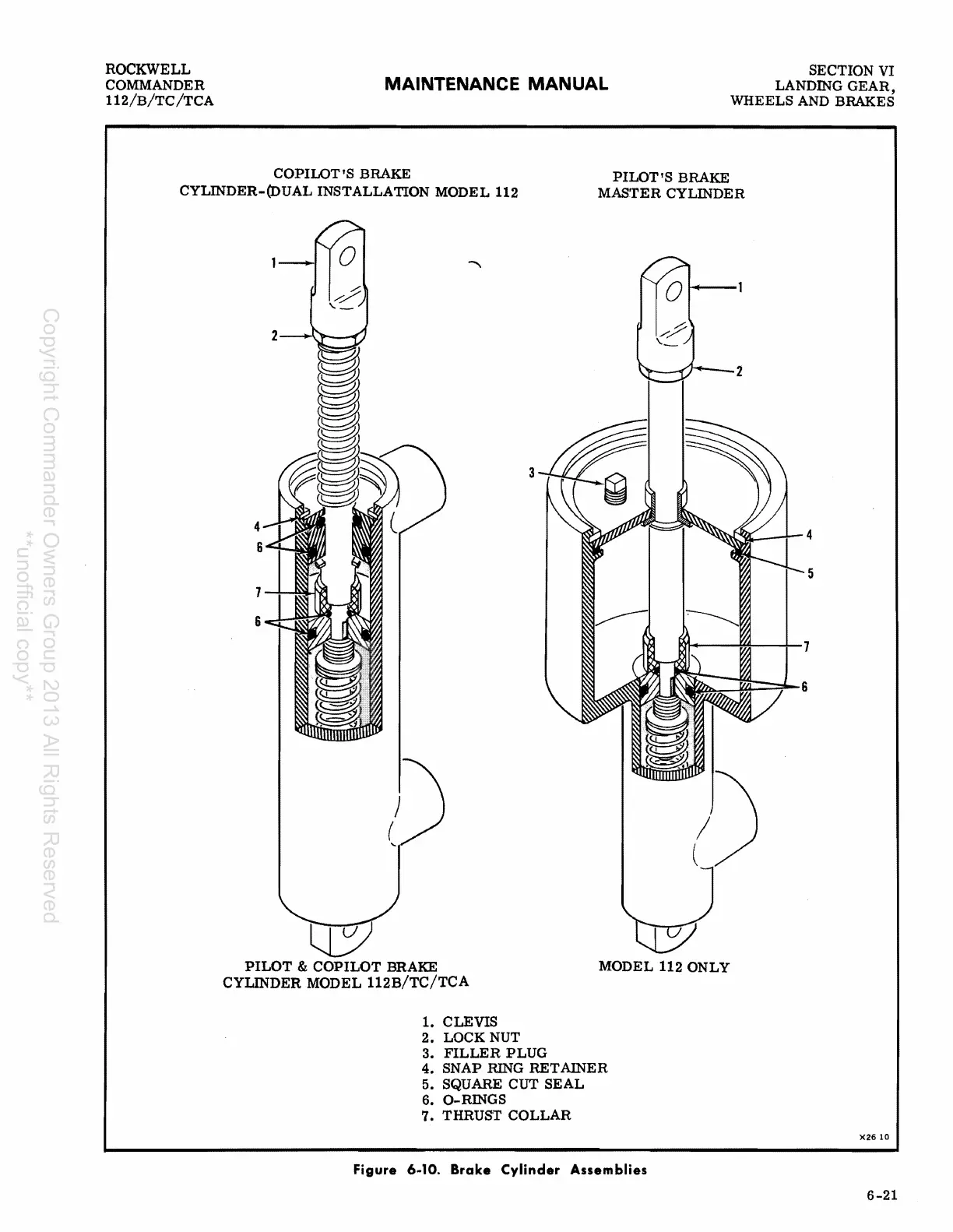

Figure 6-10. Brake Cylinder Assemblies
X2610
6-21
