Rockwell Commander 112 - Page 142

ROCKWELL
COMMANDER
112/B/TC/TCA
1. BLEEDER CAP
2. BLEEDER SCREW
3. O-RING
4. PISTON
5. RIVET (#561)
MODEL 112
1. BLEEDER CAP
2.
BLEEDER SCREW
3. O-RING
4. PISTON
5. RIVET (#561)
112B/TC/TCA
MAINTENANCE MANUAL
6. PRESSURE PLATE
7
7. LININGS
8. BACK PLATE
9. ANCHOR BOLT
10. TORQUE PLATE
6. PRESSURE PLATE
7. LININGS
8. BACK PLATE
9. ANCHOR BOLT
10. TORQUE PLATE

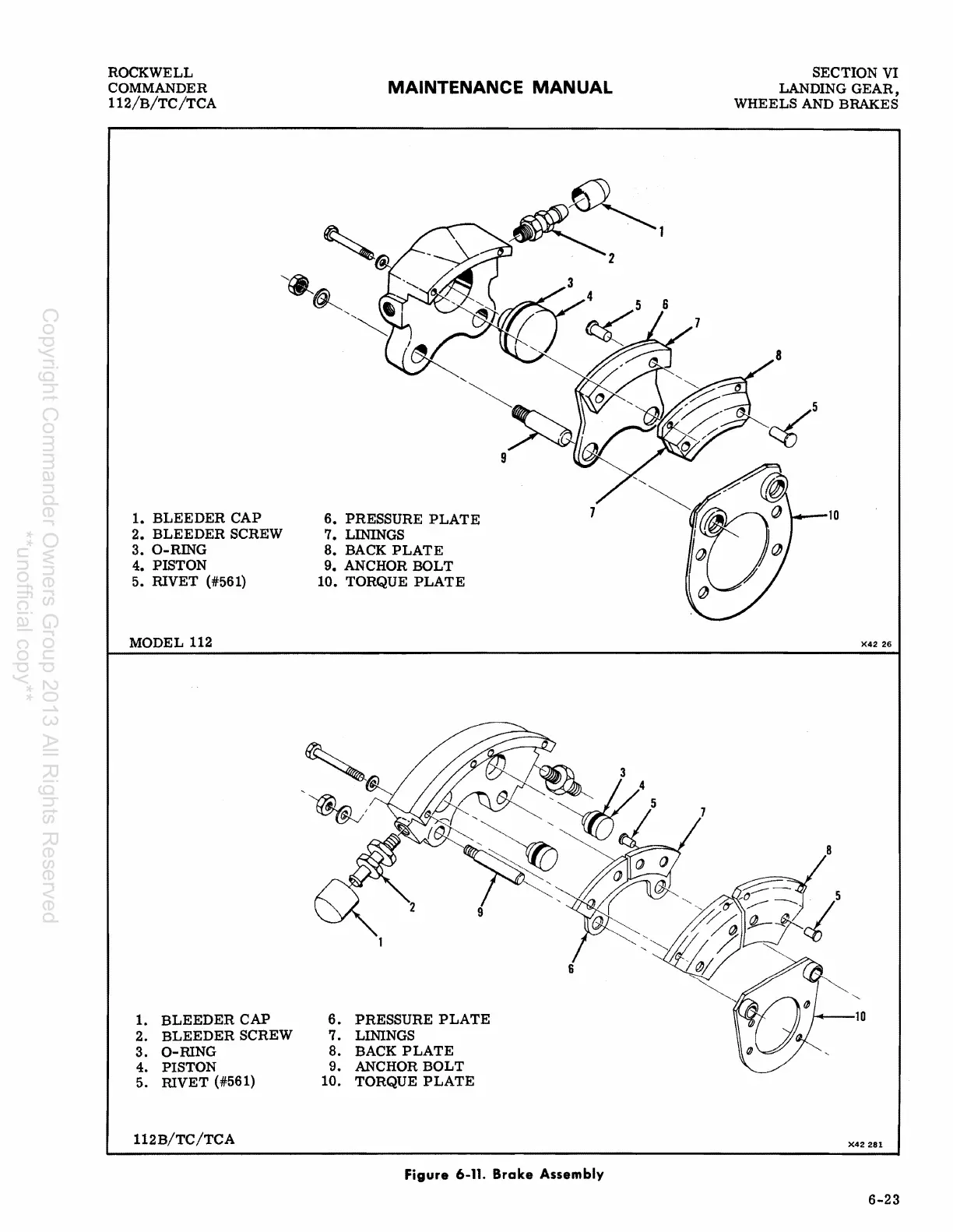

Figure 6-11. Brake Assembly
7
SECTION VI
LANDING
GEAR,
WHEELS AND BRAKES
8
10
)(4226
8
10
)(42281
6-23
Copyright Commander Owners Group 2013 All Rights Reserved
**unofficial copy**
