Rockwell Commander 112 - Page 147

SECTION VII
FLIGHT
CONTROLS
MAINTENANCE MANUAL
1. SPACER
9. RETAINER RING
2.
IDLER SPROCKET ASSEMBLY
10. MOUNTING
3. PILOT INPUT SPROCKET ASSEMBLY
11. ELEVATOR ARM
ROCKWELL
COMMANDER
112/B/TC/TCA
4. FLANGE BEARING
12. CONTROL YOKE PIVOT BUSHING
5. UNIVE RSAL JOINT
13. AILERON CABLE PULLEY
6. O-RING
14. CONTROL YOKE
7. CONTROL WHEEL SHAFT
15. CENTER SPROCKETS
8. CONTROL WHEEL
16. CONTROL LOCK
X274

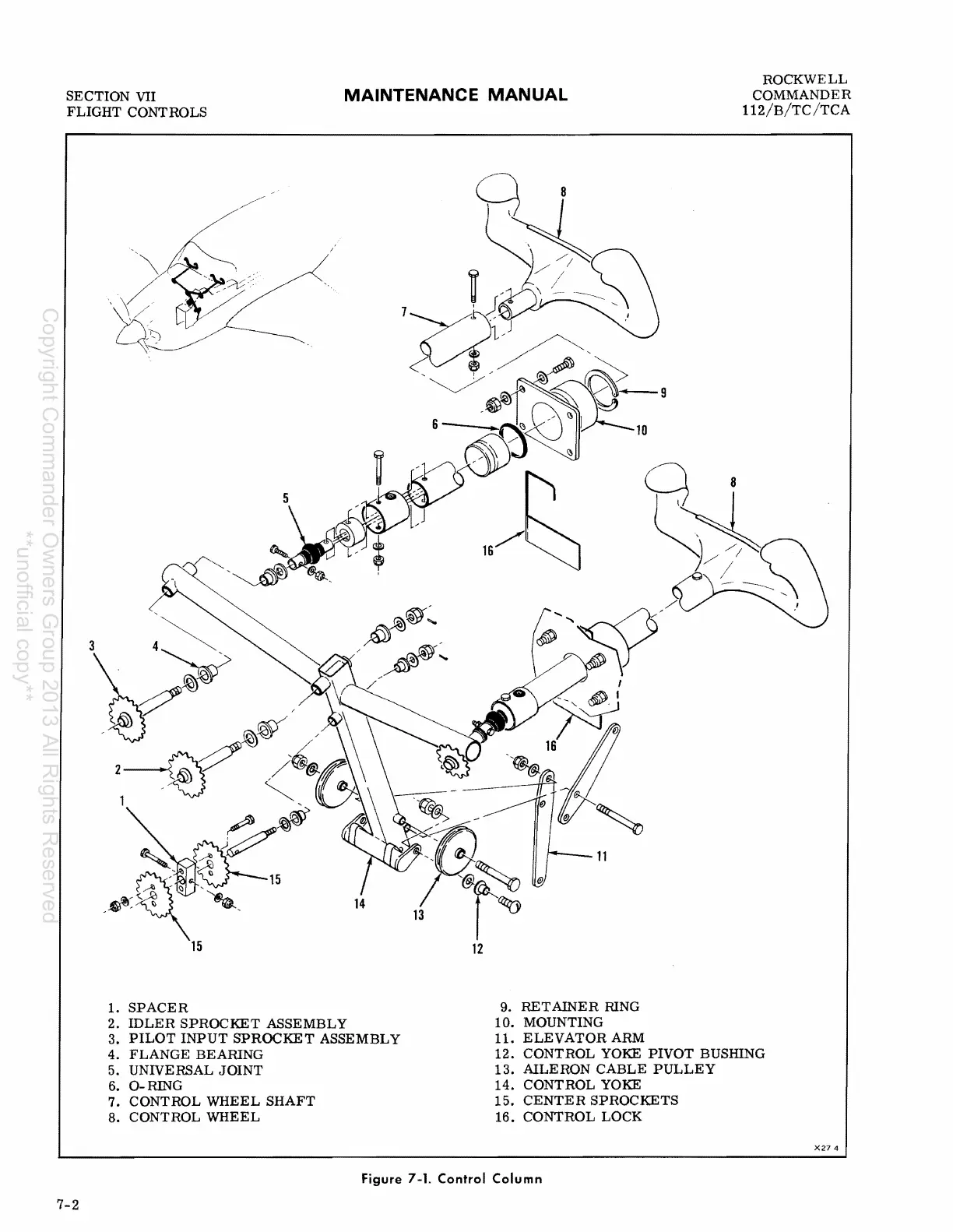

Figure 7-1. Control Column
7-2
