Rockwell Commander 112 - Page 151

SECTION vn
FLIGHT CONT ROLS
MODEL
112·51 THRU 470
7-6
MAINTENANCE MANUAL

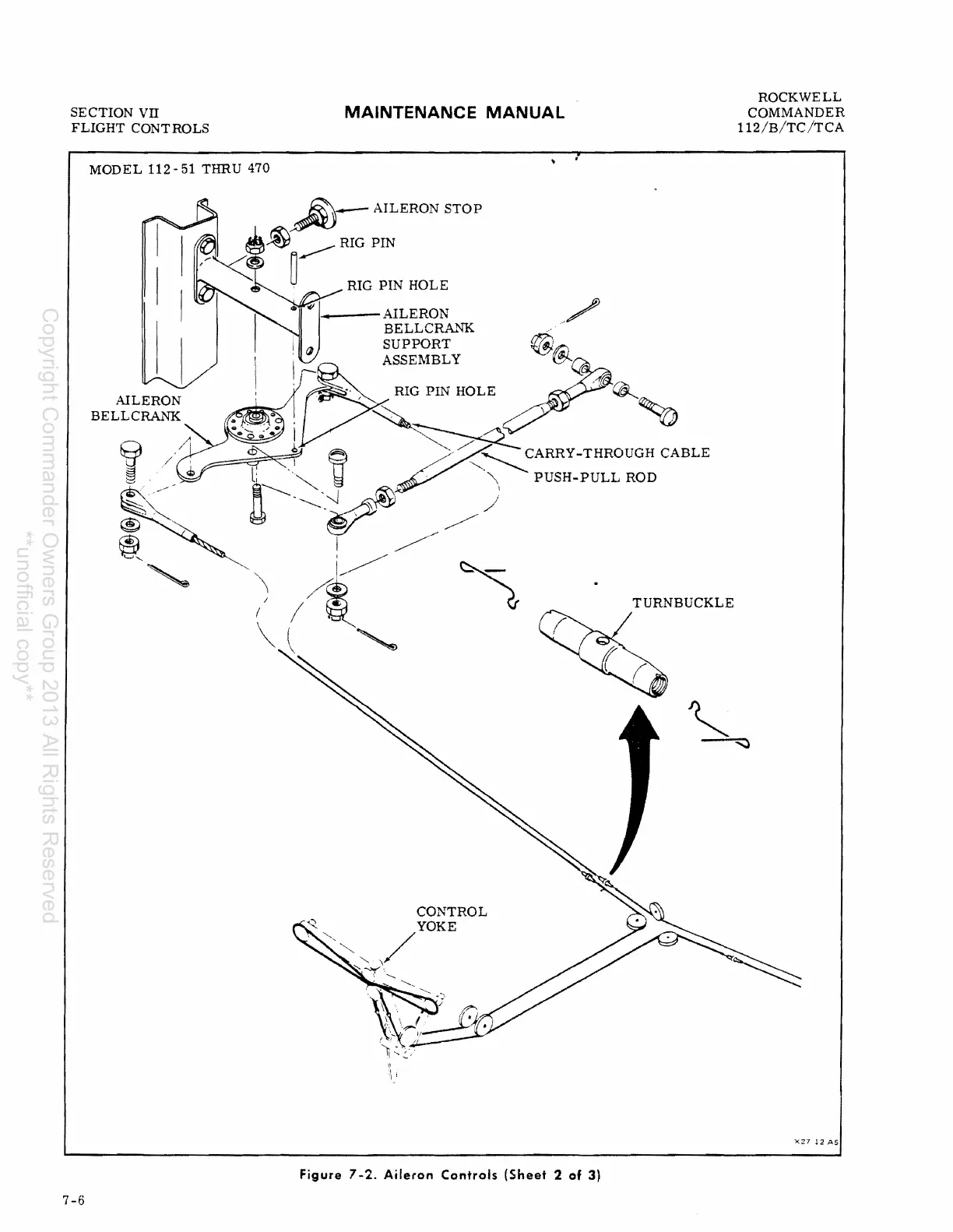

Figure 7-2. Aileron Controls (Sheet 2 of 3)
TURNBUCKLE
ROCKWELL
COMMANDER
112/B/TC/TCA
X27 12 AS
