1. ELEVATOR TRIM PUSHROD
2. JACKSCREW ASSEMBLY
3. ELEVATOR TRIM CHAIN
4. PULLEYS
5. ELEVATOR TRIM TURNBUCKLES
6. LEFT ELEVATOR TRIM CABLE
7. RIGHT ELEVATOR TRIM CABLE
3
STA. 262.75
'" STA. 179.98
8. COTTER PIN
9. SPRING
10. ELEVATOR TRIM INDICATOR STRIP
110 TRIM WHEEL SUPPORT
12. ELEVATOR TRIM WHEEL
13. PULLEYS
14. AILERON PULLEY BRACKETS
15. PHENOLIC GUIDE BLOCKS

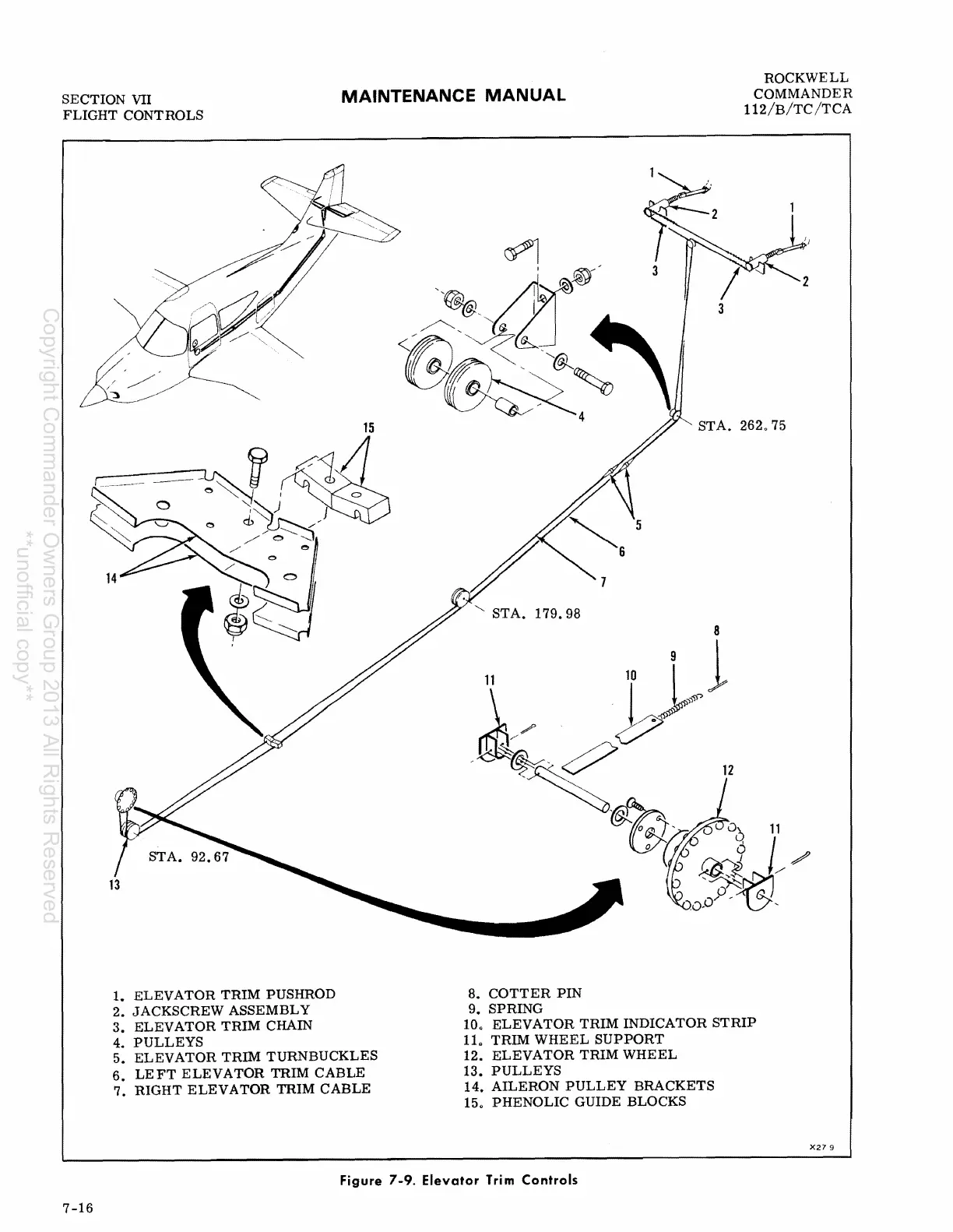

Figure 7-9. Elevator Trim Controls
