SECTION VIII
INSTRUMENTS
8-6
MAINTENANCE MANUAL
1. PUMP DRIVE SPLINE
2. PUMP DRIVE COUPLING
3. PUMP GASKET
ROCKWELL
COMMANDER
112/B/TC/TCA
4. ENGINE-DRIVEN VACUUM PUMP
5. VACUUM PUMP EXHAUST
6. FIREWALL
7. VACUUM REGULATOR AND FILTER
8. ARTIFICIAL HORIZON
9. DIRECTIONAL GYRO
10. SUCTION
GAGE
11.
VACUUM FILTER CARTRIDGE
12.
WASHER
X283

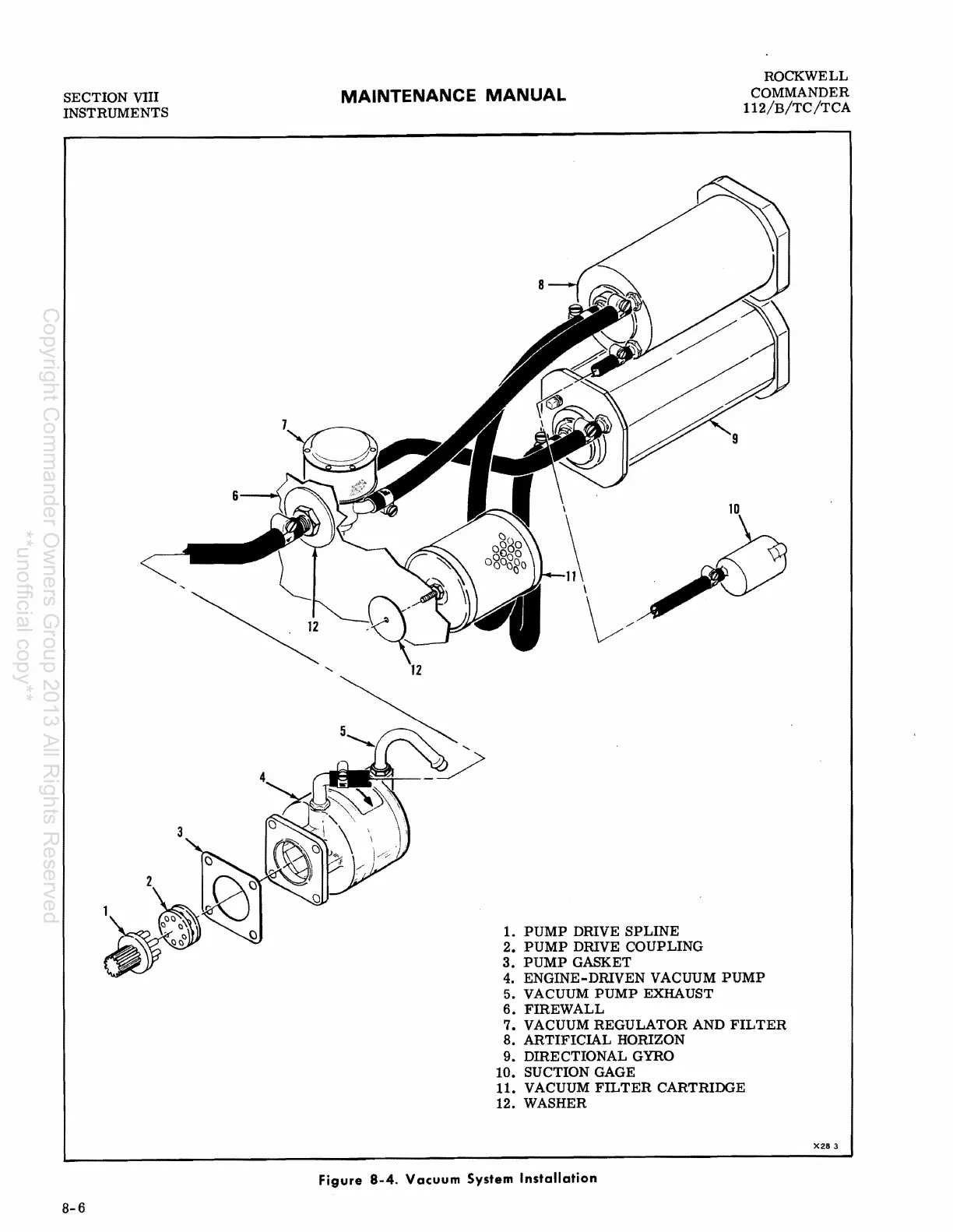

Figure 8-4. Vacuum System Installation
