SECTION IV
POWER PLANT
AND PROPELLER
MAINTENANCE MANUAL
ROCKWELL
COMMANDER
112/B/TC/TCA
BREATHER
THERMOSTATIC OIL BY-PASS VALVE
TACHOMETER CONNECTION
OIL TEMP. CONNECTION
MANIFOLD
PRESSURE
CONNECTION
-----!---+--OIL LINE TO
~~~~ J J PROPELLER
FUEL PUMP INLET ·
MODELS
112/B
THROTTLE LEVER
OIL DRAIN
BREATHER
OIL FROM COOLER
VENT LINE CONNECTION
MODELS
112TC/TCA
MIXTURE CONTROL LEVER
OIL SUCTION SCREEN
X246
TACHOMETER CONNECTION
PRESSURE CONNECTION
MIXTURE CONTROL
LEVER
FUEL PUMP INLET
THERMOSTATIC
OIL BY-PASS
VALVE
LE LEVER
X2428

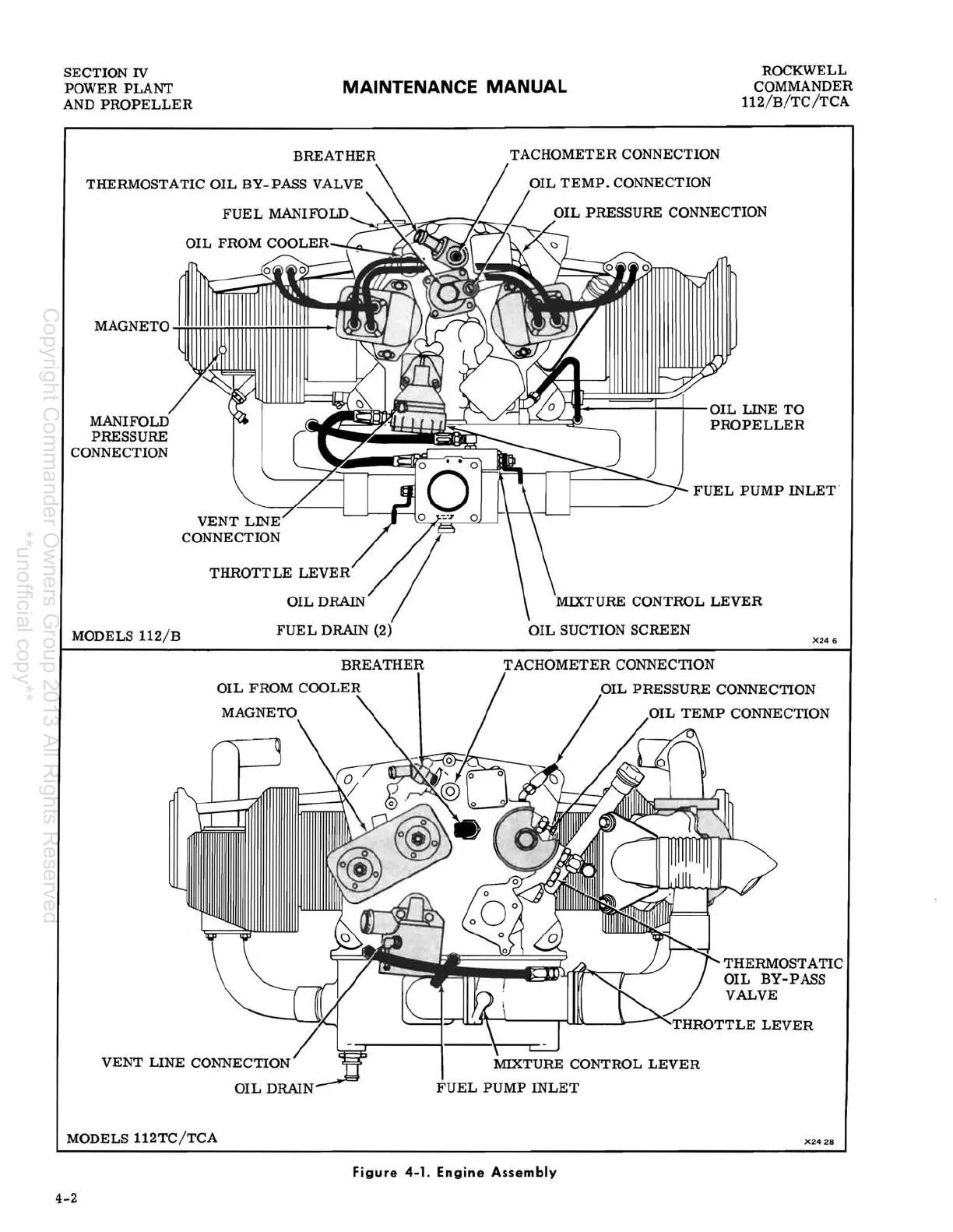

Figure 4-1. Engine Assembly
