Rockwell Commander 112 - Page 86

ROCKWELL
COMMANDER
112/B/TC/TCA
RIGHT SIDE
FORWARD
BAFF
RIGHT SIDE
AFT BAFFLE
FRONT--*!-
BAFFLE
RIGHT FRONT
BAFFLE
MODELS 112/B
MAINTENANCE MANUAL
RIGHT
AFT BAFFLE
LEFT SIDE
FORWARD
BAFFLE
LEFT FRONT"
BAFFLE

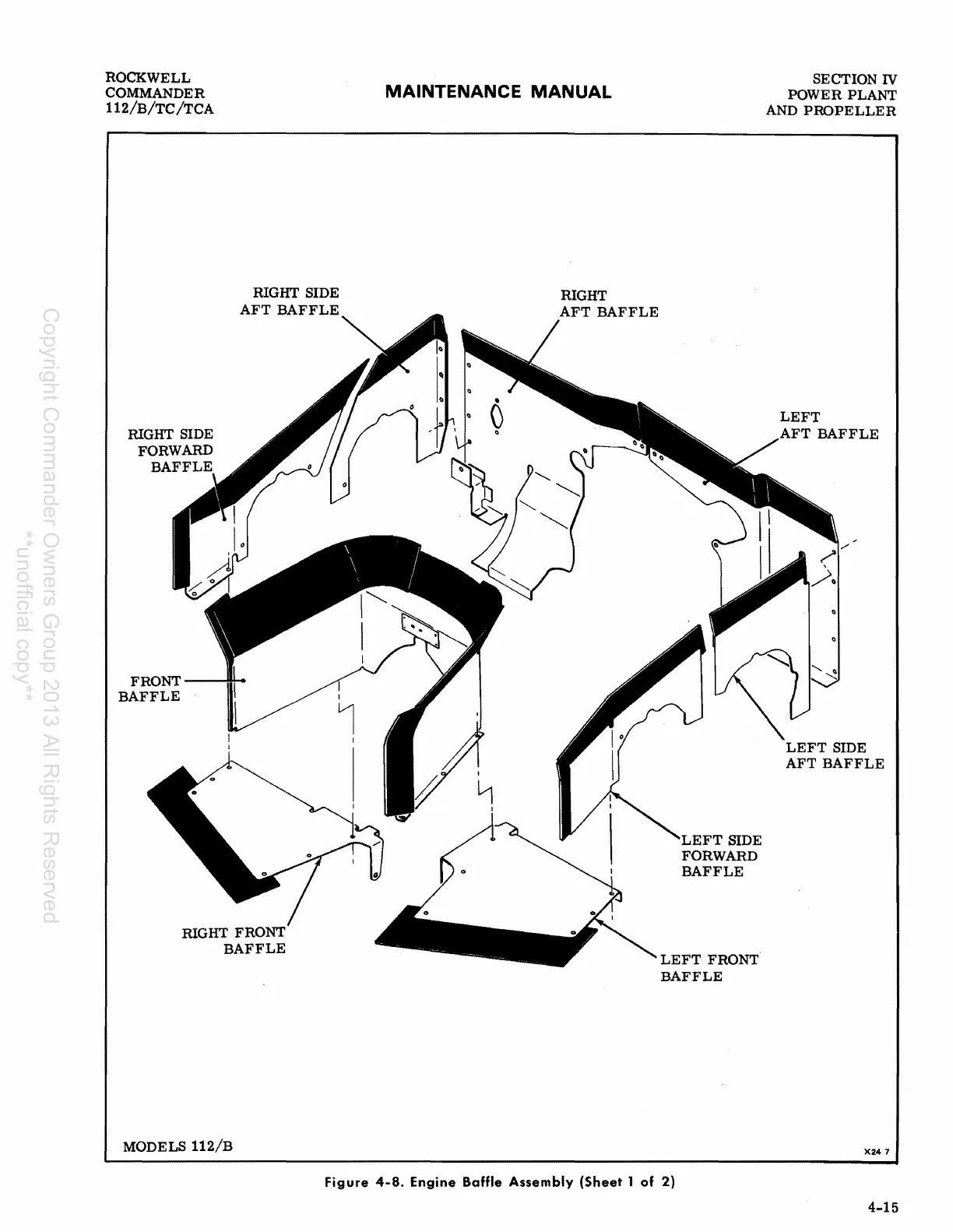

Figure 4-8. Engine Baffle Assembly (Sheet 1 of 2)
SECTION IV
POWER PLANT
AND
PROPELLER
LEFT SIDE
AFT BAFFLE
X247
4-15
