SECTION IV
POWER PLANT
AND PROPELLER
MODELS 112/B
1. NUT
2. WASHER
3. WASHER
4. RUBBER SHOCK PAD
5. DAMPER
6. RUBBER SHOCK PAD
7. BOLT
8. NUT
9. WASHER
10. BOLT
11. ENGINE MOUNT
4-20
MAINTENANCE MANUAL
10

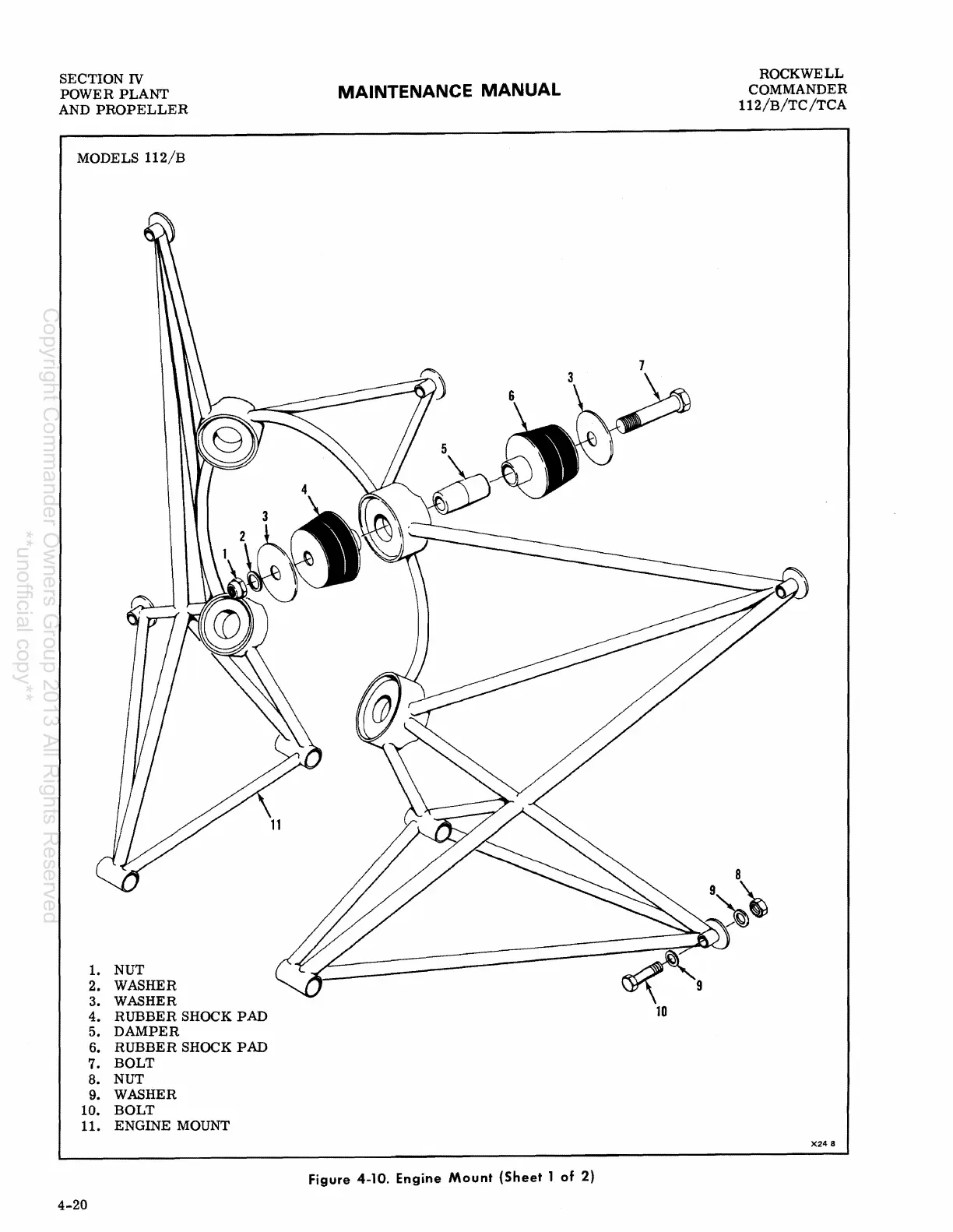

Figure 4-10. Engine Mount (Sheet 1 of 2)
ROCKWELL
COMMANDER
1t2/B/TC/TCA
X248
