4. Assembly and Ink Filling
11

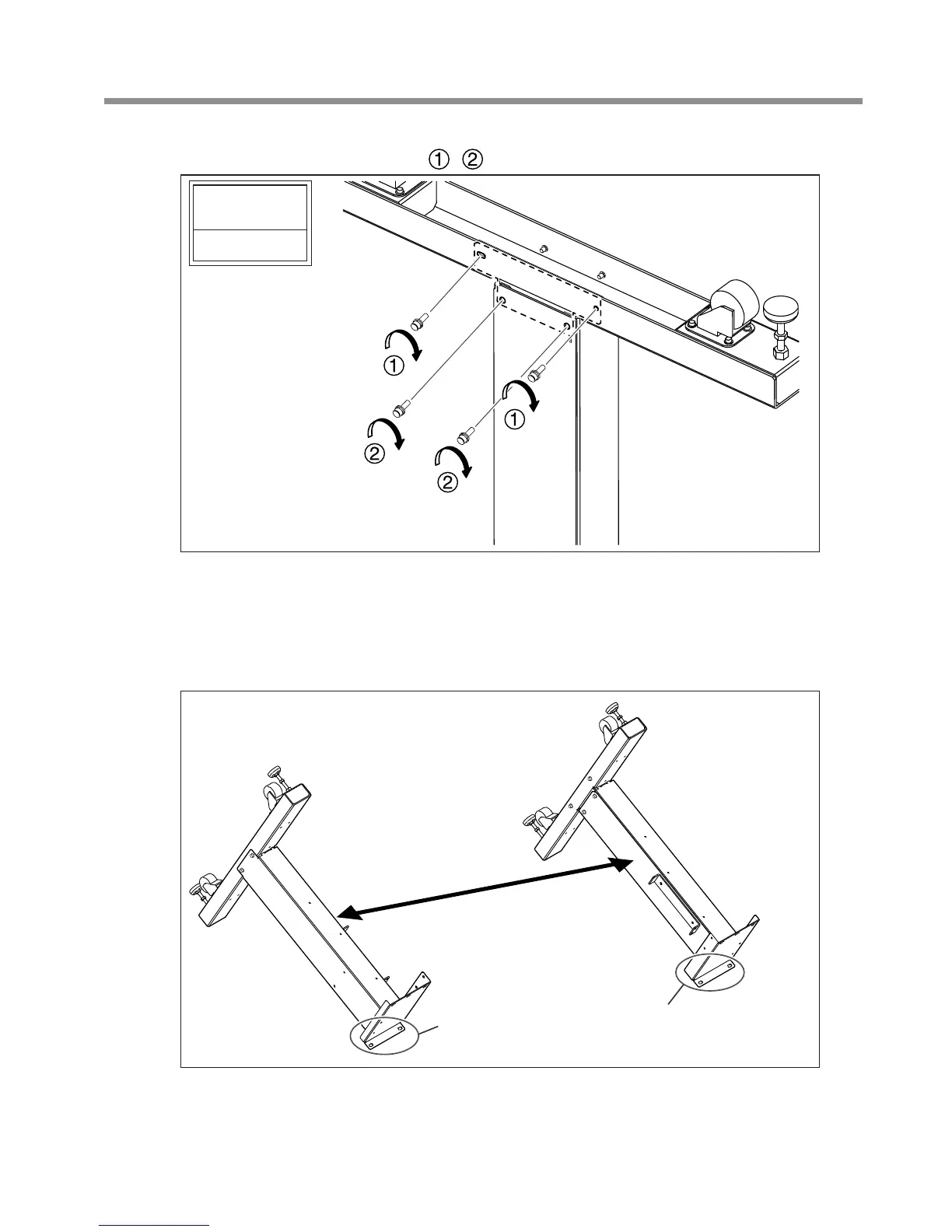

Tighten the bolts in the order of , to secure the plate.
z
Assemble the opposing leg by following the same procedure from step
to step
.
Position the stand legs parallel to each other and separated by approximately 1,800
mm (70.9 in.).
Position the legs so that the U-shaped brackets face the inside and the bent side of the tabletop plate
faces down for each leg.
Tighten fully
Bolts: 4
About 1,800 mm (70.9 in.)
Set this part on
the bottom.
Set this part on
the bottom.
