Rosco Maximizer 2B User Manual

6-40 Rosco Maximizer 2B Asphalt Distributor
Operation
7
Clean-out Mode (CL. OUT DIESEL)

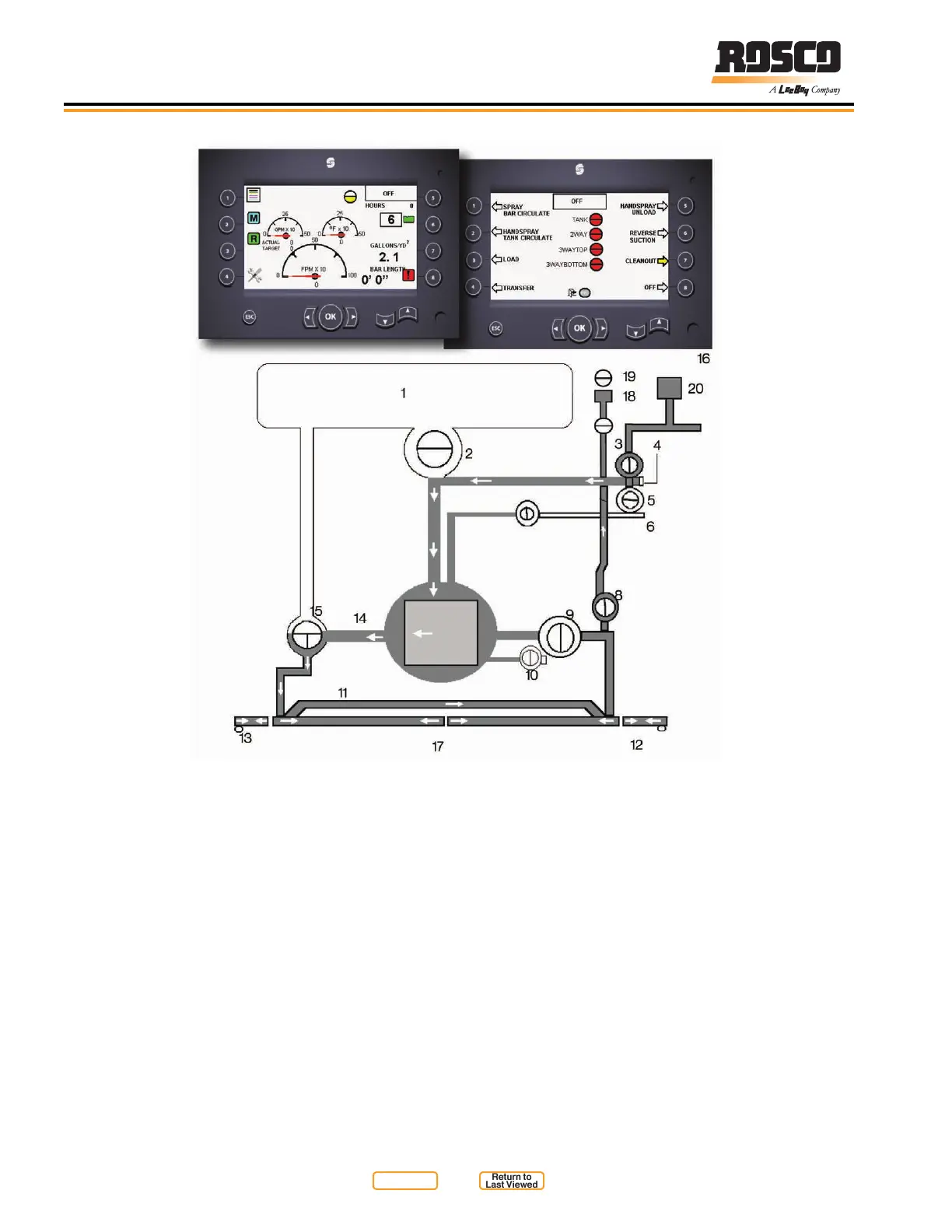

Figure 6-35
12 - Right Spraybar Wing
13 - Left Spraybar Wing
14 - Asphalt Pump
15 - 3-Way Valve
16 - Enviro Solvent Valve
17 - Spraybar
18 - Enviroush Holding Tank
19 - Drain Valve
20- Clean Fuel or Solvent Tank
1 - Maximizer Tank
2 - Tank Valve
3 - Solvent Valve
4 - Load Line
5 - Vent Valve
6 - Transfer Line
7 - Transfer Valve
8 - Solvent Circlt Valve
9 - 2-Way Valve
10 - Handspray Valve
11 - Manifold
