Rosco Maximizer 2B - Drive Shaft Group

10-48
Rosco Maximizer 2B Asphalt Distributor
Illustrated Parts List (IPL)
Drive Shaft Group

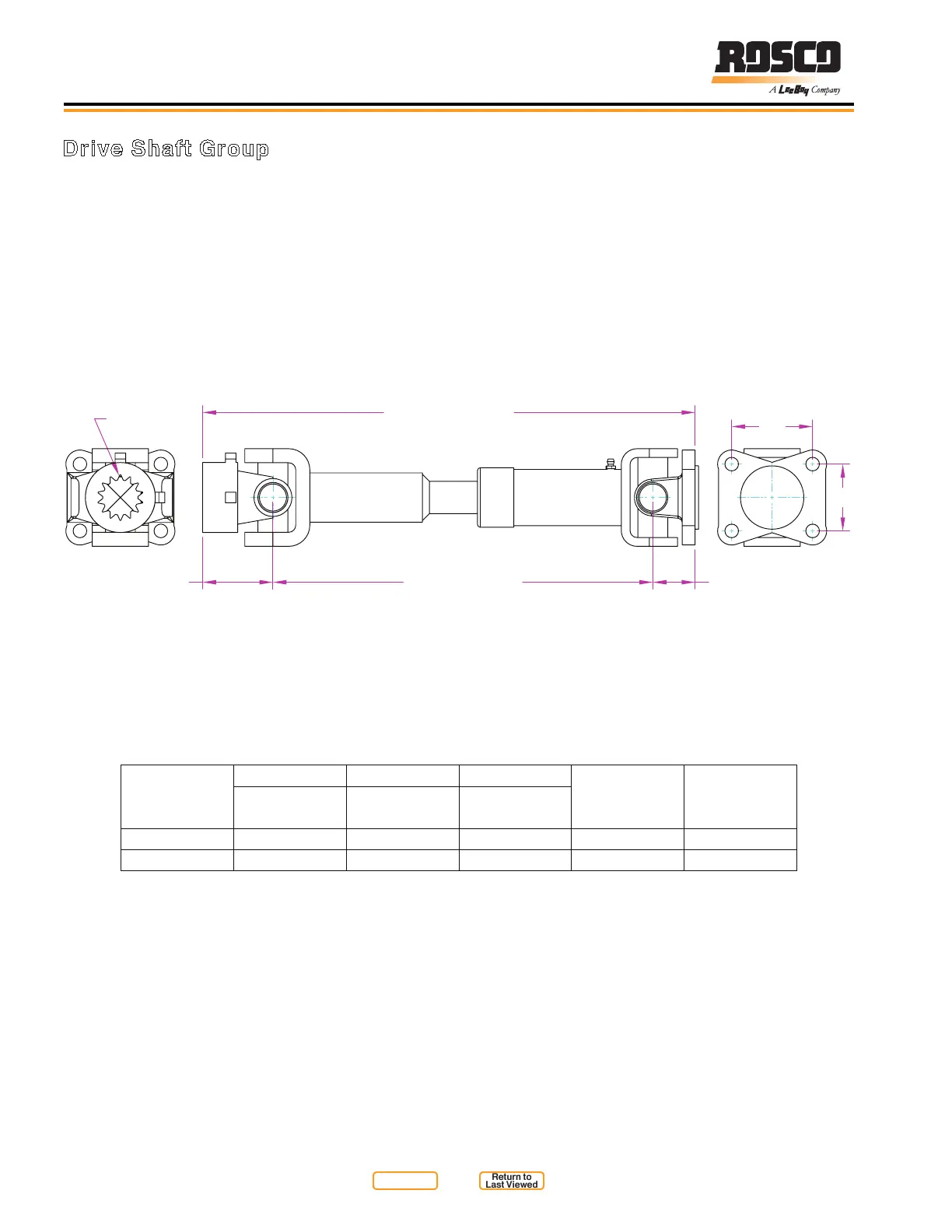

CENTER TO CENTER 1.50 REF2.50 REF
DIM "A" (COLLAPSSED
DIM "B" (EXTENDED)
DIM "C"
"D"
"C"
RATED HORSEPOWER: 55 HP
PULSATING TORQUE: 130 FT-LBS
CONSTANT TORQUE: 195 FT-LBS
SHORT DURATION TORQUE: 800 FT-LBS
TORSIONAL ELASTIC LIMIT: 1600 FT-LBS
PART NO
DIM "A" DIM "C"
DIM "D" DIM "E"
COLLAPSED
LENGTH
EXTENDED
LENGTH
INTERNAL
SPINE
DIM "B"
15 TEETH34851-20 18.00 20.88 2.3752.875
34851-42 18.00 20.75 15 TEETH 2.375 2.000
Figure 10-15
