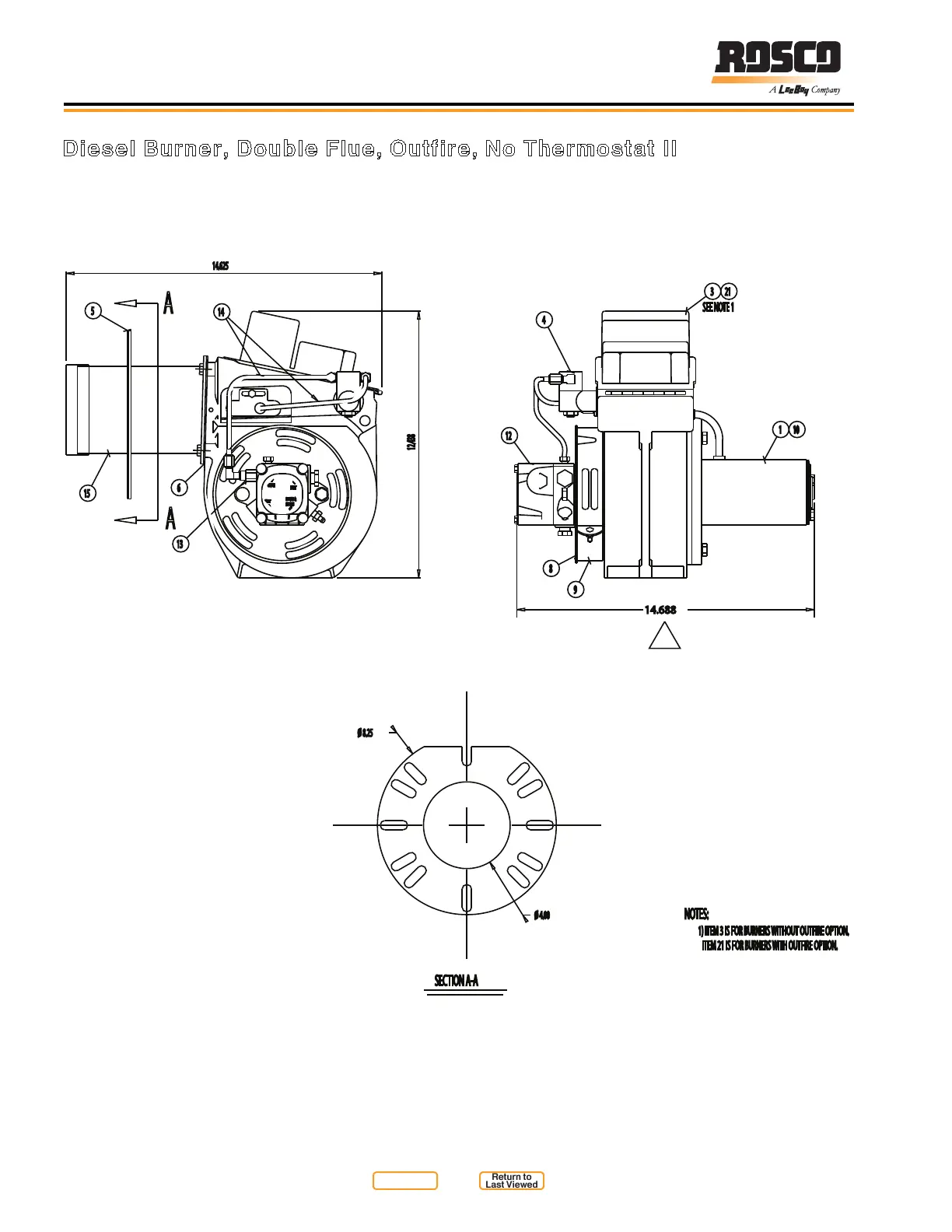

Rosco Maximizer 2B Asphalt Distributor
Illustrated Parts List (IPL)
Diesel Burner, Double Flue, Outfire, No Thermostat II
9
5
13
6
101
15
14
12
SEE NOTE 1
213
8
4
1) ITEM 3 IS FOR BURNERS WITHOUT OUTFIRE OPTION.
ITEM 21 IS FOR BURNERS WITH OUTFIRE OPTION.
NOTES:
Ø 4.00
Ø 8.25
14.688
12.438
14.625
A
A
SECTION A-A
RETURN &
BY-PASS
INLET
INLET
GAUGE
B
Figure 10-45
