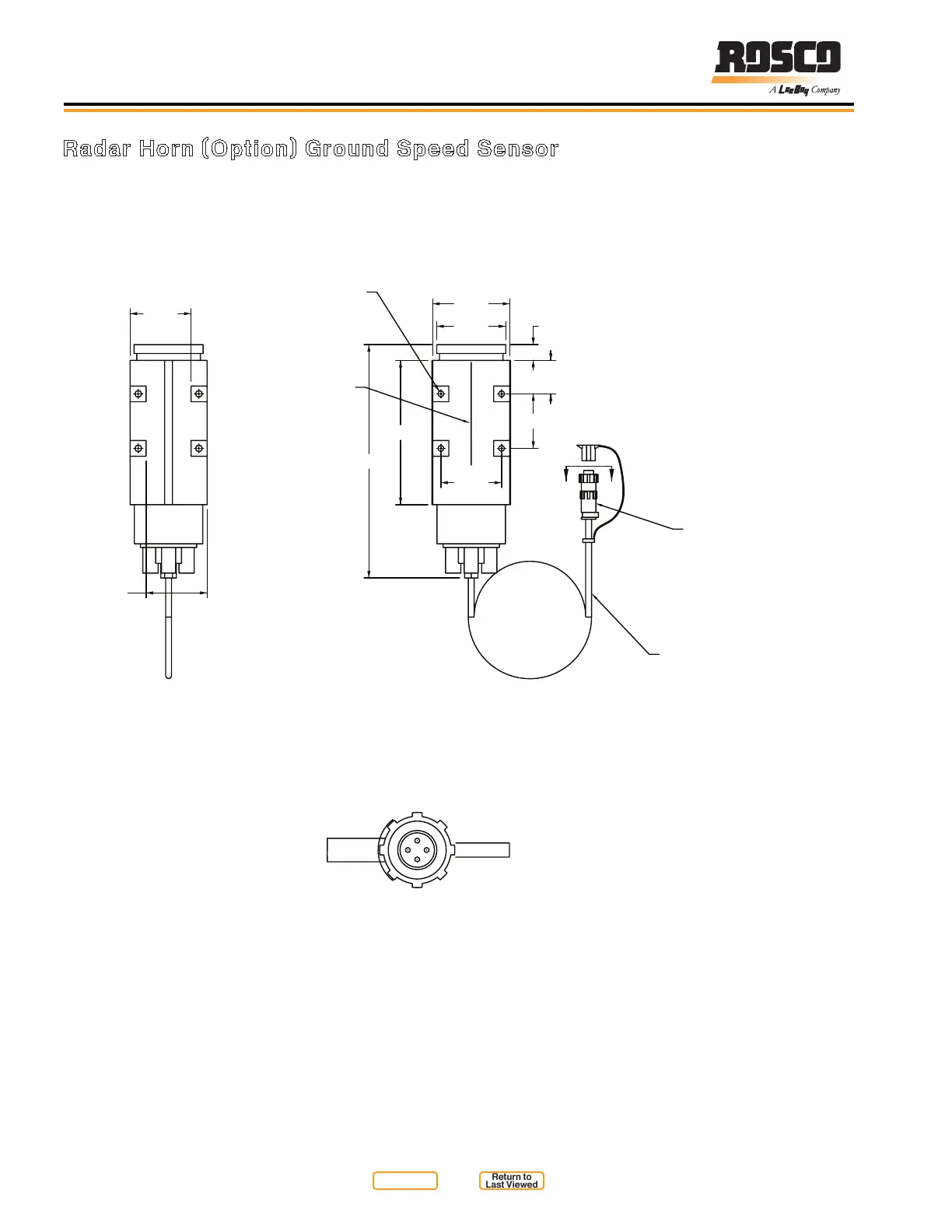

Rosco Maximizer 2B Asphalt Distributor

Illustrated Parts List (IPL)

Radar Horn (Option) Ground Speed Sensor

3.53

3.94

.80

1.71

2.79

7.38

11.93

Ø .30

4 PLCS

3.10

3 WIRE CORD:

RED-BATTERY

BLACK-GROUND

GREEN-SIGNAL

LENGTH-238.0 (19'10")

HOUSING

SEAM

PLUG W/PIN CONTACTS

AMP INC. P/N 45640-1220

3.12

SECTION A-A

SCALE 1 : 1

PIN No. 1-BLACK, 16GA

PIN No. 2-GREEN,16GA

PIN No. 3-RED,16GA

PIN No. 4-RED,26GA,JMPR TO No 3

Figure 10-17
