Rosco Maximizer 2B Asphalt Distributor
Illustrated Parts List (IPL)
LPG Burners, Double Flue, Auto Ignition
NOTES:
1. Set ignition contacts gap at .09 inch.
2. Scrape paint away from hole on Igniter
Bracket, Item 5, to insure proper ground.
3. Add Item 27 to the spark plug wire and
the flame sensor wire at the burner end.
4. Weld Item 38 to the bottom of Item 1 (top
burner on double flue). Drill and bolt Item
3 to Item 38.
5. Double burner shown. Single burner uses
Item 32 instead of Item 33.

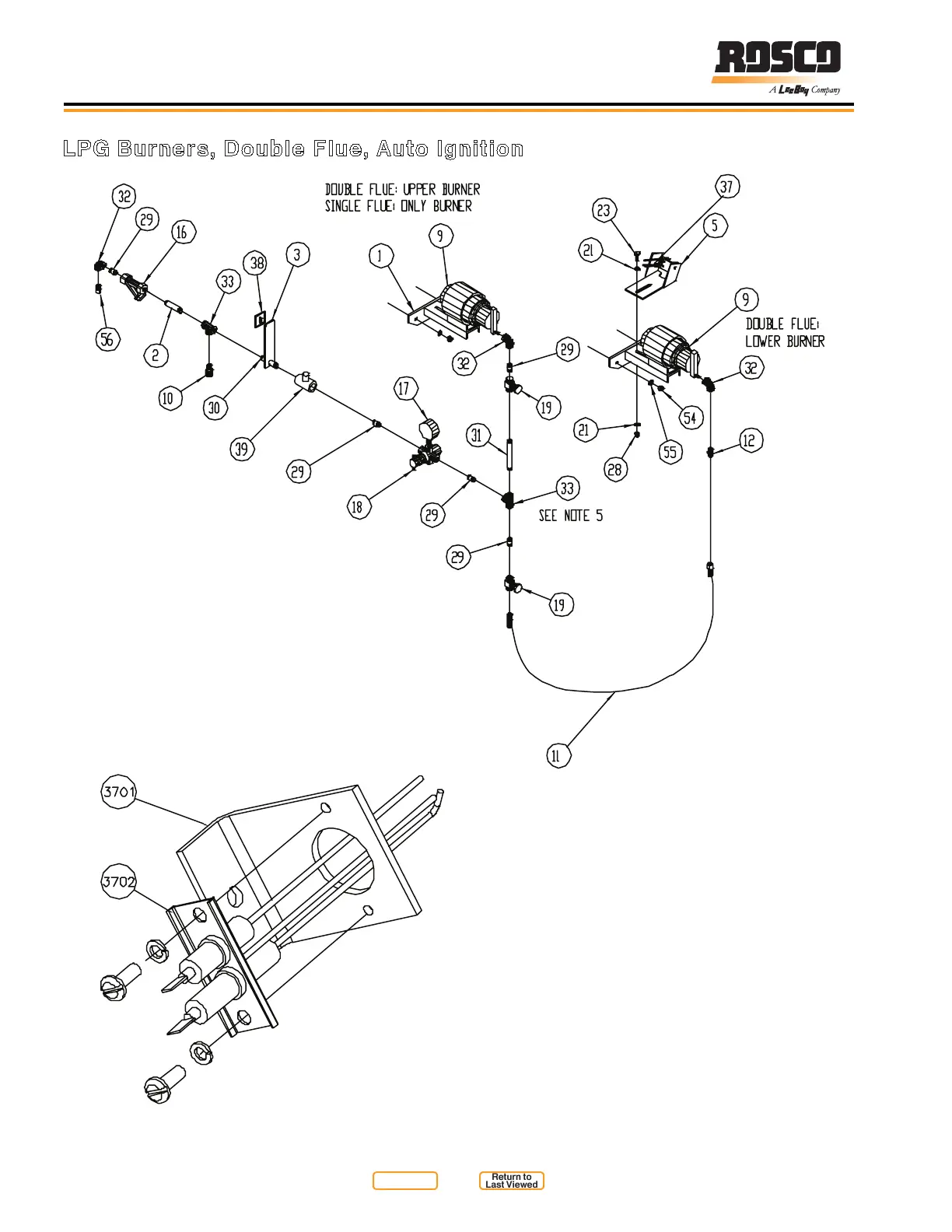

Figure 10-46
