10-62
Rosco Maximizer 2B Asphalt Distributor
Illustrated Parts List (IPL)

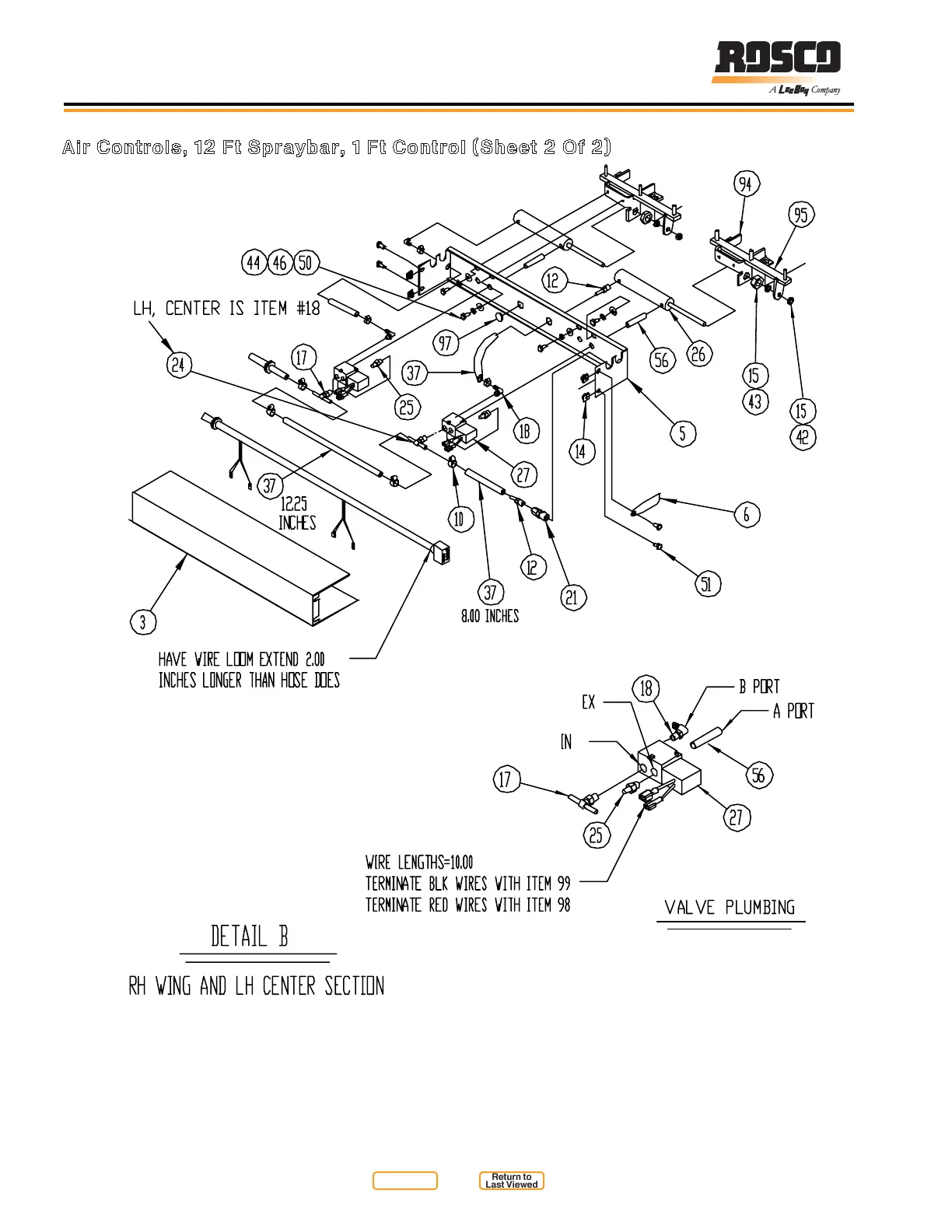

Air Controls, 12 Ft Spraybar, 1 Ft Control (Sheet 2 Of 2)
NOTE:
1. Use Loctite, Item 15, on Items 42 & 43.
2. Use Hole Plugs, Items 96 & 97, in Shroud, Item 5, when .562 & .750 holes are not used.
Figure 10-21
