6-30 Rosco Maximizer 2B Asphalt Distributor
Operation
10 - Handspray Valve
11 - Manifold
12 - Right Spraybar Wing
13 - Left Spraybar Wing
14 - Asphalt Pump
15 - 3-Way Valve
16 - Run and Mode Screens
17 -- Spraybar
1 - Maximizer Tank
2 - Tank Valve
3 - Solvent Valve
4 - Load Line
5 - Vent Valve
6 - Transfer Line
7 - Transfer Valve
8 - Solvent Circlt Valve
9 - 2-Way Valve
0.5
12
HANDSPRAY
UNLOAD
HANDSPRAY
UNLOAD

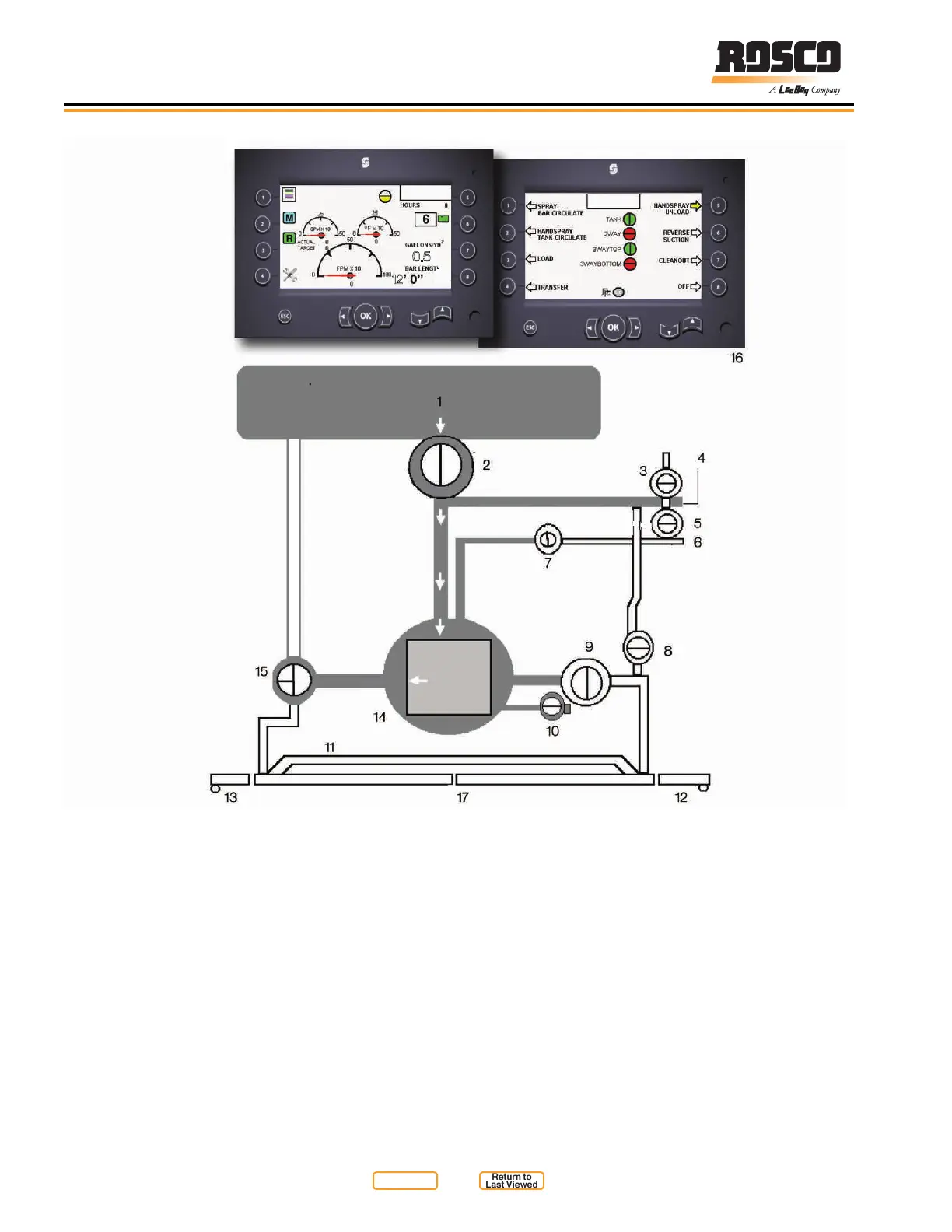

Handspray / Unload Mode
Figure 6-21
Return to
Last Viewed
Return to
Thumb Index
