Rosemount 3491 - Dimensional Drawings

Reference Manual
00809-0100-4841, Rev. AA
May 2007
A-3
Rosemount 3490 Series
DIMENSIONAL
DRAWINGS

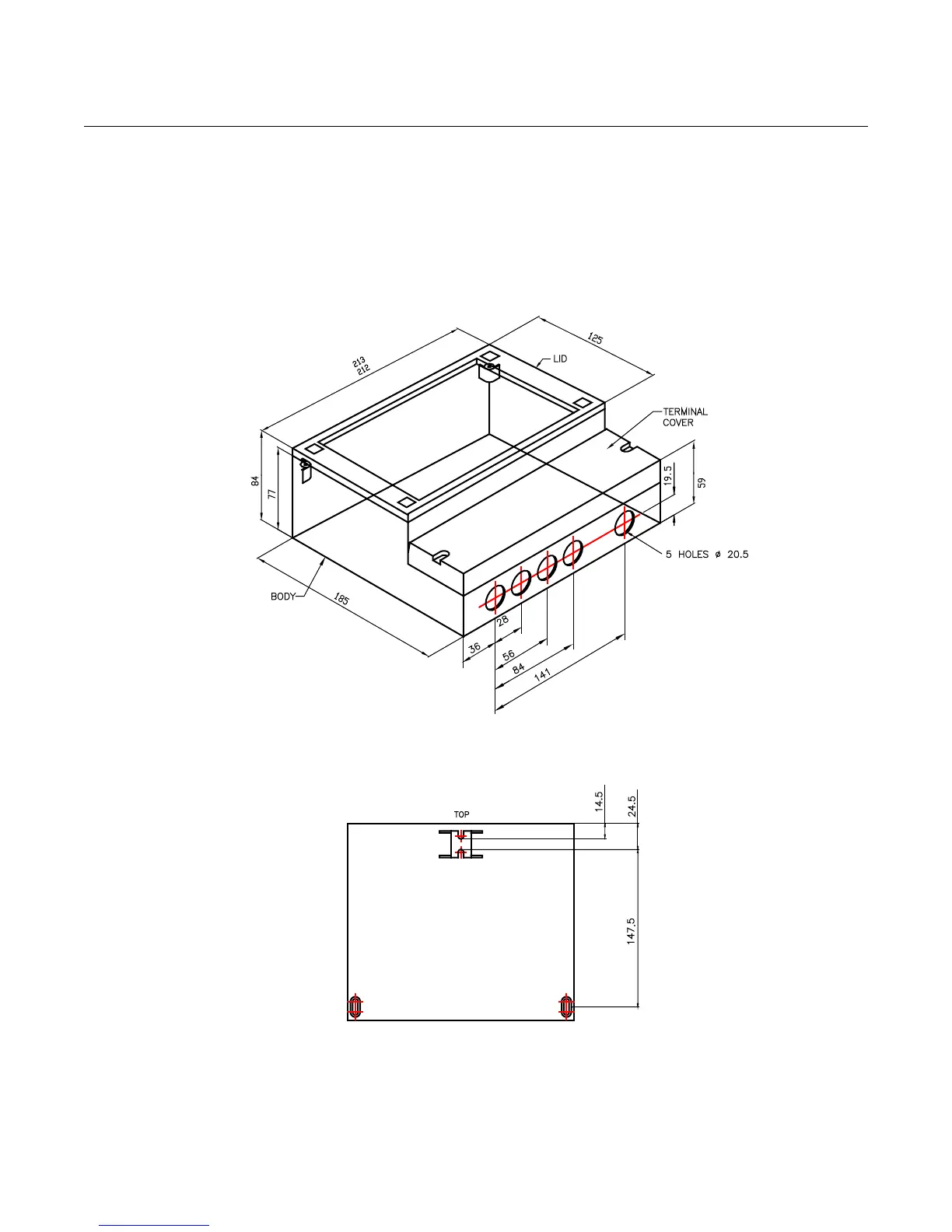

Figure A-1. Dimensions for
IP-rated Wall Mount Box
(3”)
(7.3”)
(8.4”)
(4.9”)
(1.4”)
(1.1”)
(2.2”)
(3.3”)
(5.5”)
(0.8”)
(2.3”)
(0.8”)
(3.3”)
(0.6”)
(0.96”)
(5.8”)
