Fig.2 Optional frontal panel made of wood to cover vertical units
Retaining external guard
It is made with white pre-varnished metal sheet cover that also allows installing the unit
externally, if the wall thickness does not support the casing. It is equipped with appropriate air
intake and supply grids.
It is only available for vertical units.
Remote hygrostat
It is the outdoor element, to be wall-mounted. it activates the unit's switch-on and off. Its room
relative humidity varies from 30-99%. Its precision is +/- 3%.
Supply plenum
It consists of a supply plenum for ducting the unit's supply with no. 2 wound flexible tubes.

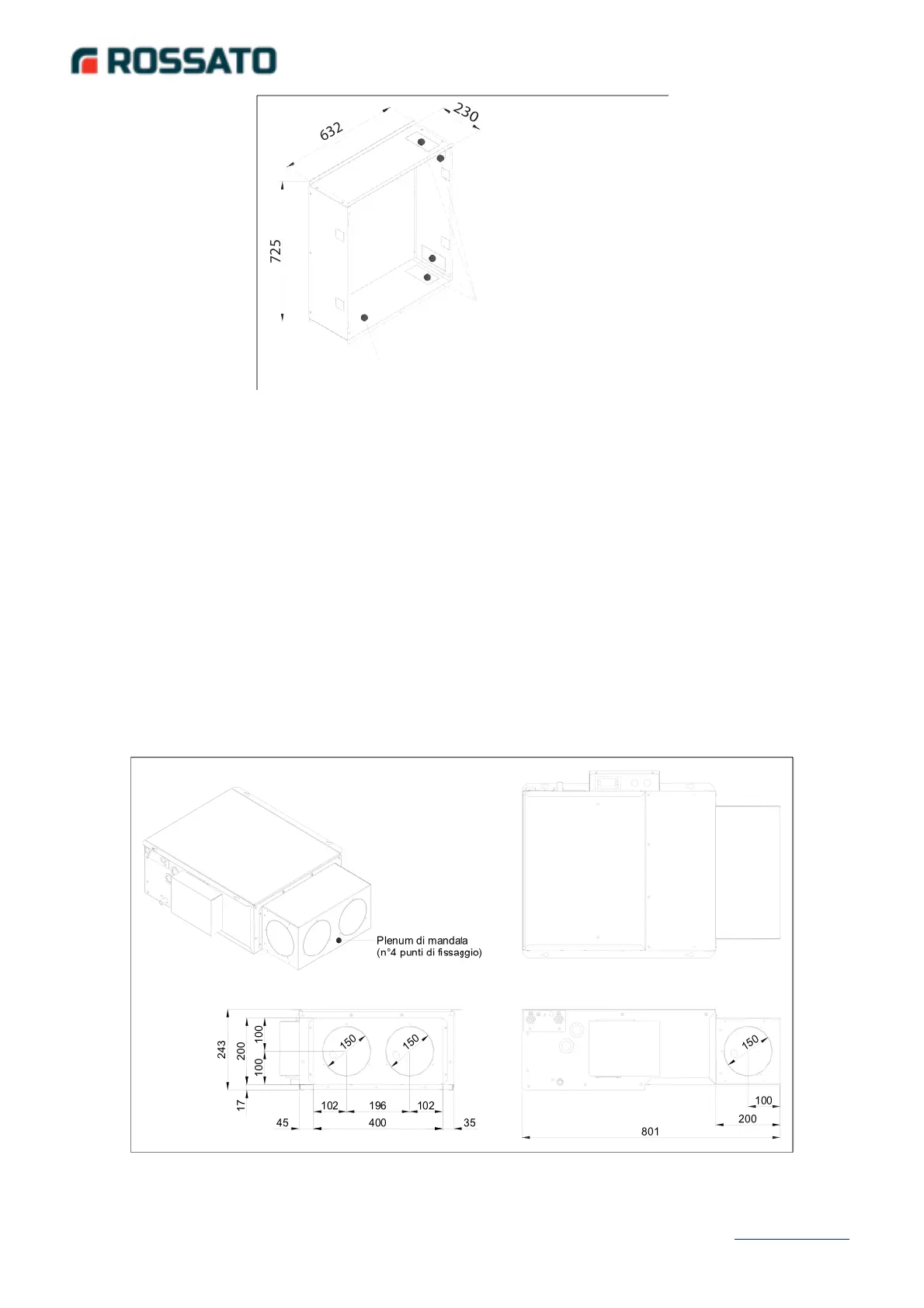

Fig.3 Optional plenum for units CN+ 300
Fig.4 Optional plenum for units CN+ 600
