7. User terminal
the unit leaves the factory in "OFF" (keep the [STAND-BY] key pressed for more than 1 second
to switch it on, and it passes to "ON"), and ready for working in complete autonomy.
The controller governs all machine functions and devices and acts on the external humidistat
recall.
Please note the compressor has a 5 minute delay at start and at re-start, to avoid mechanically
damaging the internal parts.
Any error or problem is displayed in accordance with the DIAGNOSTIC AND ALARMS table
present below.
The ventilation is associated to compressor start, by default setting.
Some of these adjustments can be changed by parameter, by following the PARAMETERS
TABLE below.

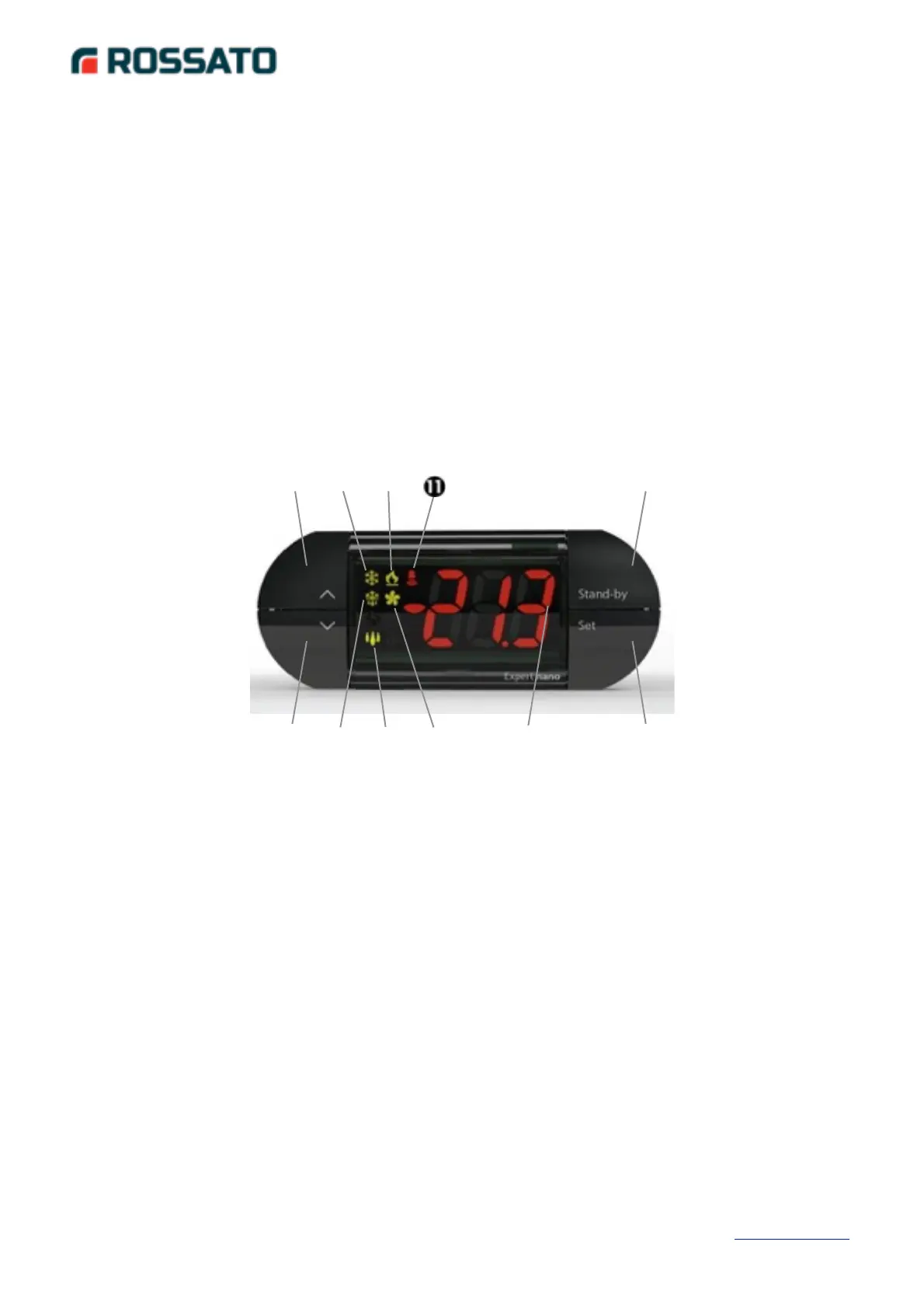

7.1 Buttons and display
1. UP key
It increases the values / Scrolls the parameters upwards.
It silences the buzzer, if present.
2. DOWN key
It decreases the values / Scrolls the parameters downwards.
3. STAND-BY key
Pressed for more than 1 sec it switches the unit on and off.
A confirmation buzzer is emitted upon switch-on.
The unit stops and the display shows the OFF writing, when in
stand-by mode.
4. SET key
Allows setting the parameters.
Resets the buzzer, if present.
It does not work outside programming.
5. TEMPERATURE / PARAMETERS value
6. COLD CALL Icon
Led OFF = Cold Call OFF
Led ON = Cold Call ON
Led flashing = Cold call ON but awaiting for start time
7. Icon HOT CALL (if active)
Led OFF = Cold Call OFF
Led ON = Cold Call ON
8. Icon DEFROSTING CALL
Led OFF = Defrosting Call OFF
Led ON = Defrosting Call ON
9. Icon FANS CALL
Led OFF = Fan Call OFF
Led ON = Defrosting Call ON
10. Icon DIGITAL INPUT ACTIVATED BY HUMIDISTAT (if
active)
Led On = Digital input active
Led Lampeggiante = Compressor switched off for lack
of consensus from humidistat
11.
Icon ALARM PRESENCE
Led OFF = No alarm present
Led Lampeggiante = Alarm present
