6. Installation
6.1 Positioning
It is recommended to pay attention to the following points to determine the best location where
to install the unit and its connections:
size and origin of hydraulic tubes;
location of the power supply;
easy access for maintenance and/or repair works;
solid fixing point.

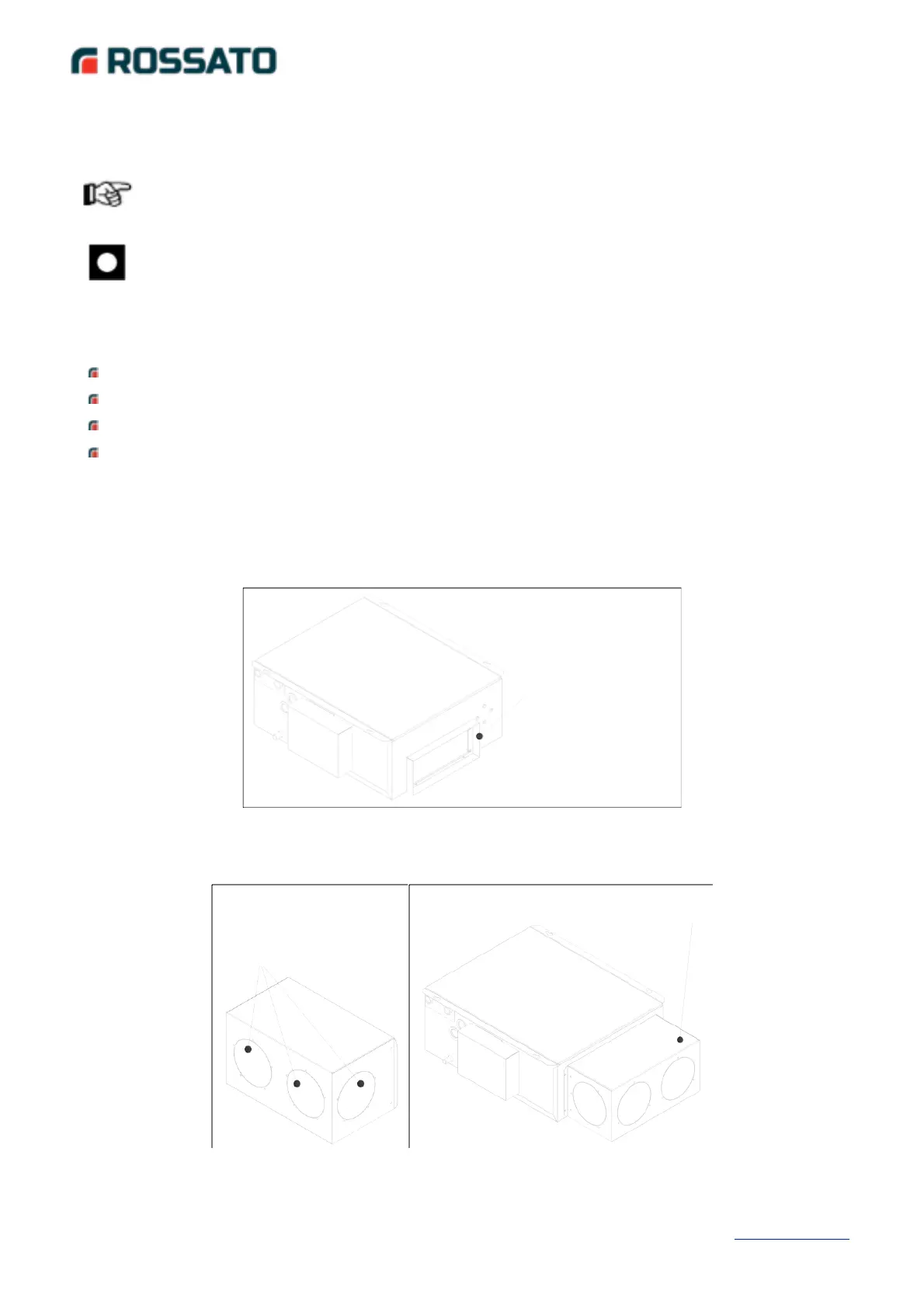

6.1.1 Assembly of supply flange for CN+ 300 unit (optional)
For unit ducting it is necessary to install the supply flange for connection. Follow the illustration
below to assemble:
Horizontal units
6.1.2 Assembly of supply plenum for CN+ 300 unit (optional)
NOTE:
All Ecodry units are designed and built for indoor installation
CAUTION:
Do not install the unit outdoor and make sure that it is not subject to atmospheric agents, such as
rain, hail, humidity and frost.
Ecodry IN+CN+_20190801 Page di Rossato Group Srl27 43
fix the flange
with the 4 supplied screws
fix the plenum to the unit with
the 4 supplied screws
with nippers open 2 of 4
preformed holes, insert 2 nozzles
inside and fix them outside with
10 supplied screws
