Rossato Ecodry CN+ - Assembly of Supply Flange (Optional); Assembly of Supply Plenum (Optional); Ceiling Mounting and Vibration Dampers; Casing Assembly and Unit Positioning

Ecodry IN+ CN+ - Manual of installation, use and maintenance

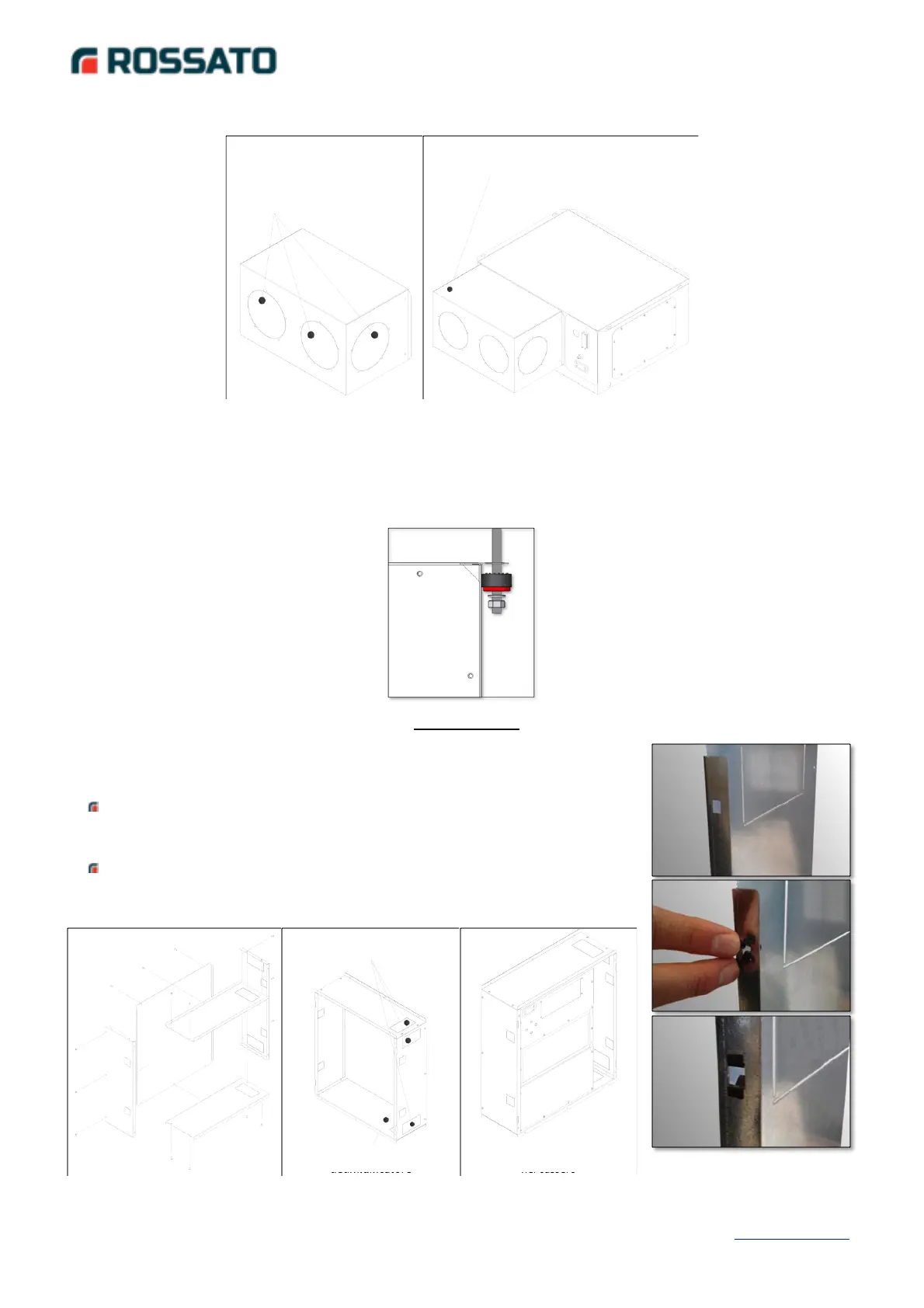

6.1.3 Assembly of supply plenum for CN+ 600 unit (optional)
6.1.4 Fixing of unit to the ceiling
We recommend installing vibration dampers for each anchoring point to avoid transmitting
noise and vibrations, as shown at the side.
Vertical unit
6.1.5 Casing assembly (optional) and unit’s positioning unit’s
positioning
Use the screws in the package to fix the components. Pay
attention to base (its folds must face downwards) and cover (its
folds must face upwards) assembly. [images below]
Insert the 4 closing springs inside the rectangular holes of the
side panels, for subsequent fixing of closing panel. [photo on
right]
Ecodry IN+CN+_20190801 Page  di  Rossato Group Srl28 43
with nippers open 2 of 4
preformed holes, insert 2 nozzles
inside and fix them outside with
10 supplied screws
fix the plenum to the unit with the
4 supplied screws
Dehumidifier
support surface
Positioning of unit
in the casing
Position of
hydraulic connections
