Ecodry IN+ CN+ - Manual of installation, use and maintenance

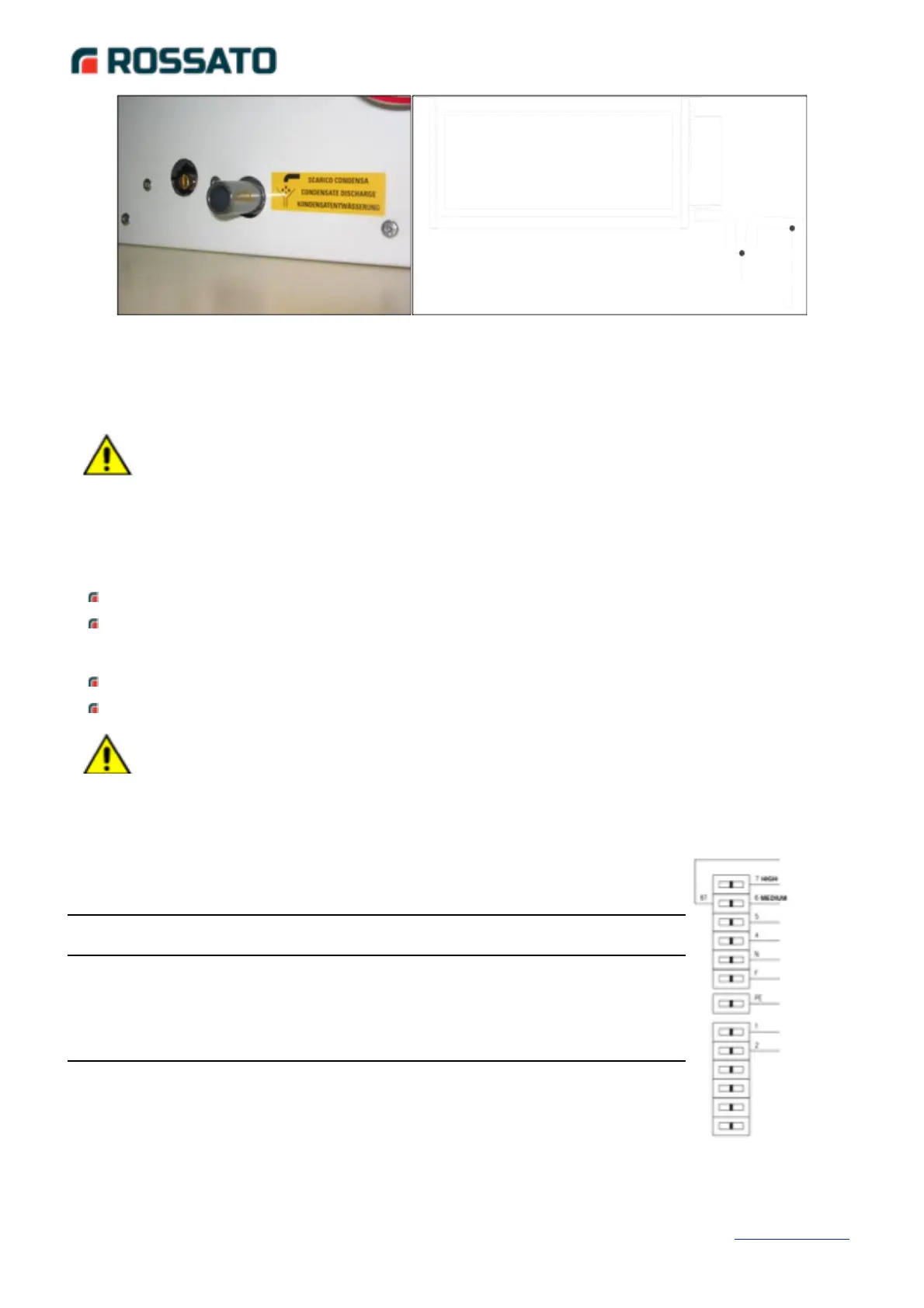

6.4 Electrical connection
Open the electrical panel, insert the power cable and other cables needed in the provided
holes, connect these to the terminals and close the panel.
The electrical connection, power cables and safeguards must be made according to the
attached wiring diagram and in compliance with local and international standards.
Recommended power supply line:
models 300 = cable FROR - 3G1,5
models 600 = cable FROR - 3G2,5
Recommended protection to be inserted upstream of the line:
models 300 = switch MGT - C10
models 600 = switch MGT - C16
6.4.1 Connection of models 300
DANGER:
The inclination of the drain pipe must always allow water to flow from the dehumidifier towards
outside. If this does not occur, overflows can cause condensation to leak from the unit.
DANGER:
Fan wiring and speed change must be done with voltage disconnected.
CONNECTION OF FAN: MEDIUM SPEED CABLE 6; HIGH SPEED CABLE 7. MEDIUM SPEED IS
STANDARD SET: IF MEDIUM SPEED IS NOT ENOUGH, CHANGE THE CABLE 61 AND CONNECT IT
WITH CABLE 7
CONNECT TO THESE 2 TERMINALS THE FREE RELAIS OF HYGROSTAT. IF THE HYGROSTAT NEEDS
A SUPPLY OF 230V, CONNECT IN PARALLEL THE SUPPLY OF DEHUMIDIFIER (TERMINALS F AND N)
CONNECT TO SUPPLY: CONNECT PHASE, NEUTRAL AND PE PROTECTING DEHUMIDIFIER AND LINE
WITH AN UPSTREAM PROTECTION (SEE COVER FOR SUGGESTED PROTECTION)
RS485 BUS CONNECTION [OPTIONAL]: CONNECT TO THESE 2 TERMINALS THE BUS LINE FROM A
DOMOTIC OR SUPERVISION SYSTEM. SEE THE MANUAL OF RS485 SERIAL
Ecodry IN+CN+_20190801 Page di Rossato Group Srl31 43
