Rossato Ecodry CN+ - Required Space for CN+ 300 Units; Required Space for CN+ 600 Units

Ecodry IN+ CN+ - Manual of installation, use and maintenance
6.6.2 Respect space for unit CN+ 300
6.6.3 Respect space for unit CN+ 600
CAUTION:
The indicated heights are to be considered the minimum useful for the unit's correct operation and
for subsequent maintenance operations.

CAUTION:
The indicated heights are to be considered the minimum useful for the unit's correct operation and
for subsequent maintenance operations.

Ecodry IN+CN+_20190801 Page  di  Rossato Group Srl34 43

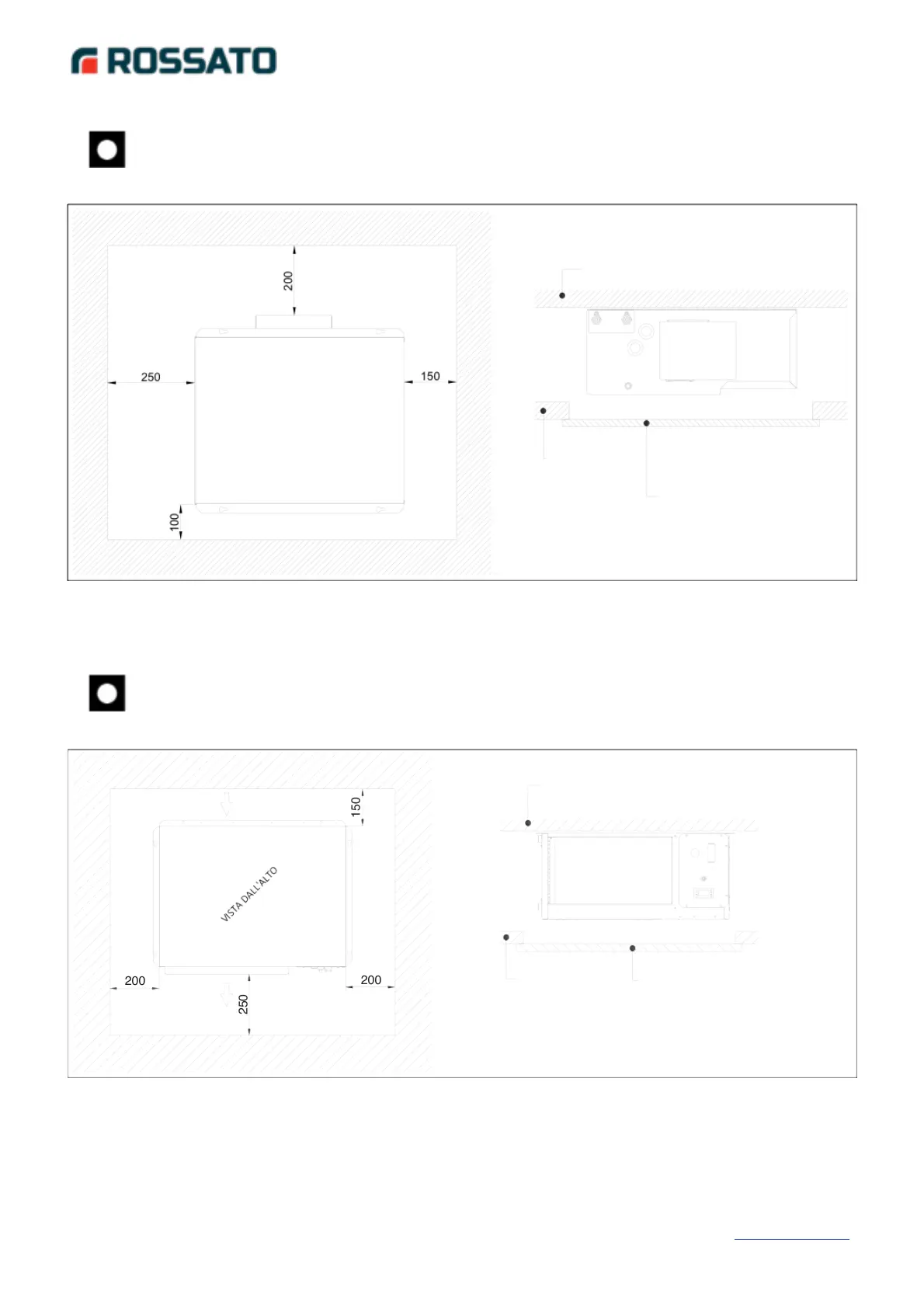

Plasterboard
prepare a removable panel with
grids to ensure a complete and
easy access to the unit
UPSIDE VIEW
Ceiling
200
200
250
150
Access side to technical room
side for hydraulic connections
prepare a removable panel with grids
to ensure a complete and easy access
to the unit
Plasterboard
Ceiling
