Rossato Ecodry CN+ - Page 21

Ecodry IN+ CN+ - Manual of installation, use and maintenance

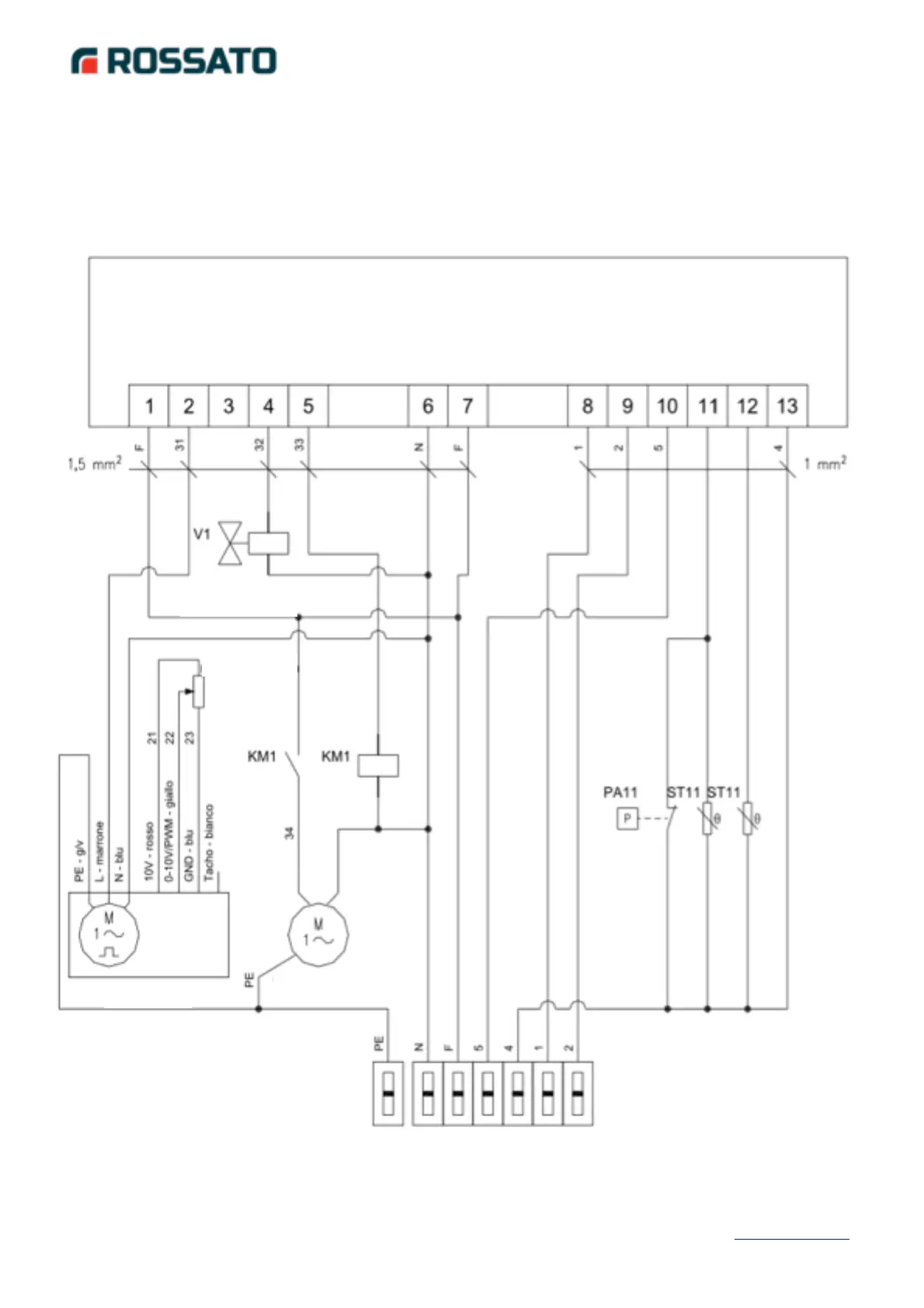

4.2.4 Electrical diagram model Ecodry CN+ DC and IN+ DC 600 (hybrid)
"
Ecodry IN+CN+_20190801 Page  di  Rossato Group Srl20 43
USER TERMINAL
OPTIONAL CABLE 1 AND 2:
only in versions with
RS485 serial connection
high pressure switch
inlet water temp. probe
defrost temp. probe 1
COMPRESSOR
FAN
POTENTIOMETER
ELECTROVALVE GAS
