Ecodry IN+ CN+ - Manual of installation, use and maintenance

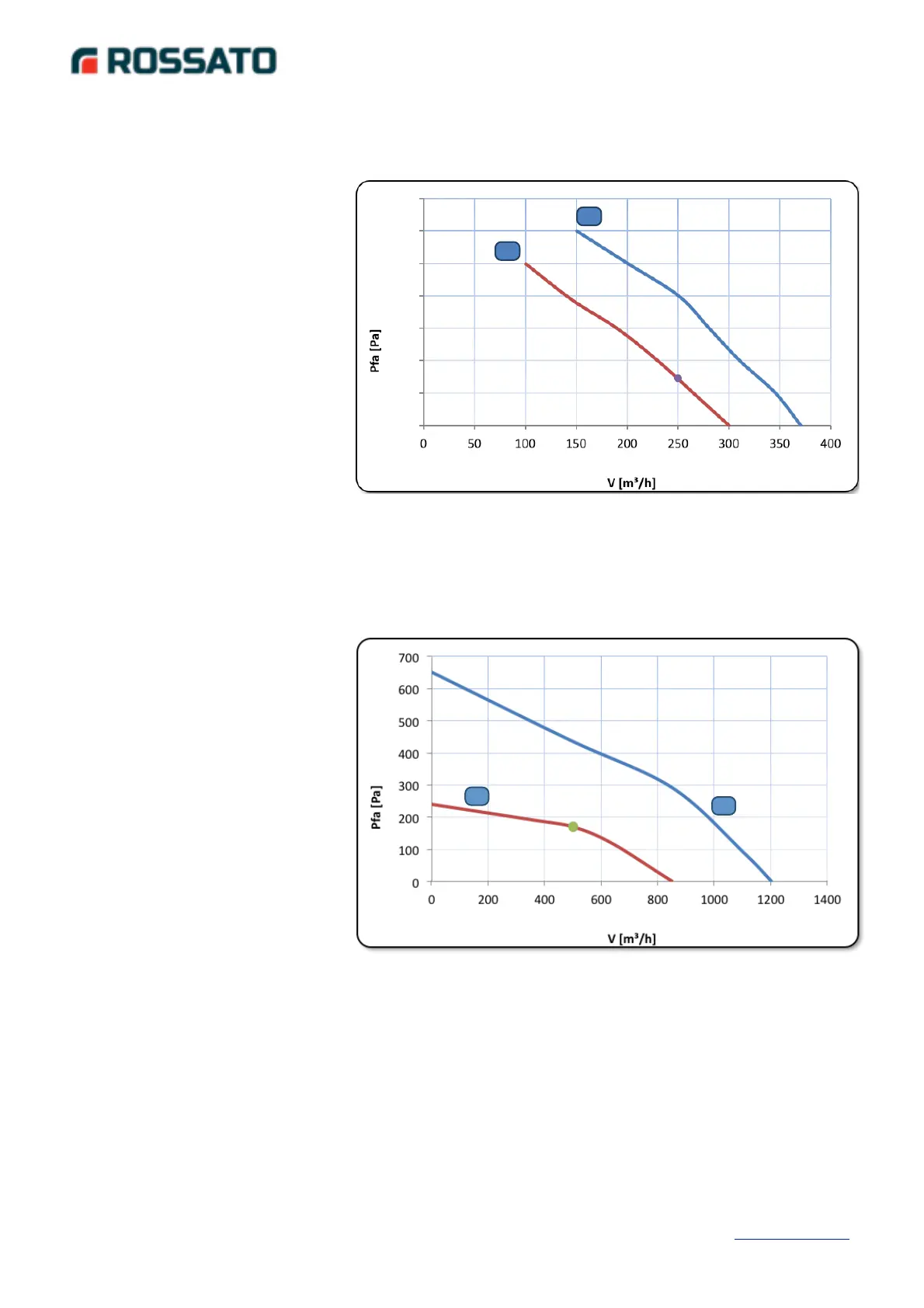

5.3.1 Model 300 - 2 speeds
A 2 speed fan is mounted in the model 300; default set is on average speed, that can be easily
set on high speed if that is not sufficient. Refer to the installation paragraph.

5.3.2. Model 600 - power meter
An electronic fan with incorporated inverter and brushless motor regulated by power meter is
mounted on the model 600; default set is on average speed, that can be easily set on high
speed if that is not sufficient. Refer to the installation paragraph.

CURVE A = maximum speed
CURVE B = medium speed
B
A
700
600
500
400
300
200
100
0
CURVE A = maximum limit
CURVE B = suggested limit
B
A
Ecodry IN+CN+_20190801 Page  di  Rossato Group Srl22 43
