Rosslare AC-825IP - Output Wiring Configurations

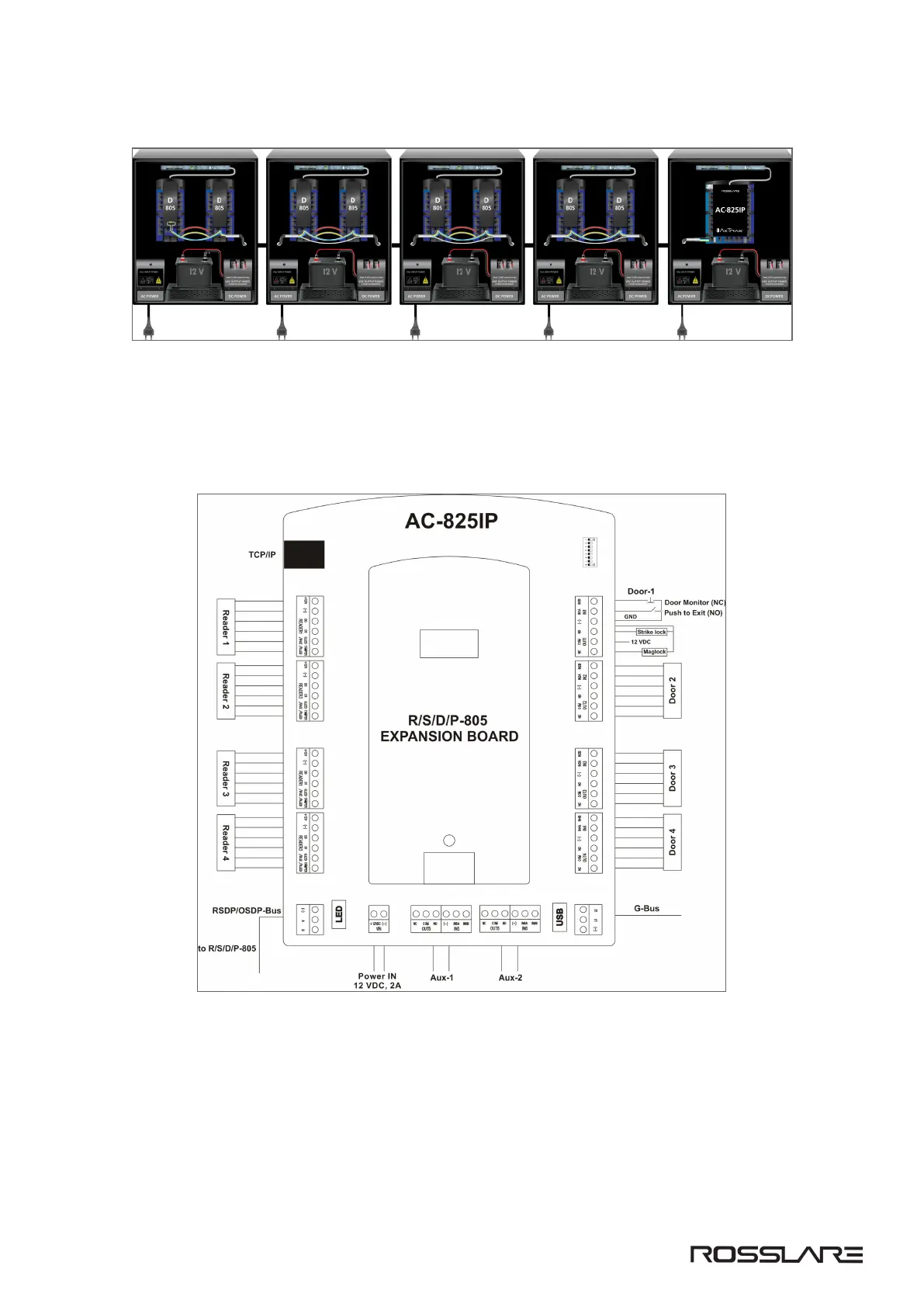

Figure 19: Daisy Chain Setup
The first expansion board is connected to the AC-825IP panel using the OSDP/RSDP bus (serial bus) at the bottom
left of the panel.
Figure 20: OSDP/RSDP Bus on AC-825IP Panel
Any subsequent expansions are connected to each other using the RSDP bus located the bottom center of the
expansion.
