8 x Hydraulic system connection
FA ROTEX Solaris RPS4 - 06/2015
37
8 Hydraulic system connection
8.1 Schematics
WARNING!
Temperatures in excess of 60 °C can arise in the solar
storage tank.
Ɣ Fitting scald protection.
– Scald protection VTA32 ( 15 60 15)
– Screw connection set 1" ( 15 60 16)
CAUTION!
The ROTEX units can also be optionally fitted with
gravity breaks ( 16 50 70) made of plastic. They
are suitable for maximum operating temperatures of
95 °C. If a heat exchanger is operated at temperatures
greater than 95 °C, another gravity brake must be
installed in the building.
A selection of diagrams of the most common installed
systems is shown below. The arrangements shown are
only examples, and are no substitute for careful system
planning. For more diagrams, please see the ROTEX
home page at http://www.rotex.de.

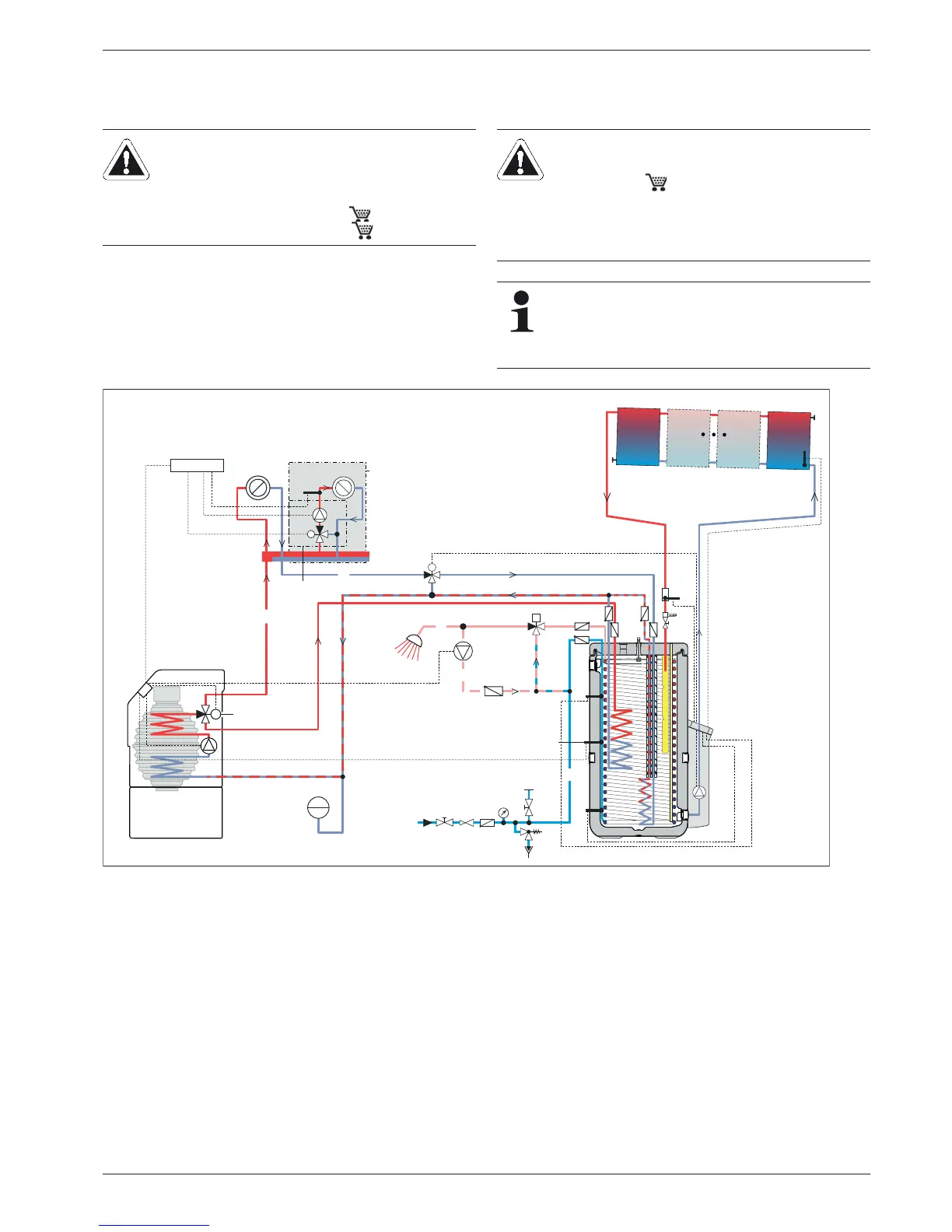

Fig. 8-1 Standard Solaris incorporation with SCS 538/16/0 and A1 Gas or A1 Oil condensing boiler
1)
P
S
RPS4
FLS
SK
8
MIX
H
2
P
MI
t
MI
M
5
P
K
SV
7
1
CW
MAG
DHW
2
3
4
6
RoCon
(BF)
RoCon M1
t
DHW
3UV1
3UV3
AB
B
M
A
M
H
1
S#H
VS
7a
7
T
S
P
Z
T
R
A1
MK1/MK2
T
V
FLG
T
K
