6
FA ROTEX Solaris RPS4 - 06/2015
3 x Product description
3 Product description
3.1 Layout and constituent parts of the Solaris
system

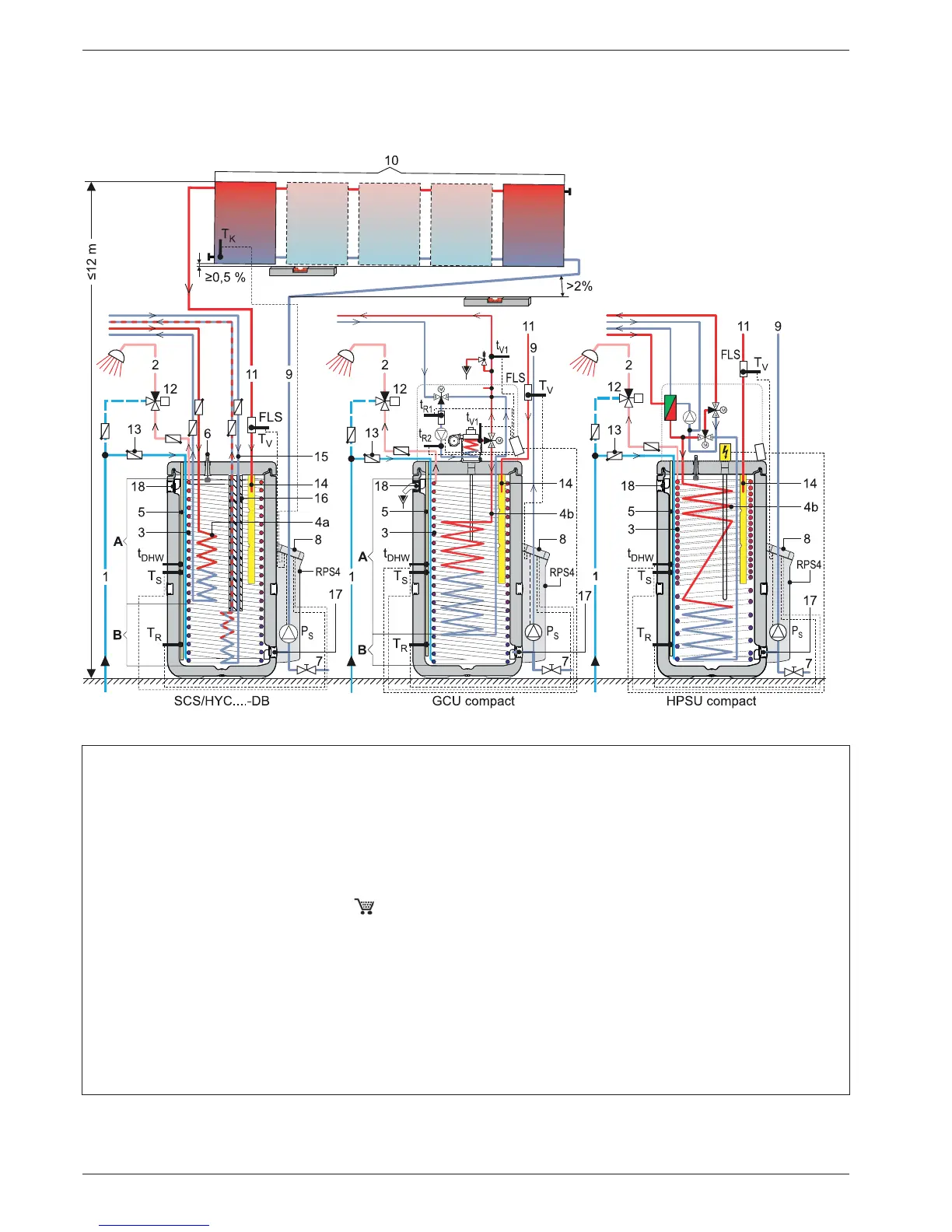

Fig. 3-1 Standard layout of a ROTEX Solaris installation (ROTEX recommends double-sided connection)
1 Cold water connection line
2 Domestic water (hot) distribution line
3 Stainless steel corrugated heat exchanger for domestic water
(hot)
4a Stainless steel corrugated heat exchanger for storage tank charg-
ing
4a Stainless steel corrugated heat exchanger for storage tank charg-
ing and heating support
5 Submersion sleeve for storage, return temperature sensors
6 Fill level display
7 Filling and draining cock (accessory KFE BA, 16 52 15)
8 Solaris R4 controller
9 Solar return line (at the bottom on the solar panel)
10 Solar panel array
11 Solar flow line (at the top on the solar panel)
12 Thermal mixing valve (scalding protection, provided by customer)
13 Convection brake (accessory)
14 Solar flow layering pipe
15 Corrugated stainless steel heat exchanger for heating support
16 Thermal insulation sleeve for corrugated stainless steel heat ex-
changer for heating support
17 Solar return connection
18 Safety overflow connection
A Zone with water for domestic use
B Solar zone
FLS Solaris FlowSensor (flow measurement)
P
S
Solaris operating pump
RPS4
Control and pump unit
t
DHW
Storage temperature sensor
T
K
Solaris solar panel temperature sensor
T
R
Solaris return flow temperature sensor
T
S
Solaris storage cylinder temperature sensor
T
V
Solaris inflow temperature sensor
GCU compact
Gas Combi Unit
HPSU compact
Solar storage tank with integrated interior heat pump unit
SCS/HYC - DB
Energy storage Sanicube Solaris / HybridCube
Tab. 3-1 Legend for fig. 3-1
