FA ROTEX Solaris RPS4 - 06/2015
9 x Technical data
9.3 Connection allocation RPS4 controller
BSK Burner inhibit contact
CONF
Programming socket for
Software update
FLS FlowSensor
TS Storage cylinder temper-
ature sensor
TR Return flow temperature
sensor
TK Collector temperature
sensor
P
S
Solar operating pump
F1 Fuse
Power
Mains supply

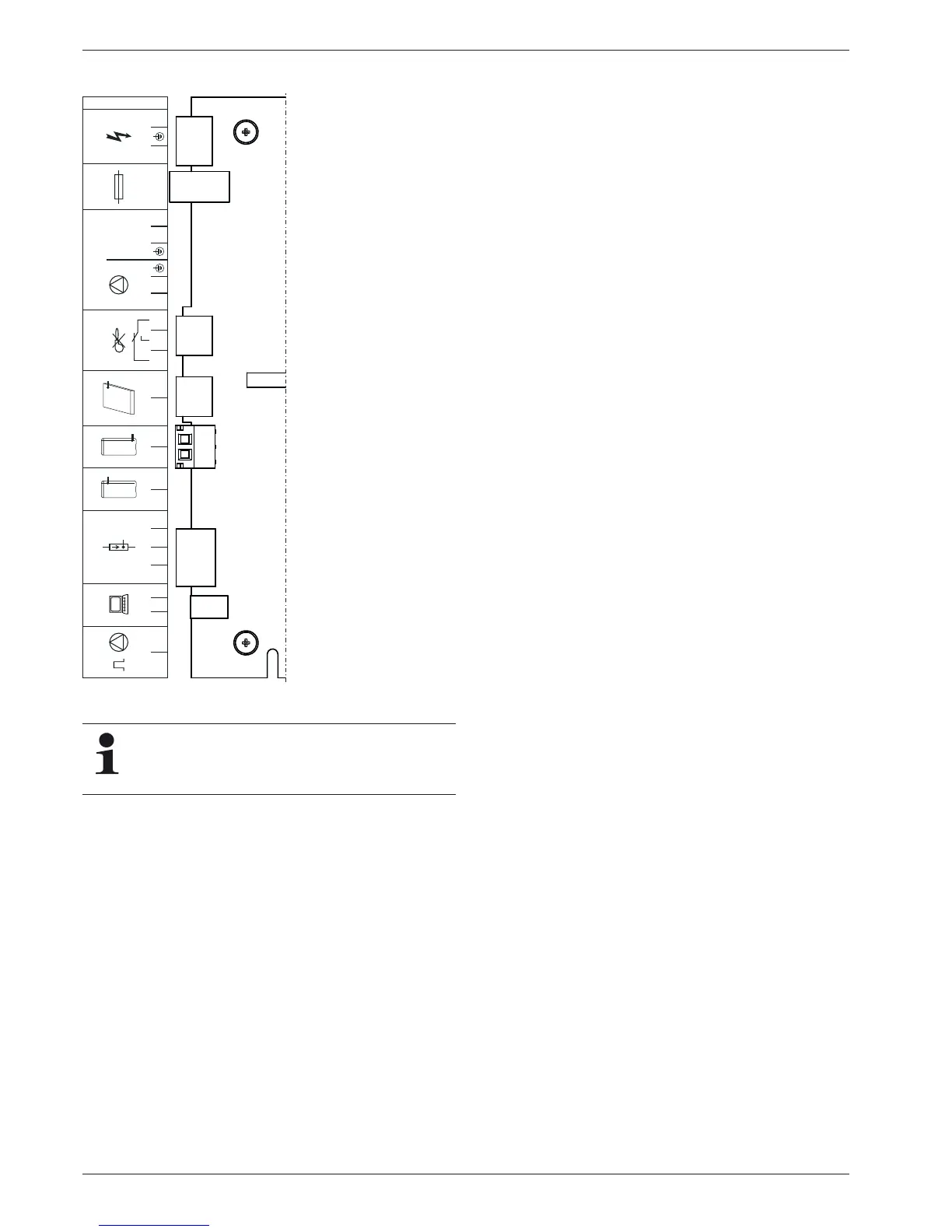

Fig. 9-3 Terminal assignment
The technical data for the ROTEX condensing boilers,
heat pumps and hot water storage tanks is located in
the ROTEX price list and the relevant technical docu-
mentation for the products.
FLS TRTS TK
BSK
P1 F1
250V
T2A
POWERCONFPWM
007.16 108 99_00
n.b.
NN LL11111113
3
22222224
3
