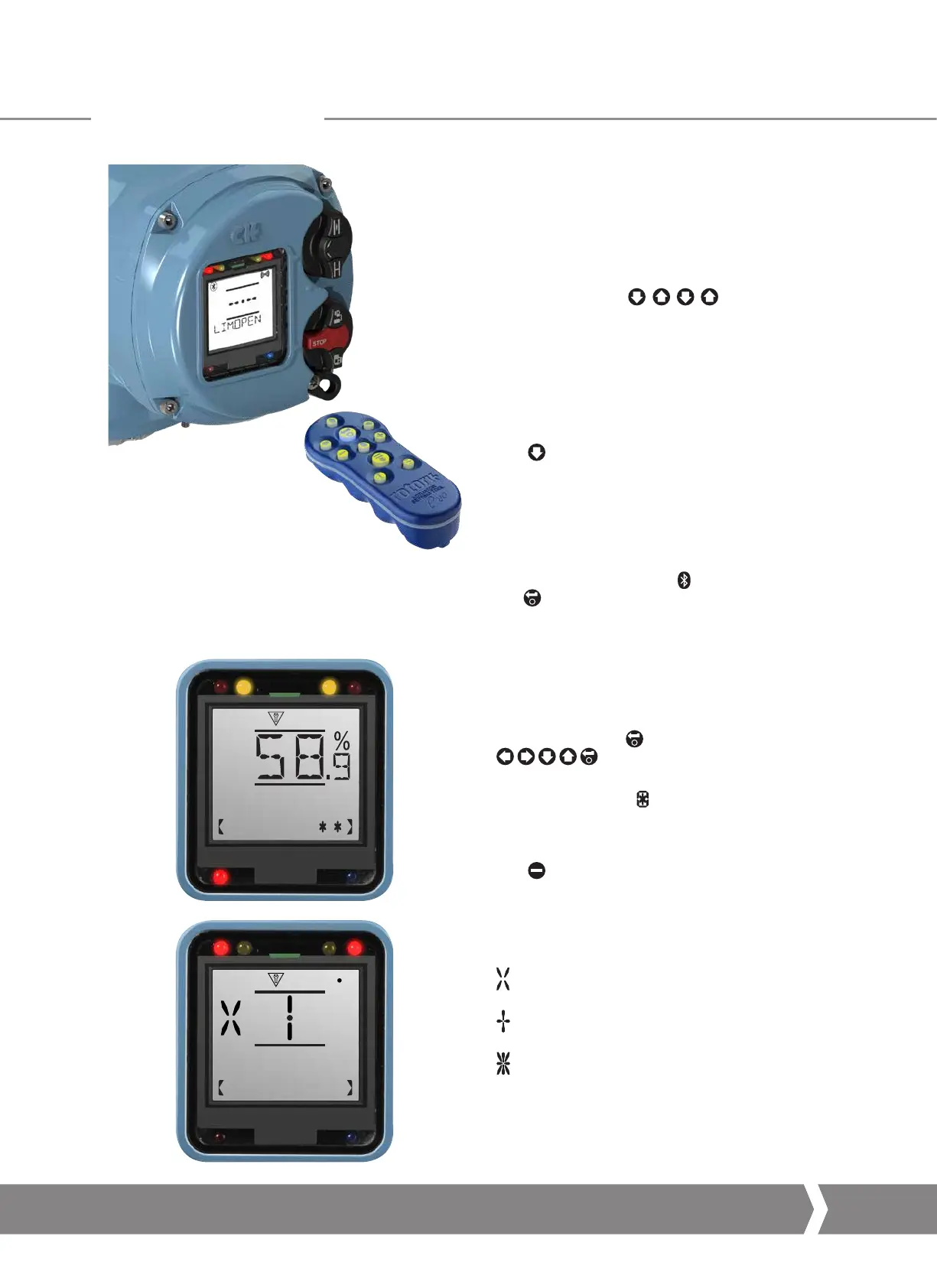

9.7 Digital Switch Mechanism Setting
9.7.1 Entering Configuration mode
Access to configuration mode will vary depending on the
navigation method employed. To access configuration mode
with the local selector, ensure the actuator is in Stop mode and
input the following sequence:
Each command input must be completed within one
second of the last and the selector knob must return to
its default rest position between each input.
To access configuration mode with the Bluetooth Setting Tool,
ensure the actuator is in Stop mode and point the setting tool
directly at the IrCK LED.
Press to initiate communication. The IrCK symbol will
be shown when an input from the Bluetooth Setting Tool is
registered by the Centronik Control Module.
If the optional Bluetooth module is fitted, the Setting Tool will
begin communication through IrCK until a secure Bluetooth
link has been established. To confirm a Bluetooth connection
has been successful, the top left symbol on the Centronik
display will change from IrCK to and the Bluetooth Setting
Tool button will illuminate solid blue.
For IrCK communication, the Bluetooth Setting Tool must
be aligned to the IrCK LED at all times.
9.7.2 Entering the User Password
The password entry screen will be displayed with the default
password visible. Press to confirm this entry or use
to enter a different password. For instruction
on changing the user password, refer to PUB111-005.
Blank spaces will fill with whilst modifying the password text.
Once a valid password has been entered the display will show
the current active permission level with a symbol and text.
Press to return to the main menu.
Actuator settings cannot be modified in Remote.
The symbol shown to the left side of the display will reference
the following permission levels:
User level permission to provide basic access to settings
for commissioning and configuration purposes.
Super User level permission to provide access to more
advanced setting features.
Service level permission for engineer access only.
