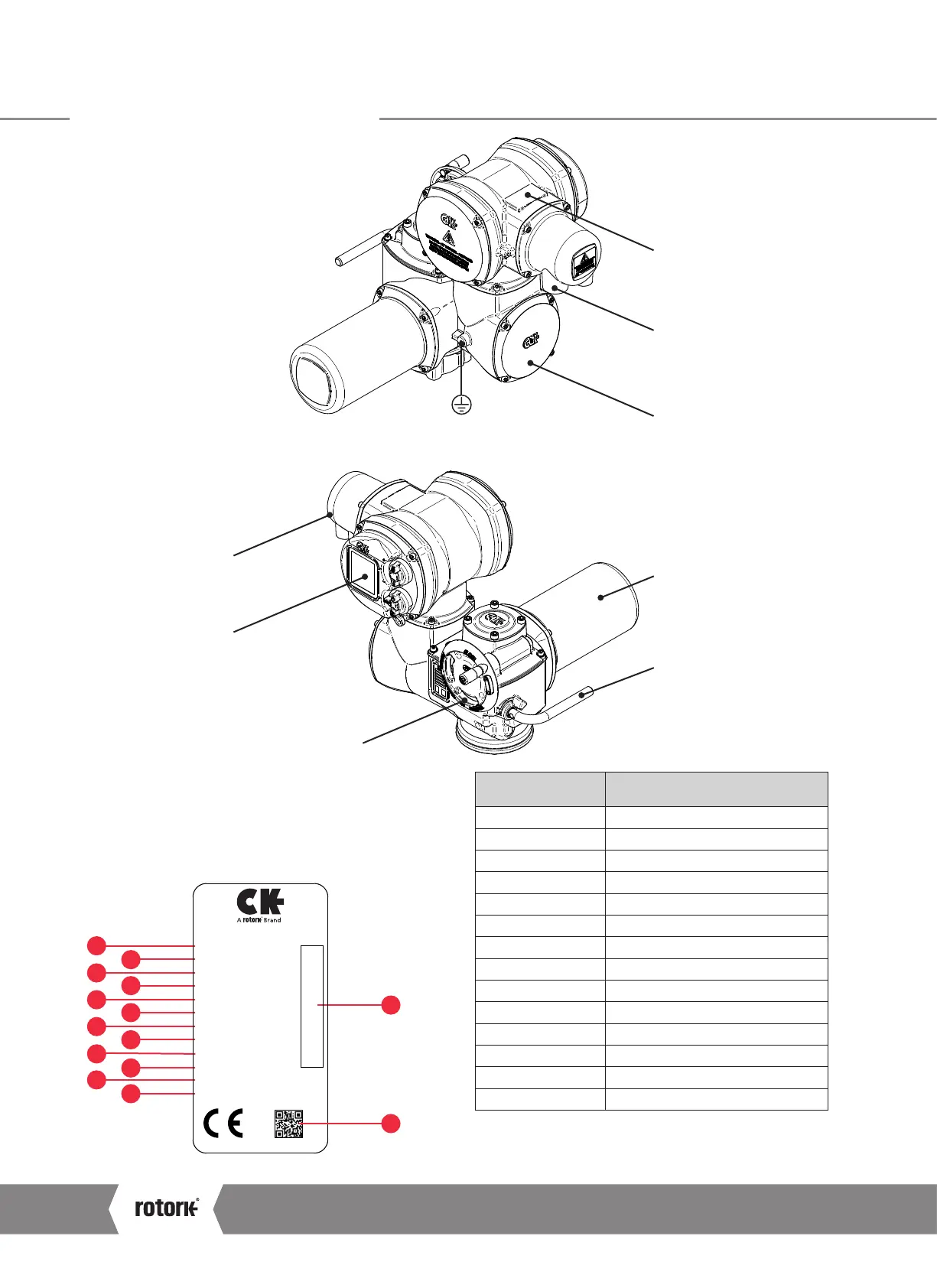

4 Actuator Identification
Atronik Module Nameplate
The Atronik name plate will enable you to identify your unit.
Example below:
Mark Description
1 Model
2 Serial Number
3 Power Supply
4 Customer Supply
5 Backup Supply
6 P max
7 Wiring Diagram
8 Internal Diagram
9 Temperature Range
10 Manufacturing Year
11 Serial No. Code Bar
12 QR Code
13 IP Degree
14 Address
Atronik Name Plate
Conduit Entries
Switch Mechanism Cover
Protective Earth Connection
(M6x1p x 10 Deep)
Plug and socket housing
Atronik Interface
Hand Wheel
Motor
Hand / Auto lever
4.2 CKa Atronik
1
2
3
4
5
6
7
8
9
10
13
14
11
: 06.2018Year
: -30ºC/+70ºC
: D0000000
: K00000000
: 24VDC/5W
: 3~380V/50Hz
: ATRONIK
: S0000000102
Temp. range
: 3,5
Internal diag.
Wiring diag.
Bkp supply
Cust. supply
P max. kW
Power supply
Model
Serial nº
: --
Supplied and Tested by Rotork
IP 68
Pol.Ind.110, 20100 (Spain)
12
CK Range Safe Use and Installation Manual
8
