Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features

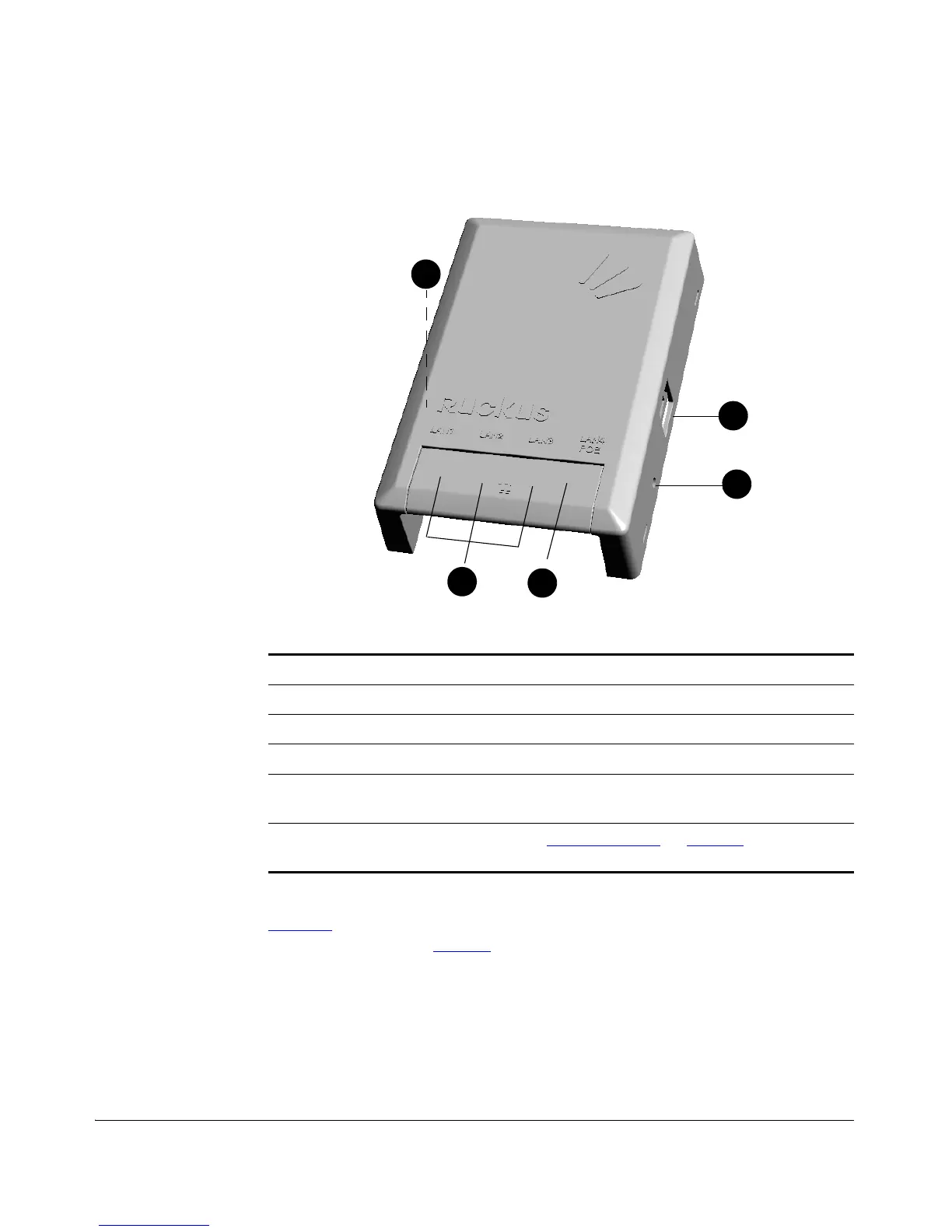

Figure 15. ZF7025-US front view
Rear Panel Features
Figure 16 shows the rear panel of the ZF7025-US model. For a description of each rear
panel element, refer to Table 2 1
.
Table 20. ZF7025-US front view
Number Name Description
1 Pass Through port Pass through port.
2 Power Input Optional 48V DC power input.
3 LAN1-LAN3 Three 10/100 RJ-45 Ethernet Ports.
4 LAN4 One 10/100 RJ-45 LAN port with PoE out. Supports
802.3af PSE Class 0/2 (depending on power input).
5 Reset Buttons (left
side)
Refer to “
Reset Buttons” on page 33 for details.
