Hardware Installation and Reference Guide Product Installation
49
Install a baffle on the location where an expansion module is removed to ensure normal ventilation
and dissipation and avoid dust in the chassis.
3.5 Installing and Removing the Power Modules
Wear anti-static gloves before the following operations.
Installing an RG-PA70I or RG-PA150I-F Power Module
Step 1: Take a new power module out of the package and confirm the input mode and the input
parameters of the power module match the requirements.
Step 2: Remove the power baffle and take the plane printed with power information as the top panel of
the power module. Hold the handle of the power module with one hand, and hold the end of the power
module with the other hand. Insert it into the chassis along the guide rail uprightly and slowly until a
click is heard, and make sure that it is in good contact with the power slot.

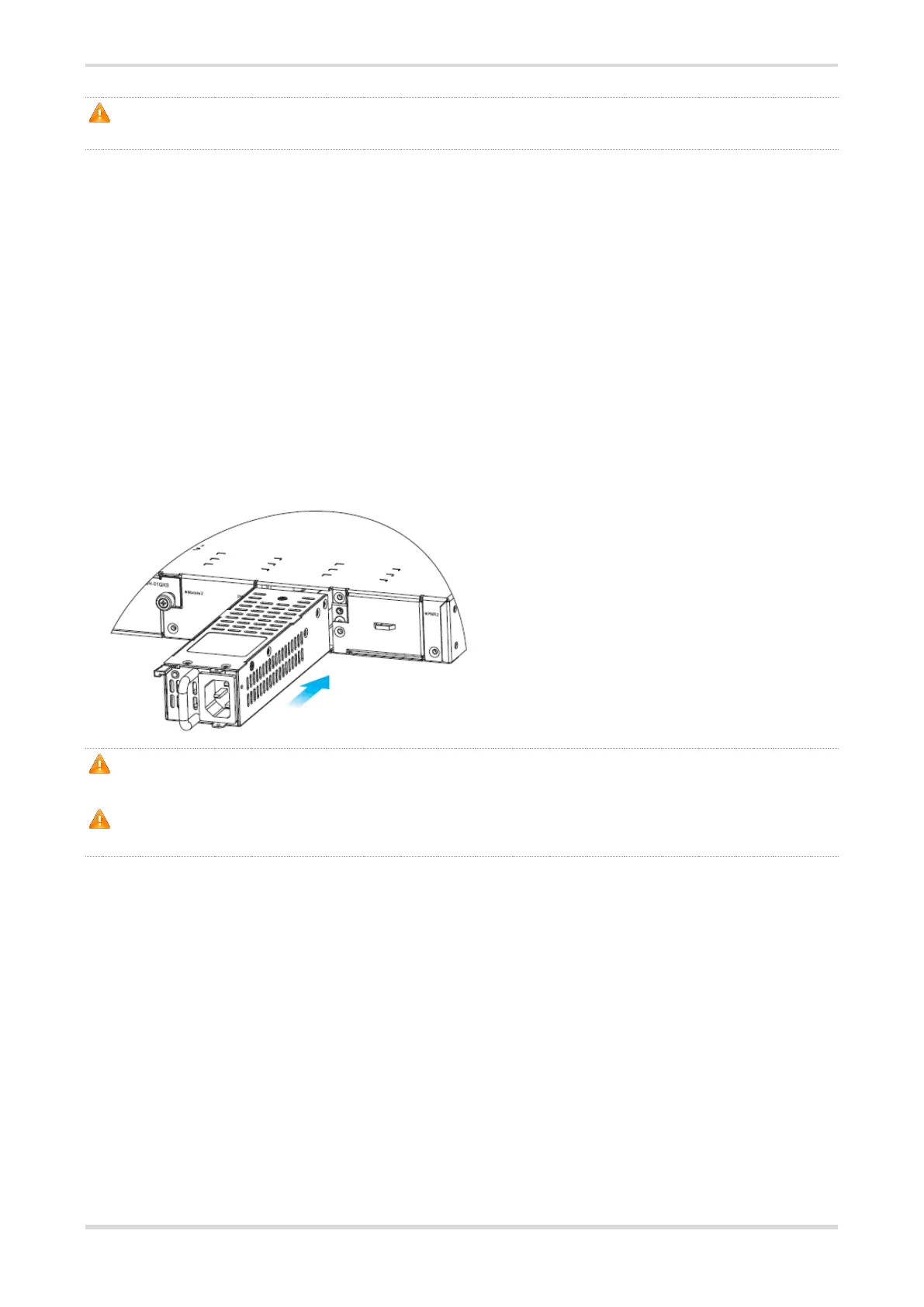

Figure 3-5 Installing a Power Module
Insert the power module smoothly. Please pay attention to the direction of the power panel to avoid
wrong insertion.
If it is difficult or even impossible to insert the module, pull out the module, make sure the
expansion module and guide rail are well aligned, and then insert the module again.
Removing an RG-PA70I or RG-PA150I-F Power Module
Step 1: Press the plug of the power module, Hold on to the module handle with one hand to pull out
part of the module, hold the bottom of it with the other hand, and pull out the power module uprightly
and slowly.
Step 2: Install a baffle in the power module slot and put the removed power module into its package.
Figure 3-6 Removing a Power Module
