Hardware Installation and Reference Guide Product Installation
51
Insert the power module smoothly. Please pay attention to the direction of the power panel to avoid
wrong insertion.
If it is difficult or even impossible to insert the module, pull out the module, make sure the
expansion module and guide rail are well aligned, and then insert the module again.
Removing an RG-PD70I Power Module
Step 1: Press the plug of the power module, Hold on to the module handle with one hand to pull out
part of the module, hold the bottom of it with the other hand, and pull out the power module uprightly
and slowly.
Step 2: Install a baffle in the power module slot and put the removed power module into its package.

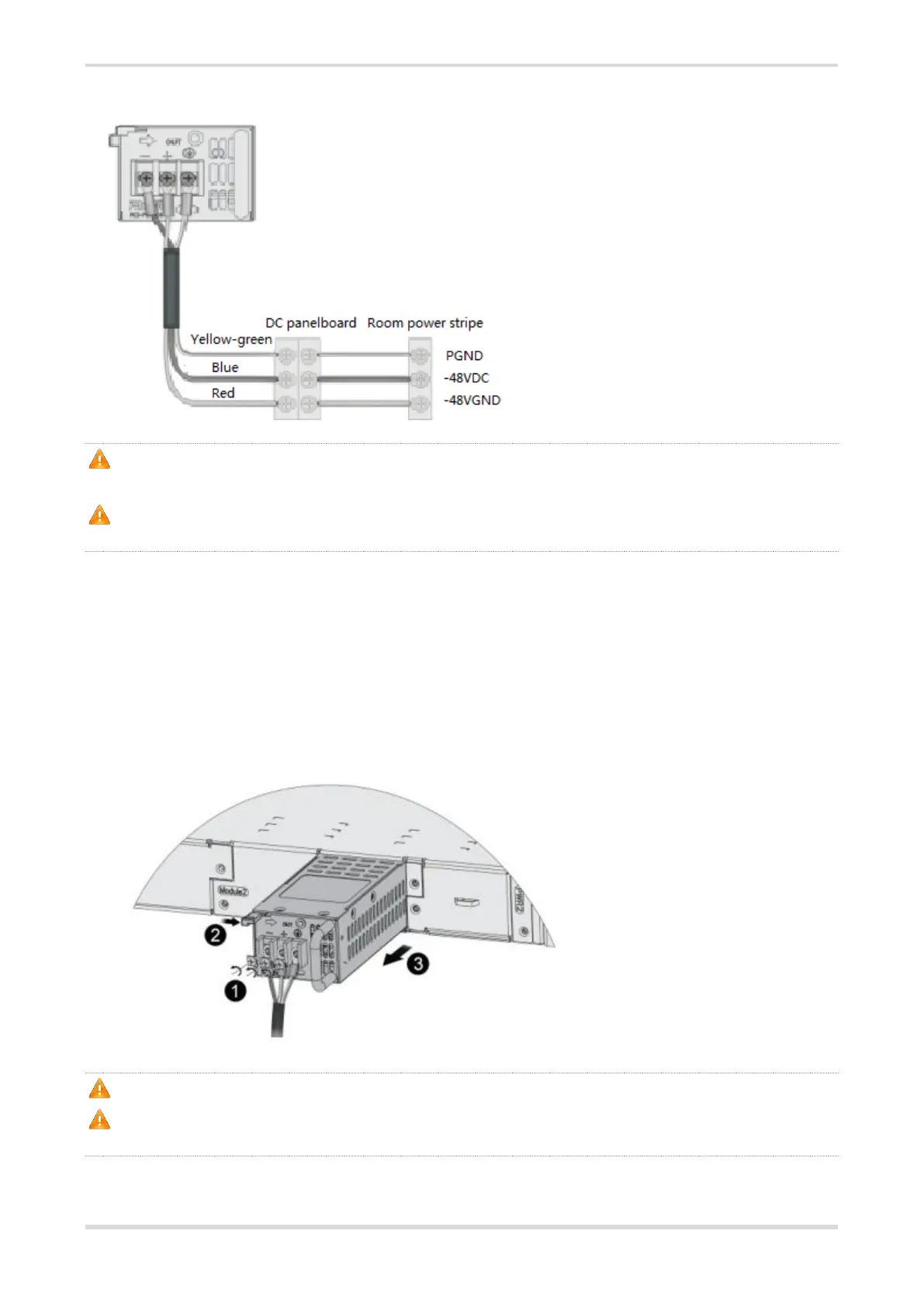

Figure 3-9 Removing a Power Module
Remove the power module uprightly and slowly.
Install a baffle in the location where the power module is removed to ensure the normal ventilation
and dissipation and avoid the dust in the chassis.
Installing RG-M5000E-DC500P
