Russound ACA-E5 Installation Manual
19
USB AND ETHERNET PORTS

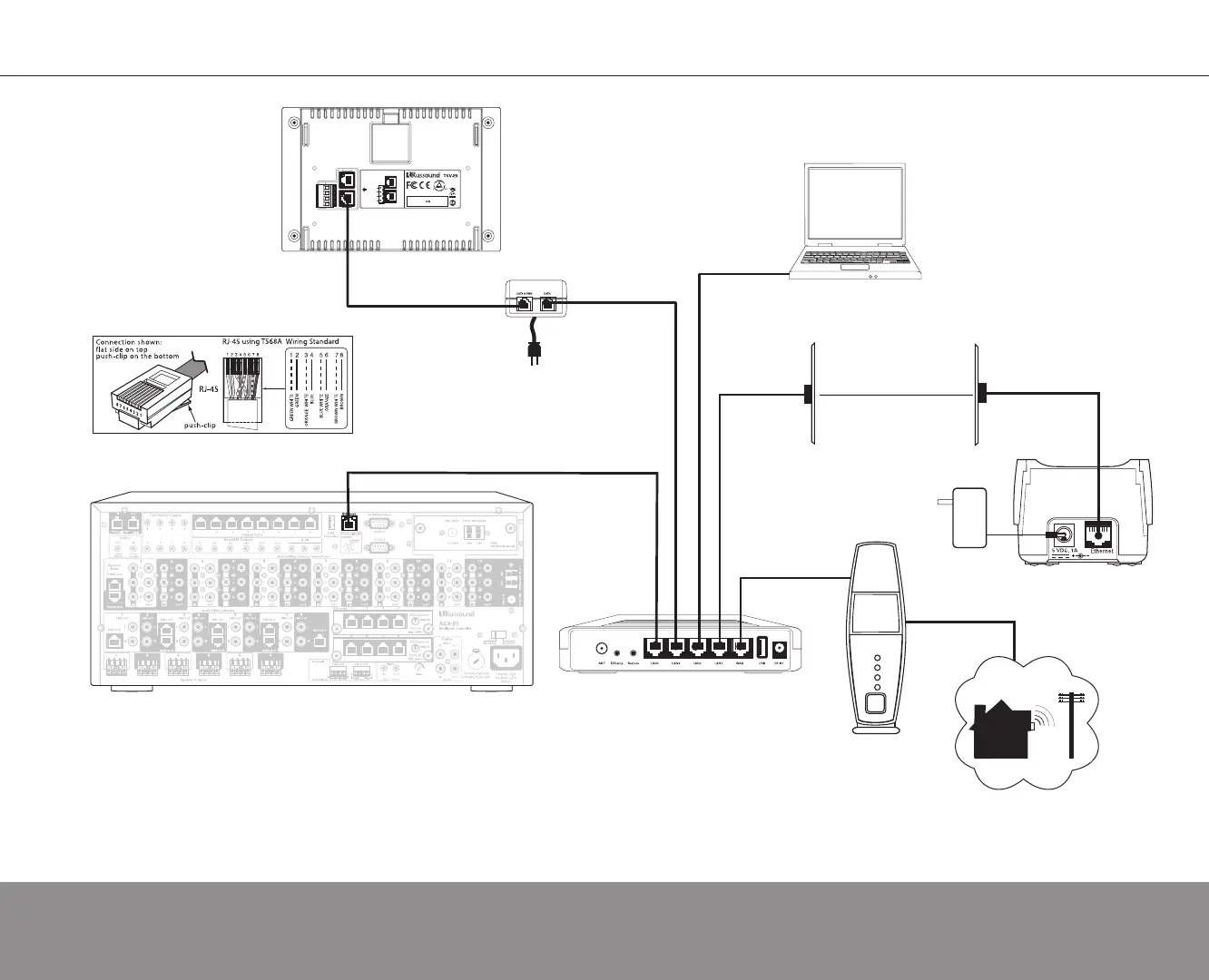

ACA-E5 controller with network connection through the Ethernet port
(Showing typical connection with TSV-E5 touchscreen and RFR-E5 cradle)
Required DHCP router
with NAT/firewall
CAT-5 cable
CAT-5 cable
CAT-5 cable
ACA-E5 controller
RFR-E5 Cradle
RJ45 wall plates
(Ethernet connection)
Cable or
DSL Modem
INTERNET
Power
supply
Computer
CAT-5e Cable
TSV-E5 Touchscreen
PoE Power Supply
STATUS
SIGNAL
GND
+12V
IR
Receiver
Ethernet/Power
IR Passthrough
Made in China
RJ45 patch cable
