Russound ACA-E5 Installation Manual

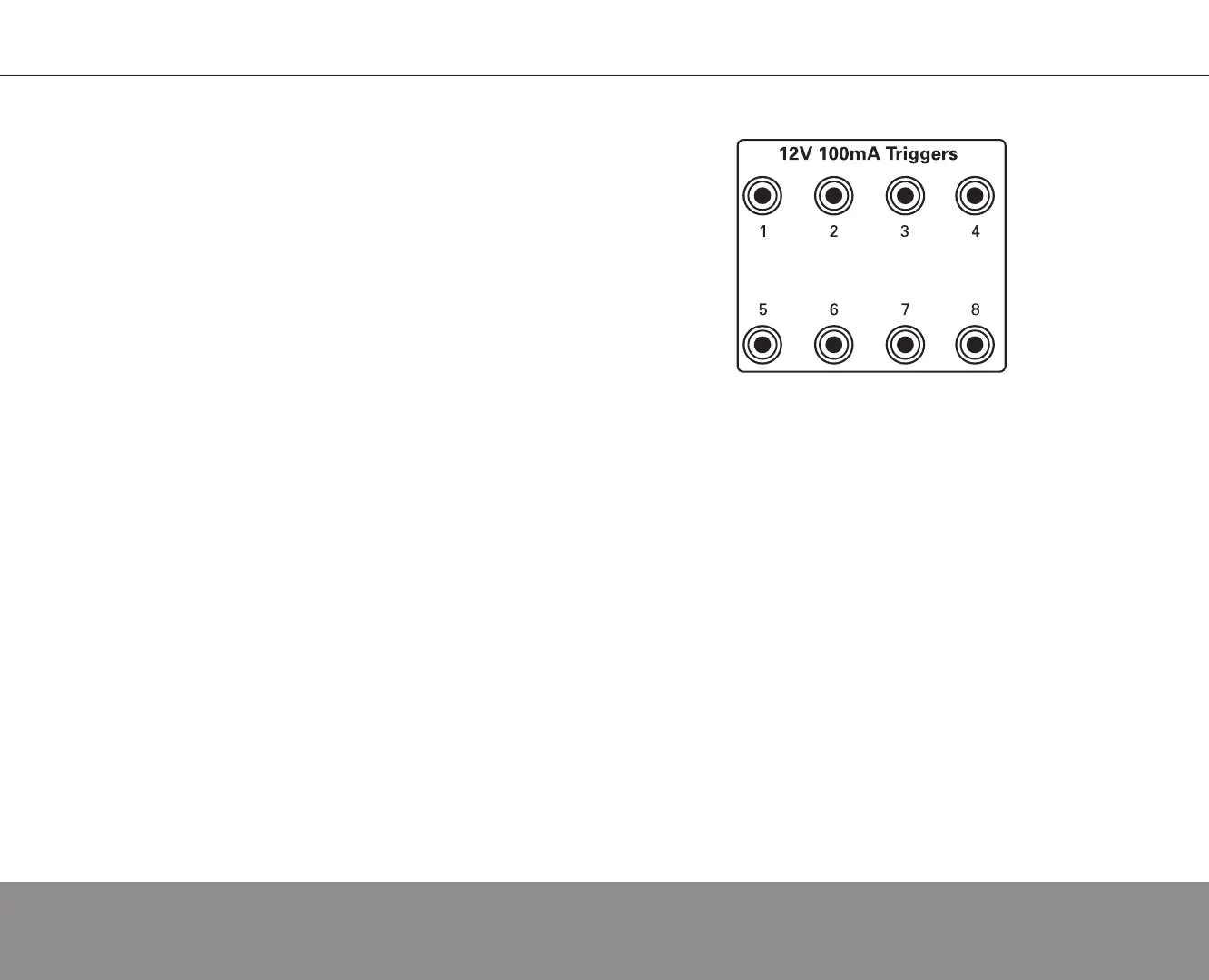

12VDC TRIGGER OUTPUTS
ZONE 12VDC TRIGGER OUTPUTS
There are eight zone 12VDC Triggers which are located next to Keypad
Ports. The 1/8” mini jack goes to 12 volts 100mA when the corresponding
zone is turned on and disengaged when the zone is turned off.
The trigger can be used to engage any 12VDC trigger device or component
such as the Russound R235LS amplifier. The connections for the trigger
outputs are made using a two-conductor cable with 1/8” male mini-plug jacks
at each end. The tip is positive (+) and sleeve is negative (-).
