Russound Sphere E Series - Remote Source Input Connections

Russound ACA-E5 Installation Manual
31
SOURCE INPUT AND RNET A/V
RJ-45 wall plate
RJ-45 wall plate
CAT-5 cable
(up to 250 feet)
Power supply
BDG1 iBridge Dock
iPod

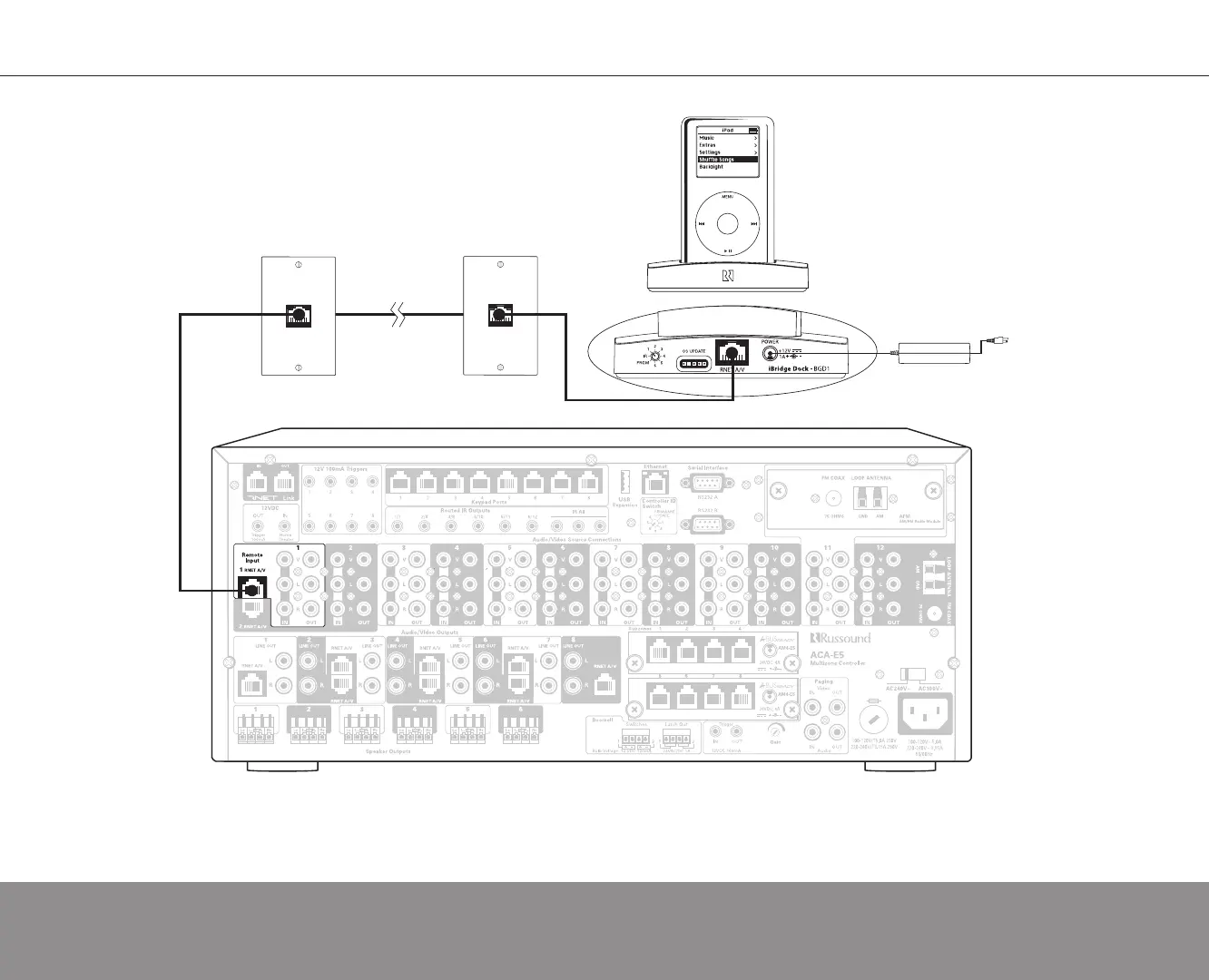

ACA-E5 controller with iBridge Dock connected through RNET A/V remote input
